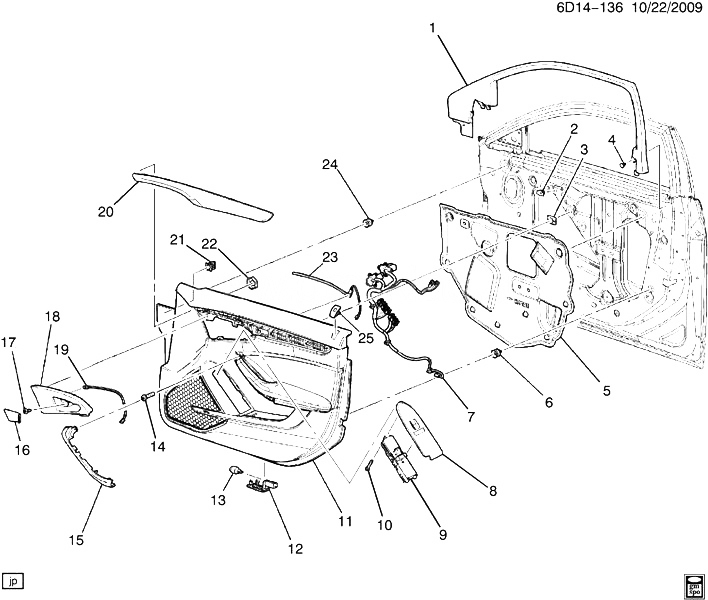

(6D14-136) 2010-2013 DM69 ОТДЕЛКА ПЕРЕДНЕЙ ДВЕРИ ПАССАЖИРА (LAMP PACKAGE TSQ, EXC LOCK CONTROL ATH) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
011 22815898 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AD, 4AM) (EXC UTT, 2A5, 2CK) 2012-2013 01
011 22815899 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (CASHMERE) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AE, 2A5, 4AC) (EXC UTT) 2012-2013 01
011 22815900 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AD, 2A5, 4AM) (EXC UTT) 2011-2013 01
011 22815901 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (CASHMERE) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AE, 4AC) (EXC ATH, 2A5) 2011-2013 01
011 22815902 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AD, 4AM) (EXC ATH, 2A5, 2CK) 2011-2013 01
011 22815903 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (CASHMERE) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AE, 2A5, 4AC) (EXC ATH) 2012-2013 01
011 22815904 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AD, 2A5, 4AM) (EXC ATH) 2012-2013 01
011 22846415 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AH, 2CK, 4AL) (EXC UTT) 2012-2013 01
011 22846416 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AH, 2CK, 4AL) (EXC ATH) 2012-2013 01
011 22846417 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AD, 2CK, 4AM) (EXC UTT) 2012-2013 01
011 22846418 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (TITANIUM) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AD, 2CK, 4AM) (EXC ATH) 2012-2013 01
012 10359030 LAMP, CTSY (S/D LAMP) (INCLS 13) (PART OF 11) D 2009-2013 01
013 19115808 BULB, FRT S/D C/LP (PART OF 11, 12) (8.991) (ACDelco #19115808) D 2009-2013 02
014 03539184 BOLT, FRT S/D PULL HDL (14.683) D35-69 2010-2013 04
015 25927094 CAP, FRT S/D PULL HDL BOLT (EBONY) DM35-69 (4AL) 2010-2013 01
015 25927098 CAP, FRT S/D PULL HDL BOLT (CASHMERE) DM35-69 (4AC) 2010-2013 01
015 25927110 CAP, FRT S/D PULL HDL BOLT (TITANIUM) DM35-69 (4AM) 2010-2013 01
016 15871924 COVER, FRT S/D PULL HDL (EBONY) DM35-69 (4AL) 2010-2012 01
016 15871928 COVER, FRT S/D PULL HDL (CASHMERE) DM35-69 (4AC) 2010-2013 01
016 25914600 COVER, FRT S/D PULL HDL (TITANIUM) DM35-69 (4AM) 2010-2013 01
017 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) 2009-2013 01
018 BEZEL, FRT S/D I/S HDL (PART OF 11) 2010-2013
019 25856525 LAMP, FRT S/D WRNG (PART OF 11) (LED PIN SPOT) D69 2009-2013 02
001 22739168 MOLDING, FRT S/D GARN (INCLS 4) (EBONY) DM35-69 2010-2013 01
002 11570654 NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) D69 2009-2013 02
003 20310739 NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D35-69 2010-2013 04
004 20699808 RETAINER, FRT S/D G/MLDG (PUSH IN) (PART OF 1) (BLACK) (12.0MM) (X-MAS TREE) (14.875) D69 2009-2013 04
005 20794761 DEFLECTOR, FRT S/D WAT DM35-69 2010-2013 01
006 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 11) 2009-2013 05
007 20845897 HARNESS, FRT S/D WRG (PART OF 11) DM35-69 (DL7, TSQ) 2010-2013 01
007 20845898 HARNESS, FRT S/D WRG (PART OF 11) DM35-69 (DR5, TSQ) 2010-2013 01
008 15867896 BEZEL, FRT S/D WDO SW (PART OF 11) (EBONY) DM (4AL) 2011-2013 01
008 15867898 BEZEL, FRT S/D WDO SW (PART OF 11) (CASHMERE) DM35-47-69 (4AC) 2011-2013 01
008 25920928 BEZEL, FRT S/D WDO SW (PART OF 11) (LT TITANIUM) DM, DN (4AM) 2011-2013 01
009 22810051 SWITCH, DR LK SI WDO (PART OF 11) (ARGENT) DM35-69 (A45, 1AH, DR5, DR5, FBL) (EXC ATH) 2010-2013 01
009 22810051 SWITCH, DR LK SI WDO (PART OF 11) (ARGENT) (10.485) DM35-69 (A45, 1AH, DR5, DR5, FBL) (EXC ATH) 2010-2013 01
009 22810051 SWITCH, DR LK SI WDO (PART OF 11) (ARGENT) DM35-69 (ATG, DL7, FBL) 2010-2013 01
009 22810051 SWITCH, DR LK SI WDO (PART OF 11) (ARGENT) (10.485) DM35-69 (ATG, DL7, FBL) 2010-2013 01
010 11561274 BOLT, FRT S/D WDO SW (PART OF 11) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) D 2010-2013 03
011 22815881 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AH, 2A5, 4AL) (EXC UTT) 2012-2013 01
011 22815883 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AH, 4AL) (EXC UTT, 2A5, 2CK) 2012-2013 01
011 22815885 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AH, 2A5, 4AL) (EXC ATH) 2012-2013 01
011 22815886 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (EBONY) (MECH LATCH) DM35-69 (DR5, FBL, TSQ, 1AH, 4AL) (EXC ATH, 2A5, 2CK) 2012-2013 01
011 22815897 TRIM, FRT S/D (INCLS 6-10, 12, 13, 18-25) (CASHMERE) (MECH LATCH) DM35-69 (ATG, DL7, FBL, TSQ, 1AE, 4AC) (EXC UTT, 2A5) 2011-2013 01
020 15243589 APPLIQUE, FRT S/D TR FIN PNL (PART OF 11) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) D35-69 2010-2013 01
021 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 11) 2009-2013 01
022 11503417 NUT, M6.3 STMPD TYPE SR ZC (PART OF 11) 2009-2013 04
023 15243683 LAMP, FRT S/D WRNG (PART OF 11) (FRT LIGHT PIPE) D69 2009-2013 01
024 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 11) 2009-2013 03
025 20860948 BEZEL, FRT S/D LKG ROD P/BUT (PART OF 11) (CASHMERE) DM35-69 (DR5, FBL, TSQ, 1AE, 4AC) (EXC ATH, 2A5) 2012-2013 01
