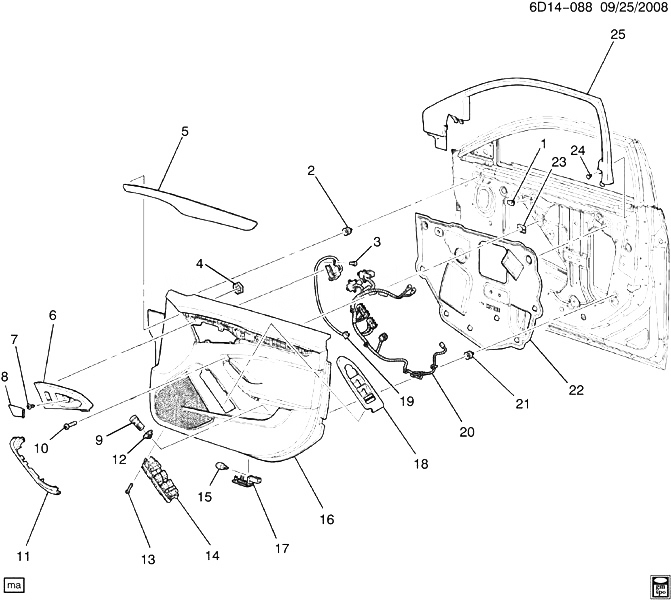

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11570654 |
NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
D69 |
2009-2013 |
02 |
| 002 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 16) |
|
2009-2013 |
03 |
| 003 |
11610093 |
BOLT, HEX WASHER HEAD, M7X1.0X20.0, GM6202M STL, GMW3200 (PART OF 16) |
|
2009-2013 |
AR |
| 004 |
11503417 |
NUT, M6.3 STMPD TYPE SR ZC (PART OF 16) |
|
2009-2013 |
04 |
| 005 |
15243589 |
APPLIQUE, FRT S/D TR FIN PNL (PART OF 16) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) |
D35-69 |
2010-2013 |
01 |
| 006 |
|
BEZEL, FRT S/D I/S HDL (PART OF 16) |
|
2011-2013 |
|
| 007 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) |
|
2009-2013 |
01 |
| 008 |
15871924 |
COVER, FRT S/D PULL HDL (EBONY) |
DR35-69 (4AL) (EXPORT) |
2010-2012 |
01 |
| 008 |
15871928 |
COVER, FRT S/D PULL HDL (CASHMERE) |
DR35-69 (4AC) (EXPORT) |
2010-2013 |
01 |
| 008 |
25914600 |
COVER, FRT S/D PULL HDL (TITANIUM) |
DR35-69 (4AM) (EXPORT) |
2010-2013 |
01 |
| 008 |
15871924 |
COVER, FRT S/D PULL HDL (EBONY) |
DR35-69 (4AL) (EXPORT) |
2010-2012 |
01 |
| 009 |
25796933 |
SWITCH, R/CMPT LID REL (PART OF 16) (ARGENT) (INTERIOR MOUNTED ON DOOR) (ACDelco #D1417G) |
DR69 (EXPORT) |
2009-2013 |
01 |
| 010 |
03539184 |
BOLT, FRT S/D PULL HDL (14.683) |
D35-69 |
2010-2013 |
04 |
| 011 |
25927094 |
CAP, FRT S/D PULL HDL BOLT (EBONY) |
DR35-69 (4AL) (EXPORT) |
2010-2013 |
01 |
| 011 |
25927098 |
CAP, FRT S/D PULL HDL BOLT (CASHMERE) |
DR35-69 (4AC) (EXPORT) |
2010-2013 |
01 |
| 011 |
25927110 |
CAP, FRT S/D PULL HDL BOLT (TITANIUM) |
DR35-69 (4AM) (EXPORT) |
2010-2013 |
01 |
| 012 |
15867905 |
BEZEL, R/CMPT LID REL SW (PART OF 16) (EBONY) |
D69 (4AL) |
2010-2013 |
01 |
| 012 |
15867907 |
BEZEL, R/CMPT LID REL SW (PART OF 16) (CASHMERE) |
D47-69 (4AC) |
2011-2012 |
01 |
| 013 |
11561274 |
BOLT, FRT S/D WDO SW (PART OF 16) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) |
D |
2010-2013 |
03 |
| 014 |
22810049 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (LABELED 22810049) |
DR35-69 (D26, FBL) (EXPORT) |
2012-2012 |
01 |
| 014 |
22810049 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (10.485) (LABELED 22810049) |
DR35-69 (D26, FBL) (EXPORT) |
2012-2012 |
01 |
| 014 |
25970547 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (LABELED 25970547) |
DR35-69 (D26, FBL) (EXPORT) |
2012-2012 |
01 |
| 014 |
25970547 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (10.485) (LABELED 25970547) |
DR35-69 (D26, FBL) (EXPORT) |
2012-2012 |
01 |
| 015 |
19115808 |
BULB, FRT S/D C/LP (PART OF 17, 16) (8.991) (ACDelco #19115808) |
D |
2009-2013 |
02 |
| 016 |
22815824 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (EBONY) |
DR69 (A45, D26, FBL, 1AH, 2A5, 4AL) (EXC TSQ) (EXPORT) |
2012-2013 |
01 |
| 016 |
22815825 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (TITANIUM) |
DR69 (A45, D26, FBL, 1AD, 2A5, 4AM) (EXC TSQ) (EXPORT) |
2012-2013 |
01 |
| 016 |
22815826 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (CASHMERE) |
DR69 (A45, D26, FBL, 1AE, 2A5, 4AC) (EXC TSQ) (EXPORT) |
2012-2013 |
01 |
| 016 |
22815827 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (EBONY) |
DR69 (A45, D26, FBL, 1AH, 4AL) (EXC TSQ, 2A5) (EXPORT) |
2012-2013 |
01 |
| 016 |
22815828 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (TITANIUM) |
DR69 (A45, D26, FBL, 1AD, 4AM) (EXC TSQ, 2A5) (EXPORT) |
2012-2013 |
01 |
| 016 |
22815829 |
TRIM, FRT S/D (INCLS 2-6, 9, 12-15, 17-21) (CASHMERE) |
DR69 (A45, D26, FBL, 1AE, 4AC) (EXC TSQ, 2A5) (EXPORT) |
2012-2013 |
01 |
| 017 |
10359030 |
LAMP, CTSY (S/D LAMP) (INCLS 15) (PART OF 16) |
D69 |
2009-2013 |
04 |
| 018 |
15867899 |
BEZEL, FRT S/D WDO SW (PART OF 16) (EBONY) |
DR35-69 (D26, 4AL) (EXPORT) |
2010-2013 |
01 |
| 018 |
15867901 |
BEZEL, FRT S/D WDO SW (PART OF 16) (CASHMERE) |
DR35-69 (D26, 4AC) (EXPORT) |
2010-2013 |
01 |
| 019 |
25898136 |
SWITCH, D/SEAT ADJR MEMORY (PART OF 16) (ARGENT) |
DR35-69 (A45) (EXPORT) |
2011-2013 |
01 |
| 020 |
20845896 |
HARNESS, FRT S/D WRG (PART OF 16) |
DR35-69 (D26, FBL, 2A5) (EXC TSQ) (EXPORT) |
2010-2013 |
01 |
| 020 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 16) |
DR69 (A45, D26, FBL) (EXC TSQ) (EXPORT) |
2010-2013 |
01 |
| 020 |
20845896 |
HARNESS, FRT S/D WRG (PART OF 16) |
DR35-69 (D26, FBL) (EXC TSQ, 2A5) (EXPORT) |
2010-2013 |
01 |
| 021 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 16) |
|
2009-2013 |
05 |
| 022 |
20794761 |
DEFLECTOR, FRT S/D WAT |
DR (EXPORT) |
2010-2013 |
01 |
| 023 |
20310739 |
NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) |
D35-69 |
2010-2013 |
04 |
| 024 |
20699808 |
RETAINER, FRT S/D G/MLDG (PUSH IN) (PART OF 25) (BLACK) (12.0MM) (X-MAS TREE) (14.875) |
D69 |
2009-2013 |
04 |
| 025 |
22739168 |
MOLDING, FRT S/D GARN (INCLS 24) (EBONY) |
DR35-69 (EXPORT) |
2010-2013 |
01 |
