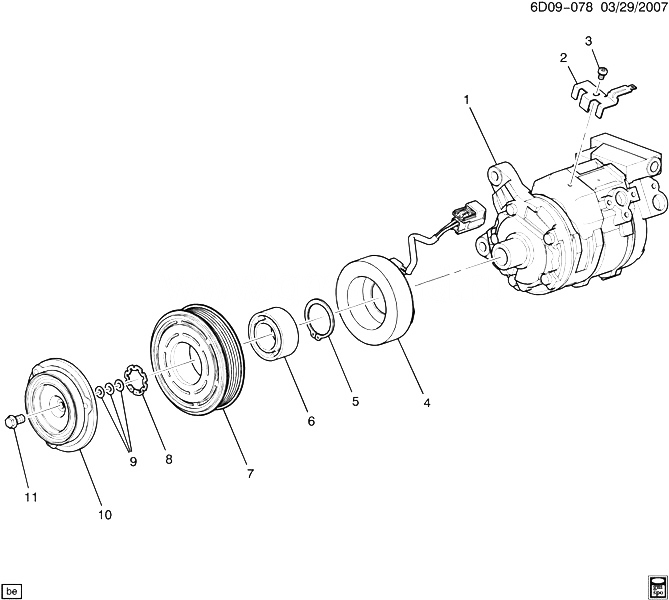

(6D09-078) 2012-2013 DM,DR35-69 КОМПРЕССОР КОНДИЦИОНЕРА В СБОРЕ (LFW/3.0-5,LFX/3.6-3) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25865635 COMPRESSOR KIT, A/C (INCLS 2-11) (ACDelco #15-21685) DM 2008-2013 01
001 25865635 COMPRESSOR KIT, A/C (INCLS 2-11) (ACDelco #15-21685) DR (EXPORT) 2009-2013 01
002 BRACKET, A/C CMPR (PART OF 1, 10) 2012-2013
003 BOLT, A/C CMPR BRKT (PART OF 1, 10) 2012-2013
004 COIL, A/C CLU (PART OF 1, 10) 2012-2013
005 RING, A/C CLU COIL RET (PART OF 1, 10) 2012-2013
006 BEARING, A/C CMPR PUL (PART OF 1, 10) 2012-2013
007 PULLEY, A/C CMPR (PART OF 1, 10) 2012-2013
008 RING, A/C CMPR PUL BRG RET (PART OF 1, 10) 2012-2013
009 WASHER, A/C CMPR PUL (PART OF 1, 10) 2012-2013
010 25865636 CLUTCH KIT, A/C (PART OF 1) (INCLS 2-9, 11) (ACDelco #15-40145) DM 2008-2013 01
010 25865636 CLUTCH KIT, A/C (PART OF 1) (INCLS 2-9, 11) (ACDelco #15-40145) DR (EXPORT) 2009-2013 01
011 11561365 BOLT, A/C CMPR PUL (PART OF 1, 10) DM 2008-2013 01
011 11561365 BOLT, A/C CMPR PUL (PART OF 1, 10) DR (EXPORT) 2009-2013 01
