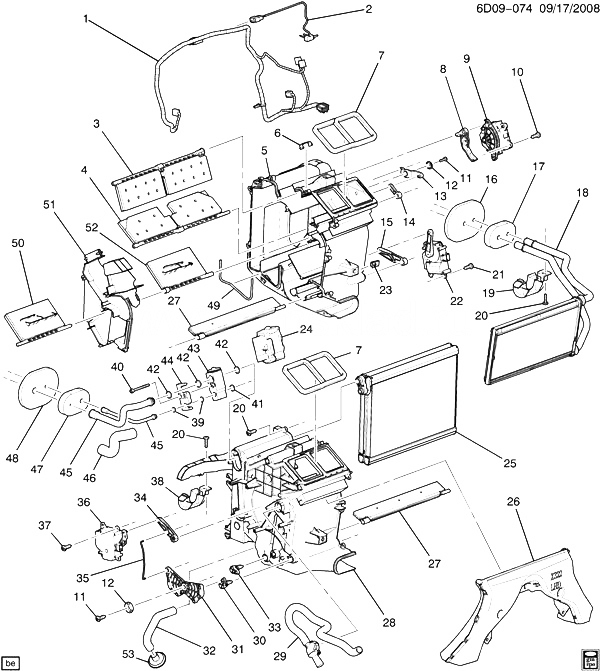

(6D09-074) 2009-2013 DM,DN БЛОК КОНДИЦИОНЕРА И ОБОГРЕВАТЕЛЯ В СБОРЕ CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25995750 HARNESS, HTR A/C CONT WRG DM, DN 2010-2013 01
002 15939656 THERMISTOR, DRV MOT AIR INL TEMP DM, DN 2010-2013 01
003 25852678 VALVE, DEFR (ACDelco #15-50804) DM, DN 2010-2013 01
004 25852677 VALVE, VENT (ACDelco #15-50803) DM, DN 2010-2013 01
005 25852757 CASE, AIR DISTR DM 2008-2013 01
005 25852757 CASE, AIR DISTR DN 2009-2013 01
006 15266665 CLIP, A/C EVPR CASE (9.215) DM 2008-2013 01
006 15266665 CLIP, A/C EVPR CASE (9.215) DN 2009-2013 01
007 SEAL, AIR DISTR (*KIT2) 2009-2013
008 LEVER, HTR A/C CONT MODE (*KIT3) 2009-2013
009 15939657 ACTUATOR, MODE VLV (ACDelco #15-73816) DM 2008-2013 01
009 15939657 ACTUATOR, MODE VLV (ACDelco #15-73816) DN 2009-2013 01
010 25770699 BOLT, MODE VLV ACTR (M4X141X16) (SCREW-PAN HEAD C/R) DM, DN 2010-2013 03
011 25781502 BOLT, MODE CONT CAM ACTR (*KIT3) (9.278) DM, DN 2010-2013 01
012 25781502 BOLT, MODE CONT CAM ACTR (*KIT1) (9.278) DM, DN 2010-2013 01
013 LEVER, HTR A/C CONT MODE (*KIT3) 2009-2013
014 LEVER, VENT VLV (*KIT3) 2009-2013
015 25852683 LEVER, HTR A/C CONT TEMP DM, DN 2010-2013 01
016 INSULATOR, HTR A/C CONT (*KIT2) 2009-2013
017 INSULATOR, HTR A/C CONT (*KIT2) 2009-2013
018 89022548 CORE, HTR (ACDelco #15-63063) DM 2008-2013 01
018 89022548 CORE, HTR (ACDelco #15-63063) DN 2009-2013 01
019 25852758 BRACKET, HTR CORE TUBE DN 2009-2013 01
019 25852758 BRACKET, HTR CORE TUBE DM 2008-2013 01
020 25770699 BOLT, HTR A/C EVPR MDL (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DM 2008-2013 09
020 25770699 BOLT, HTR A/C EVPR MDL (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DN 2009-2013 09
021 25770699 BOLT, HTR A/C CONT TEMP CAM GROM (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DM 2008-2013 01
021 25770699 BOLT, HTR A/C CONT TEMP CAM GROM (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DN 2009-2013 01
022 89023390 ACTUATOR, TEMP VLV (PASSENGER SIDE) (ACDelco #15-73024) D 2008-2013 01
023 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (HTR CONT (PUSH IN)) 2008-2013 04
024 INSULATOR, A/C EVPR TXV (*KIT2) 2009-2013
025 25865640 EVAPORATOR KIT, A/C (ACDelco #15-63550) DM 2008-2013 01
025 25865640 EVAPORATOR KIT, A/C (ACDelco #15-63550) DN 2009-2013 01
026 25781505 DUCT, FLR FRT AIR OTLT DM 2008-2013 01
026 25781505 DUCT, FLR FRT AIR OTLT DN 2009-2013 01
027 25852681 VALVE, MIXER (REAR) D 2008-2013 02
028 25852756 CASE, AIR DISTR DM 2008-2013 01
028 25852756 CASE, AIR DISTR DN 2009-2013 01
029 89023392 ASPIRATOR, I/S AIR TEMP SEN (ACDelco #89023392) DM 2008-2013 01
029 89023392 ASPIRATOR, I/S AIR TEMP SEN (ACDelco #89023392) DN 2009-2013 01
030 25781504 LEVER, HTR A/C CONT TEMP (BLACK) D 2008-2013 01
031 CAM, HTR A/C CONT TEMP (*KIT1) 2009-2013
032 25740400 HOSE, A/C EVPR BLO MDL DRN D 2008-2013 01
033 25781503 LEVER, HTR A/C CONT TEMP (NATURAL) D 2008-2013 01
034 25852682 LEVER, HTR A/C CONT TEMP DM, DN 2010-2013 01
035 ROD, HTR A/C CONT TEMP (*KIT1) 2009-2013
036 ACTUATOR, TEMP VLV (*KIT1) 2009-2013
037 25770699 BOLT, TEMP VLV ACTR (M4X141X16) (SCREW-PAN HEAD C/R) DM 2008-2013 04
037 25770699 BOLT, TEMP VLV ACTR (M4X141X16) (SCREW-PAN HEAD C/R) DN 2009-2013 04
038 25852778 CLAMP, A/C EVPR CASE DM 2008-2013 01
038 25852778 CLAMP, A/C EVPR CASE DN 2009-2013 01
039 SEAL, A/C EVPR TXV (O RING) (PART OF 43, 45) 2009-2013
040 BOLT, A/C EVPR TXV (PART OF 43) 2009-2013
041 SEAL, A/C EVPR TXV (O RING) (PART OF 43) 2009-2013
042 SEAL, A/C EVPR TXV (O RING) (PART OF 43, 45) 2009-2013
043 19129999 VALVE KIT, A/C EVPR THERMAL EXPN (INCLS 39-42, 44) (ACDelco #15-50697) D 2008-2013 01
044 ATTACHMENT KIT, A/C EVPR TXV (PART OF 43) 2009-2013
045 19130000 TUBE KIT, A/C EVPR TXV (INCLS 39, 42, 46) (ACDelco #15-33518) D 2008-2013 01
046 INSULATOR, A/C EVPR TXV TUBE (PART OF 45) 2009-2013
047 INSULATOR, HTR A/C CONT (*KIT2) 2009-2013
048 INSULATOR, HTR A/C CONT (*KIT2) 2009-2013
049 SEAL, HTR CORE CASE (*KIT2) 2009-2013
050 25852761 VALVE, MIXER DM 2008-2013 01
050 25852761 VALVE, MIXER DN 2009-2013 01
051 25852674 CASE, AIR DISTR (CENTER) DM 2008-2013 01
051 25852674 CASE, AIR DISTR (CENTER) DN 2009-2013 01
052 25852763 VALVE, MIXER DM 2008-2013 01
052 25852763 VALVE, MIXER DN 2009-2013 01
053 25874761 DRAIN, A/C EVPR BLO CASE (ACDelco #15-81091) DM 2008-2013 01
053 25874761 DRAIN, A/C EVPR BLO CASE (ACDelco #15-81091) DN 2009-2013 01
K01 25865637 CAM KIT, HTR A/C CONT (INCLS 12, 31, 35, 36) (ACDelco #15-73848) DM, DN 2010-2013 01
K02 25865639 SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 7, 16, 17, 24, 47-49) (ACDelco #15-33844) DM 2010-2013 01
K02 25865639 SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 7, 16, 17, 24, 47-49) (ACDelco #15-33844) DN 2010-2013 01
K03 25865638 LEVER KIT, HTR A/C CONT MODE (INCLS 8, 11, 13, 14) (ACDelco #15-73849) D 2008-2013 01
