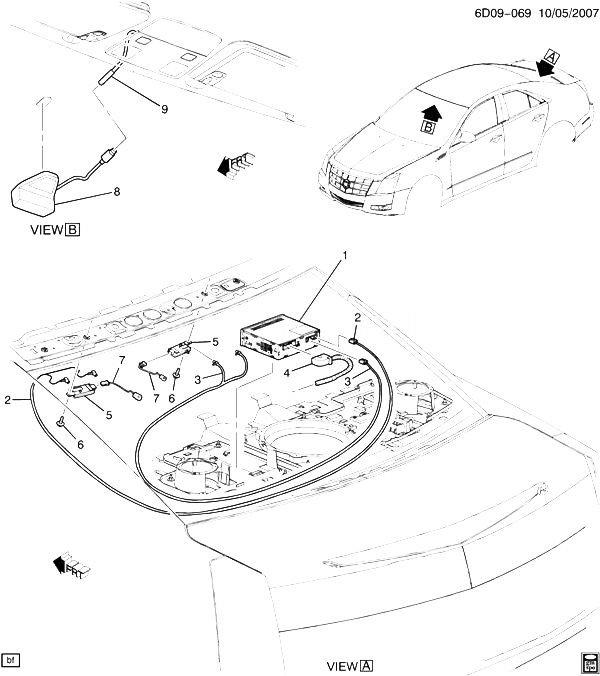

(6D09-069) 2009-2013 DM,DN,DR69 ИНФОРМАЦИОННО-РАЗВЛЕКАТЕЛЬНАЯ СИСТЕМА (U2X,U2Y) CADILLAC - CTS SEDAN 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 004 | HARNESS, BODY WRG (INCLS 2, 3) (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) | 2009-2013 | |||
| 006 | 11588337 | BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TV ANT MDL) | 2009-2013 | 04 | |
| 008 | 15226443 | ANTENNA, NAVIGATION TRAFFIC DATA (VICS) | D35-47-69 (U2X) | 2011-2013 | 01 |
| 009 | HARNESS, W/S HDR WRG (SEE GROUP 14.000 ROOF HEADLINER FOR DETAILED ILLUSTRATED VIEW) | 2009-2013 |
