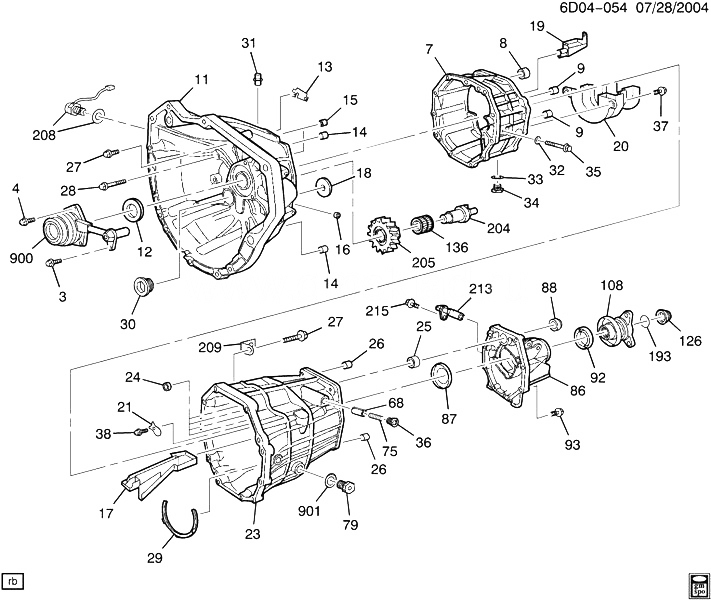

(6D04-054) 2012 DM69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 2 (MV7) CASE COMPONENTS CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 89058852 BOLT, CLU ACTR (M6X1.0X20) DM (LF1, LLT, MV7, JJB) 2010-2012 01
004 89048559 BOLT, CLU ACTR (M8X1.25X20) (4.104) DM (LF1, LLT, MV7, JJB) 2010-2012 03
007 89058759 CASE, TRANS INTER (INCLS 8, 9) DM (MV7) 2008-2012 01
008 89058774 BEARING, SHFT CONT SHF (PART OF 7) (4.408) (ACDelco #89058774) DM (MV7) 2008-2012 01
009 89058791 PIN, TRANS INTER CASE LOC (PART OF 7) DM (MV7) 2010-2012 02
011 89058758 CASE, TRANS FRT (INCLS 12-16) DM (MV7) 2010-2012 01
012 89058833 SEAL, MAIN SHF (PART OF 11) (ACDelco #89058833) DM (MV7) 2010-2012 01
013 SHIELD, INPUT SHF BRG OIL (PART OF 11) 2012-2012
014 89058791 PIN, TRANS INTER CASE LOC (PART OF 11) DM (MV7) 2010-2012 02
015 89059311 PIN, TRANS CASE LOC (PART OF 11) DM (MV7) 2010-2012 02
016 89059312 PLUG, TRANS CASE HOLE (PART OF 11) DM (MV7) 2008-2012 01
019 89058839 TROUGH, M/TRNS OIL DM (MV7) 2010-2012 01
020 89058840 TROUGH, TRANS INTER CASE OIL DM (MV7) 2010-2012 01
021 89058820 RETAINER, CNTR GR BRG (4.352) DM (MV7) 2010-2012 01
023 89058760 CASE, TRANS RR (INCLS 24-26) DM (MV7) 2008-2012 01
024 BUSHING, SHFT SHF (PART OF 23) 2012-2012
025 89058774 BEARING, SHFT SHF (PART OF 23) (ACDelco #89058774) DM (MV7) 2010-2012 01
025 89059316 BEARING, SHFT SHF (PART OF 23) DM (MV7) 2010-2012 01
026 89058791 PIN, TRANS INTER CASE LOC (PART OF 23) DM (MV7) 2010-2012 02
029 89059319 GASKET, TRANS RR CASE DM (MV7) 2010-2012 01
030 89058843 PLUG, CLU HSG HOLE DM (MV7) 2008-2012 01
031 89059313 VENT, M/TRNS DM (MV7) 2008-2012 01
032 89059314 GASKET, REV IDLER GR SHF BOLT (ACDelco #89059314) DM (MV7) 2010-2012 01
033 89048245 GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) DM (MV7) 2008-2012 01
033 89048245 GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) DM (MV7) 2010-2012 01
034 19132842 PLUG, TRANS OIL DRN (4.510) DM (MV7) 2010-2012 01
035 89059315 BOLT, REV IDLER GR SHF RET DM (MV7) 2010-2012 01
036 19132971 PLUG, SHFT SHF DTNT DM (MV7) 2008-2012 01
037 89048559 BOLT, TRANS INTER CASE OIL TROUGH (M8X1.25X20) (4.104) DM (MV7) 2008-2012 02
037 89058842 BOLT, TRANS INTER CASE OIL TROUGH DM (MV7) 2010-2012 01
038 19132970 BOLT, CNTR GR BRG RET (4.307) DM (MV7) 2010-2012 01
075 92195066 SPRING, SHFT SHF DTNT (ACDelco #92195066) DM (MV7) 2011-2012 01
079 89048248 PLUG, TRANS OIL FIL (4.104) DM (MV7) 2008-2012 01
079 89048248 PLUG, TRANS OIL FIL DM (MV7) 2008-2012 01
086 89058761 EXTENSION, TRANS (INCLS 87, 88) DM (MV7) 2010-2012 01
088 19180996 SEAL, SHFT CONT SHF (PART OF 86) (ACDelco #19180996) DM (MV7) 2010-2012 01
092 89058835 SEAL, RR OUTPUT SHF (ACDelco #89058835) DM (MV7) 2010-2012 01
093 89058856 BOLT, TRANS EXTN (M8 X 1.25 X 40) DM69 (MV7) 2010-2012 08
108 89058847 FLANGE, TRANS PROP SHF DM (LFW, MV7) 2012-2012 01
126 NUT, PROP SHF TRANS FLG 2012-2012
136 89058775 BEARING, REV IDLER GR (ACDelco #89058775) DM (MV7) 2010-2012 01
193 89058836 SEAL, PROP SHF TRANS FLG FLUID (ACDelco #89058836) DM (LFW, MV7) 2012-2012 01
204 89058790 SHAFT, REV IDLER GR DM (LF1, LLT, MV7, JJB) 2010-2012 01
205 92149638 GEAR, REV IDLER DM (MV7) 2010-2012 01
208 19132844 SWITCH, B/U LP (ACDelco #D2205D) DM (LFW, MV7) 2012-2012 01
209 RETAINER, B/U LP SW 2012-2012
213 89058851 SENSOR, M/TRNS OUTPUT SPD (4.337) (ACDelco #89058851) DM (LFW, MV7) 2012-2012 01
215 BOLT, VEH SPD SEN 2012-2012
900 CYLINDER, CLU ACTR 2012-2012
901 89048245 GASKET, TRANS OIL FILL PLUG (ACDelco #89048245) DM (MV7) 2008-2012 01
