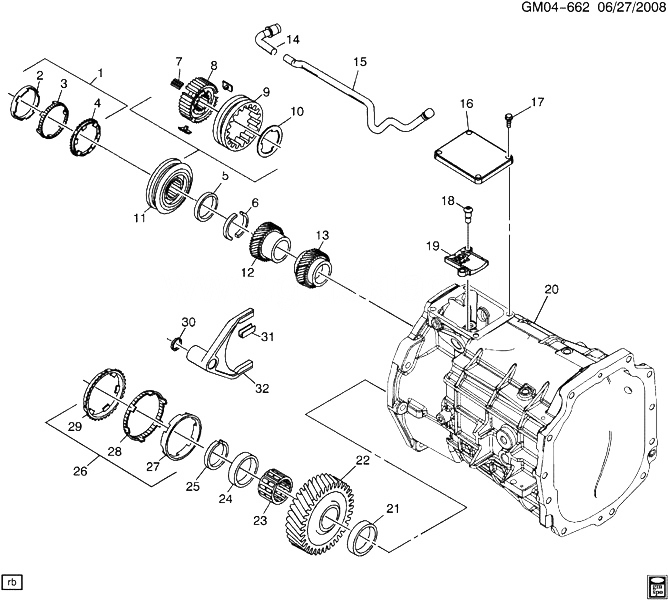

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 010 |
19178695 |
RETAINER, REV GR SYN INSERT |
DN (MG9) |
2009-2013 |
01 |
| 011 |
19260239 |
SYNCHRONIZER, REV GR (INCLS 7-9) (ACDelco #19260239) |
DN (MG9) |
2009-2013 |
01 |
| 012 |
19206231 |
GEAR, 5TH (DRVN) (ACDelco #19206231) |
DN (MG9) |
2009-2013 |
01 |
| 013 |
19206230 |
GEAR, 6TH (DRVN) (ACDelco #19206230) |
DN (MG9) |
2009-2013 |
01 |
| 014 |
|
PIPE, TRANS VENT (PART OF 15) |
|
2011-2013 |
|
| 015 |
19206216 |
PIPE, TRANS VENT (INCLS 14) (ACDelco #19206216) |
DN (MG9) |
2009-2013 |
01 |
| 016 |
89059434 |
COVER, SHFT CONT SHF |
DN (MG9) |
2009-2013 |
01 |
| 017 |
12455048 |
BOLT, SHFT CONT SHF CVR (M8X1.25) (4.307) |
DN (MG9) |
2009-2013 |
04 |
| 018 |
12523243 |
BOLT, SHFT GDE DTNT PLT (4.303) |
DN (MG9) |
2009-2013 |
02 |
| 019 |
19178664 |
PLATE, SHFT GDE DTNT (ACDelco #19178664) |
DN (MG9) |
2009-2013 |
01 |
| 020 |
19206206 |
CASE, TRANS |
DN (MG9) |
2009-2013 |
01 |
| 021 |
19206237 |
SPACER, 6TH CNTR GR |
DN (MG9) |
2009-2013 |
01 |
| 022 |
19206230 |
GEAR, 6TH (DRVN) (ACDelco #19206230) |
DN (MG9) |
2012-2013 |
01 |
| 022 |
19206233 |
GEAR, 6TH (DRV) |
DN (MG9) |
2009-2012 |
01 |
| 022 |
19250957 |
GEAR, 6TH (9.170) (ACDelco #15-22126A) (ALL MAKES) |
DN (MG9) |
2012-2012 |
01 |
| 023 |
12523247 |
BEARING, 6TH GR (4.355) (ACDelco #12523247) |
DN (MG9) |
2009-2013 |
01 |
| 024 |
19180037 |
SPACER, 6TH GR BRG |
DN (MG9) |
2009-2013 |
01 |
| 025 |
12541299 |
RING, 5TH 6TH GR SYN HUB RET (.89 I.D.) (ACDelco #12541299) |
DN (MG9) |
2009-2013 |
01 |
| 001 |
19180031 |
RING, REV GR BLOCKING (INCLS 2-4) |
DN (MG9) |
2009-2013 |
01 |
| 002 |
|
CONE, REV GR SYN (INNER) (PART OF 1) |
|
2011-2013 |
|
| 003 |
|
CONE, REV GR SYN (OUTER) (PART OF 1) |
|
2011-2013 |
|
| 004 |
|
RING, REV GR BLOCKING (PART OF 1) |
|
2011-2013 |
|
| 005 |
19180521 |
WASHER, 5TH GR THR (ENCLOSURE RING) (ENCLOSURE RING) (4.419) |
D (MG9) |
2009-2013 |
01 |
| 006 |
19180520 |
WASHER, 5TH GR THR (SPLIT WASHER) (4.419) |
D (MG9) |
2009-2013 |
01 |
| 007 |
19178694 |
SPRING, REV GR SYN (PART OF 11) (4.384) |
DN (MG9) |
2009-2012 |
03 |
| 008 |
|
HUB, REV GR (PART OF 11) |
|
2011-2013 |
|
| 009 |
|
SLEEVE, REV GR SYN (PART OF 11) |
|
2011-2013 |
|
| 026 |
19180031 |
RING, 6TH GR BLOCKING (INCLS 27-29) |
DN (MG9) |
2009-2013 |
01 |
| 027 |
|
CONE, 5TH 6TH GR SYN OTR (INNER) (PART OF 26) |
|
2011-2013 |
|
| 028 |
|
CONE, 5TH 6TH GR SYN OTR (OUTER) (PART OF 26) |
|
2011-2013 |
|
| 029 |
|
RING, 6TH GR BLOCKING (PART OF 26) |
|
2011-2013 |
|
| 030 |
12523055 |
RING, REV SHFT FORK RET (4.422) (ACDelco #12523055) |
DN (MG9) |
2009-2013 |
01 |
| 031 |
12523208 |
INSERT, REV SHFT FORK |
DN (MG9) |
2009-2013 |
02 |
| 032 |
19180045 |
FORK, REV SHFT |
DN (MG9) |
2009-2013 |
01 |
