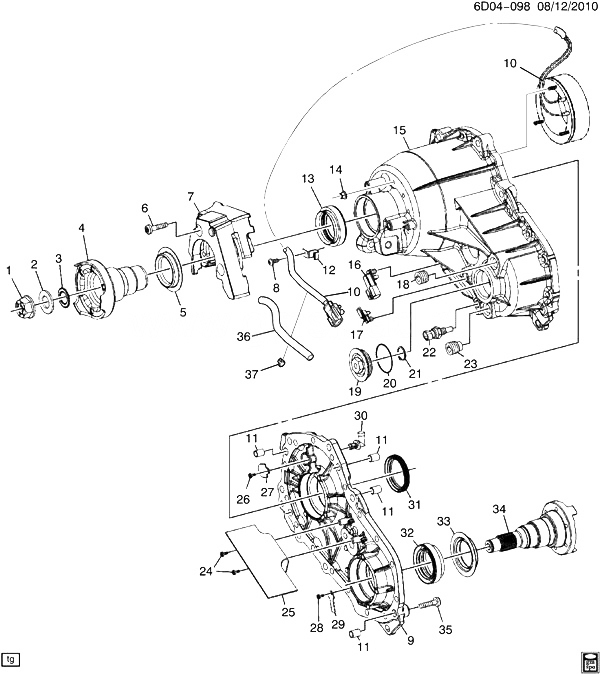

(6D04-098) 2011-2013 DM35-69 РАЗДАТОЧНАЯ КОРОБКА PART 1 ДЕТАЛИ КОРПУСА (FE1,FE2,FE3, ALL-WHEEL DRIVE MX7) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059523 NUT, TRFER CASE RR OUTPUT SHF FLG (4.520) DM 2010-2013 01
002 15580315 WASHER, TRFER CASE RR OUTPUT SHF THR (FLAT) (PL, STL) (7/8 I.D. X 1 39/64 O.D., 1/8 THK) (4.510) DM 2010-2013 01
003 15635532 SEAL, TRFER CASE RR OUTPUT SHF FLG (O RING) (4.412) DM 2010-2013 01
004 19179018 FLANGE, TRFER CASE RR OUTPUT SHF DM 2010-2013 01
005 88996681 DEFLECTOR, TRFER CASE RR OUTPUT SHF SEAL DIRT (5.555) DM 2010-2013 01
006 19180065 BOLT, TRFER CASE VIB DPNR DM (MX7) 2010-2013 03
007 19179016 DAMPENER, TRFER CASE VIB (AT RR OF CASE) DM (MX7) 2010-2012 01
008 BOLT, WRG HARN BRKT 2008-2013
009 19208066 CASE, TRFER (FRT HALF) (INCLS 11) DM35-69 (FE1, FE2, FE3, FE4, MX7) 2011-2013 01
010 19208080 COIL, TRFER CASE TWO/FOUR WHL DRV CLU DM 2010-2013 01
011 88984499 PIN, TRFER CASE HALF LOC (PART OF 9) D 2008-2013 04
012 24408884 BRACKET, WRG HARN DM, DN (K14) 2010-2013 01
013 88996657 SEAL, TRFER CASE RR OUTPUT SHF D 2008-2013 01
014 19208081 NUT, TRFER CASE TWO/FOUR WHL DRV CLU COIL DM 2010-2013 03
015 19208077 CASE, TRFER (RR HALF) DM 2010-2013 01
016 19206436 RESISTOR, (115 OHMS) DM 2010-2013 AR
016 19206437 RESISTOR, (225 OHMS) DM 2010-2013 AR
016 19206438 RESISTOR, (453 OHMS) DM 2010-2013 AR
016 19206439 RESISTOR, (715 OHMS) DM 2010-2013 AR
016 19206440 RESISTOR, (1150 OHMS) DM 2010-2013 AR
016 19206441 RESISTOR, (1820 OHMS) DM 2010-2013 AR
016 19206442 RESISTOR, (3160 OHMS) DM 2010-2013 AR
016 19206443 RESISTOR, (7320 OHMS) DM 2010-2013 AR
016 19206444 RESISTOR, (12700 OHMS) DM 2010-2013 AR
017 CLIP, WRG HARN 2008-2013
018 25522466 PLUG, 1/2-14 X 39/64 (TRFER CASE OIL FILL) (ACDelco #25522466) 2008-2013 01
019 19179015 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (INCLS 20) DM 2010-2013 01
020 SEAL, TRFER CASE ACC HOLE PLUG (O RING) (PART OF 19) 2011-2013
021 19208087 RING, TRFER CASE FRT OUTPUT SHF BRG RET DM 2010-2013 01
022 19179158 SENSOR, TRFER CASE FLUID TEMP (ACDelco #19179158) DM (MYA) 2010-2013 01
023 19179014 PLUG, TRFER CASE OIL DRN DM (MX7) 2010-2013 01
024 88996680 BOLT, TRFER CASE FRT OUTPUT SHF DRV CHAIN SNBR (M5X0.8X16) DM (MYA, MX7) 2010-2012 04
025 88996679 SNUBBER, TRFER CASE FRT OUTPUT SHF DRV CHAIN D 2008-2013 01
026 88996680 BOLT, TRFER CASE VENT BFL (M5X0.8X16) (4.535) DM (MX7) 2010-2013 01
027 88996658 BAFFLE, TRFER CASE VENT D 2008-2013 01
028 BOLT, TRFER CASE MT BAR INSL CLA 2008-2013
029 CLAMP, TRFER CASE MT BAR INSL 2008-2013
030 19180066 VENT, TRFER CASE DM (MYA, MYB, MX7) 2010-2013 01
031 88996656 SEAL, TRFER CASE INPUT SHF D 2008-2013 01
032 88996657 SEAL, TRFER CASE FRT OUTPUT SHF D 2008-2013 01
033 88996681 DEFLECTOR, TRFER CASE FRT OUTPUT SHF SEAL DIRT DM (MX7) 2010-2013 01
034 19208069 SHAFT, TRFER CASE FRT OUTPUT DM (MX7) 2010-2013 01
035 89048123 BOLT, TRFER CASE HALF (M8X1.25X30) D 2008-2013 17
036 19208079 PROTECTOR, TRFER CASE DM (MYA, JJB, MX7) 2012-2013 01
037 STRAP, TRFER CASE COIL 2011-2013
