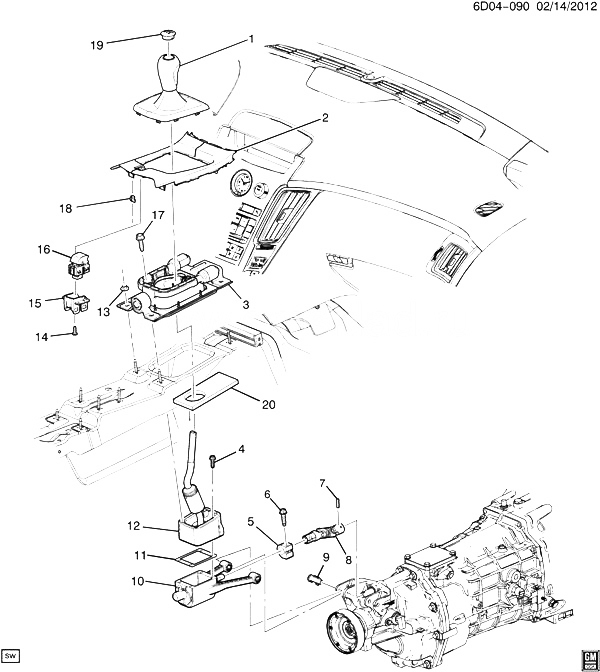

(6D04-090) 2011-2013 DN35-47-69 МЕХАНИЗМ УПРАВЛЕНИЯ ПЕРЕКЛЮЧЕНИЕМ ПЕРЕДАЧ/МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MG9) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25858071 KNOB, M/TRNS CONT LVR (W/BOOT W/SHFT PATT) (INCLS 19) (SUEDE KNOB/LEATHER BOOT) DN (MN6, 5AC) 2010-2013 01
001 25858072 KNOB, M/TRNS CONT LVR (W/BOOT W/SHFT PATT) (INCLS 19) (LEATHER KNOB/LEATHER BOOT) DN (MN6) (EXC 5AC) 2010-2013 01
002 20933023 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 14-16, 18) (V-BLACK) DN35-69 (MG9, 4AL, 4AM) 2012-2012 01
003 20777827 PLATE, M/TRNS CONT MT (INCLS 13, 17) DN (MN6) 2009-2013 01
004 11562426 BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (M/TRNS CONT BRKT) 2009-2013 04
005 19206520 CLAMP, M/TRNS CONT SHF DN (MN6) 2009-2013 01
006 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (M/TRNS SHFT LVR ROD CLA) 2009-2013 01
007 PIN, M/TRNS CONT LVR PIV (PART OF 8) 2010-2013
008 19206518 JOINT, M/TRNS SHFT LVR ROD UNIVERSAL (INCLS 7) DN (MN6) 2009-2013 01
009 25753853 PIN, M/TRNS CONT SHF EQLZR LVR (TRANS END) DM, DN (MN6) 2009-2013 02
010 20802168 CONTROL, M/TRNS (W/O SHFT KNOB BOOT) (INCLS 11, 12) DN (MN6) 2009-2013 01
011 GASKET, M/TRNS CONT LVR HSG (PART OF 10) 2010-2013
012 LEVER, M/TRNS CONT (PART OF 10) 2011-2013
013 11609738 NUT, PUSH ON, M6X1, 12.7 OD, 2.18 THK, SAE 1050 STL, GMW3200. (PART OF 3) (8.921) 2009-2013 04
014 BOLT, F/FLR CNSL RR CVR (PART OF 2) 2011-2013
015 RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT (PART OF 2) 2011-2013
016 15935228 SWITCH, PARK BRK (PART OF 2) (ACDelco #15935228) D 2009-2012 01
017 11519385 BOLT, HEX HD, W/CON WA, M6X1X33, 23.37 THD, 17 O.D., 8.8, GMW3359 (PART OF 3) 2009-2013 04
018 11610112 CLIP, F/FLR CNSL TR PLT (TR PLT TO SI PNL) (PART OF 2) (10.4 X 13 X 9) (14.683) D69 (MG9, MYD) 2009-2013 02
019 CAP, M/TRNS SEL LVR (PART OF 1) 2011-2013
020 20841741 INSULATOR, FLR PNL TUN PNL RR DN (MG9) 2011-2013 01
