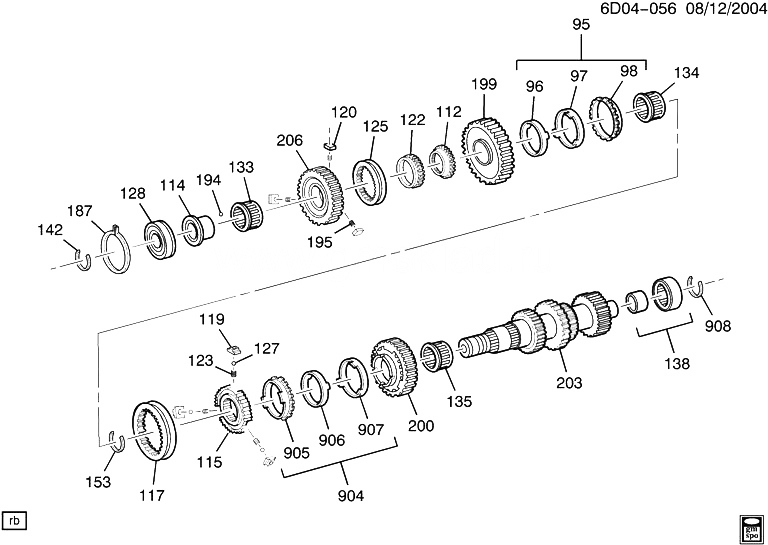

(6D04-056) 2012 DM69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 4 (MV7) COUNTERSHAFT COMPONENTS CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
187 89058822 RETAINER, CNTR GR FRT BRG DM (MV7) 2010-2012 01
194 89048423 BALL, REV GR THR WA LOC (4.345) DM (LFW, MV7) 2012-2012 01
195 89048329 SPRING, REV GR SYN (4.384) (ACDelco #89048329) DM (MV7) 2010-2012 03
199 92149633 GEAR, 1ST (ACDelco #92149633) DM (MV7) 2010-2012 01
200 19178532 GEAR, 2ND (ACDelco #19178532) DM (LF1, LLT, MV7, JJB) 2010-2012 01
203 GEAR, CNTR 2012-2012
206 GEAR, REV 2012-2012
904 89058794 RING SET, 2ND GR BLOCKING (INCLS 905-907) (ACDelco #89058794) DM (MV7) 2008-2012 01
905 RING, 2ND GR OTR BLOCKING (PART OF 904) 2012-2012
906 CONE, 2ND GR SYN OTR (PART OF 904) 2012-2012
907 CONE, 2ND GR SYN INR (PART OF 904) 2012-2012
908 89059343 RING, CNTR GR FRT BRG RET (ACDelco #89059343) DM (MV7) 2010-2012 01
095 89058794 RING SET, 1ST GR BLOCKING (INCLS 96-98) (ACDelco #89058794) DM (MV7) 2008-2012 01
096 CONE, 1ST GR SYN INR (PART OF 95) 2012-2012
097 CONE, 1ST GR SYN OTR (PART OF 95) 2012-2012
098 RING, 1ST GR OTR BLOCKING (PART OF 95) 2012-2012
112 89058786 GEAR, REV GR DRV (ACDelco #89058786) DM (MV7) 2010-2012 01
114 89058865 BUSHING, REV GR BRG DM (MV7) 2010-2012 01
115 89058807 HUB, 1ST 2ND GR SYN (ACDelco #89058807) DM (MV7) 2010-2012 01
117 89058803 SLEEVE, 1ST 2ND GR SYN DM (MV7) 2010-2012 01
119 89058808 INSERT, 1ST 2ND GR SYN DM (MV7) 2010-2012 03
120 89058809 INSERT, REV GR SYN DM (MV7) 2010-2012 03
122 89058793 RING, REV GR BLOCKING (ACDelco #89058793) DM (MV7) 2010-2012 01
123 89058811 SPRING, 1ST 2ND GR SYN (ACDelco #89058811) DM (MV7) 2010-2012 03
125 89058804 SLEEVE, REV GR SYN DM (MV7) 2010-2012 01
127 89058810 BALL, 1ST 2ND GR SYN DTNT DM (MV7) 2008-2012 03
128 89058783 BEARING, CNTR GR FRT (ACDelco #89058783) DM (MV7) 2010-2012 01
133 89058785 BEARING, REV GR (ACDelco #89058785) DM (MV7) 2010-2012 01
134 89058787 BEARING, 1ST GR (ACDelco #89058787) DM (MV7) 2010-2012 01
135 89058788 BEARING, 2ND GR (ACDelco #89058788) DM (MV7) 2010-2012 01
138 89058784 BEARING, CNTR GR RR (ACDelco #89058784) DM (MV7) 2010-2012 01
142 89059343 RING, CNTR GR FRT BRG RET (ACDelco #89059343) DM (MV7) 2010-2012 01
153 89059344 RING, 1ST 2ND GR SYN RET (ACDelco #89059344) DM (MV7) 2010-2012 01
