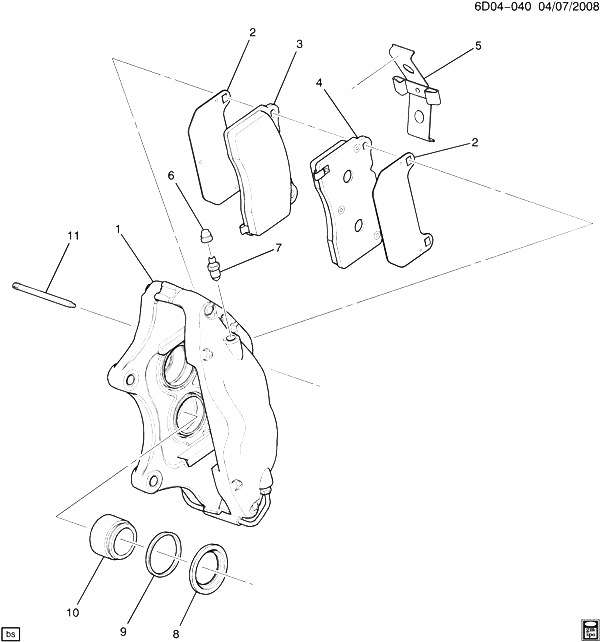

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20982644 |
CALIPER, RR BRK (INCLS 6-10) (YELLOW) (V LOGO) (ACDelco #172-2523) |
DN (J56, J6E) |
2012-2013 |
01 |
| 001 |
20982647 |
CALIPER, RR BRK (INCLS 6-10) (YELLOW) (V LOGO) (ACDelco #172-2524) |
DN (J56, J6E) |
2012-2013 |
01 |
| 001 |
25911138 |
CALIPER, RR BRK (INCLS 6-10) (SILVER) (V LOGO) (ACDelco #172-2486) |
DN (J56) (EXC J6E, J6F) |
2012-2013 |
01 |
| 001 |
22885101 |
CALIPER, RR BRK (INCLS 6-10) (ACDelco #172-2597) |
DN (J56, J6F) |
2012-2013 |
01 |
| 001 |
22885103 |
CALIPER, RR BRK (INCLS 6-10) (ACDelco #172-2598) |
DN (J56, J6F) |
2012-2013 |
01 |
| 001 |
25911233 |
CALIPER, RR BRK (INCLS 6-10) (SILVER) (V LOGO) (ACDelco #172-2513) |
DN (J56) (EXC J6E, J6F) |
2012-2013 |
01 |
| 002 |
|
SHIM, RR BRK CLPR MT PLT (PART OF 3) |
|
2011-2013 |
|
| 003 |
89047744 |
PAD KIT, RR DISC BRK (INCLS 2, 4) (ACDelco #171-0882) |
DN (J56) |
2011-2013 |
01 |
| 003 |
89047744 |
PAD KIT, RR DISC BRK (INCLS 2, 4) (ACDelco #171-0882) |
DN35-47-69 (J6F) |
2012-2013 |
01 |
| 003 |
89047744 |
PAD KIT, RR DISC BRK (INCLS 2, 4) (ACDelco #171-0882) |
DN (J6E) |
2012-2013 |
01 |
| 004 |
|
PAD, RR DISC BRK OTR (PART OF 3) |
|
2011-2013 |
|
| 005 |
|
RETAINER, RR DISC BRK PAD (PART OF 11) |
|
2011-2013 |
|
| 006 |
|
CAP, RR BRK BLEDR VLV (PART OF 1, 7) |
|
2011-2013 |
|
| 007 |
25900782 |
VALVE KIT, RR BRK CLPR BLEDR (INCLS 6) (PART OF 1) (INCLS CAP) (4.666) (ACDelco #25900782) |
DN (J56) |
2010-2013 |
02 |
| 007 |
25900782 |
VALVE KIT, RR BRK CLPR BLEDR (INCLS 6) (PART OF 1) (INCLS CAP) (4.666) (ACDelco #25900782) |
DN (J6E) |
2011-2013 |
02 |
| 007 |
25900782 |
VALVE KIT, RR BRK CLPR BLEDR (INCLS 6) (PART OF 1) (INCLS CAP) (4.666) (ACDelco #25900782) |
DN (J6F) |
2012-2013 |
02 |
| 008 |
89047739 |
BOOT KIT, RR BRK CLPR PSTN (PART OF 1) (INCLS 4 BOOTS) |
DN (J56) |
2011-2013 |
02 |
| 008 |
89047739 |
BOOT KIT, RR BRK CLPR PSTN (PART OF 1) (INCLS 4 BOOTS) |
DN35-47-69 (J6E, J6F) |
2012-2013 |
02 |
| 009 |
|
SEAL, RR BRK CLPR PSTN (PART OF 1, 10) |
|
2011-2013 |
|
| 010 |
89047731 |
PISTON KIT, RR BRK CLPR (INCLS 9) (PART OF 1) (INCLS 4 PISTONS 4 PISTON SEALS) (ACDelco #89047731) |
DN (J56) |
2011-2013 |
02 |
| 010 |
89047731 |
PISTON KIT, RR BRK CLPR (INCLS 9) (PART OF 1) (INCLS 4 PISTONS 4 PISTON SEALS) (ACDelco #89047731) |
DN (J6F) |
2012-2013 |
02 |
| 010 |
89047731 |
PISTON KIT, RR BRK CLPR (INCLS 9) (PART OF 1) (INCLS 4 PISTONS 4 PISTON SEALS) (ACDelco #89047731) |
DN (J6E) |
2012-2013 |
02 |
| 011 |
89047728 |
PIN KIT, RR DISC BRK PAD (INCLS 5) (INCLS 2 PINS 1 RETAINER) |
DN |
2009-2013 |
02 |
