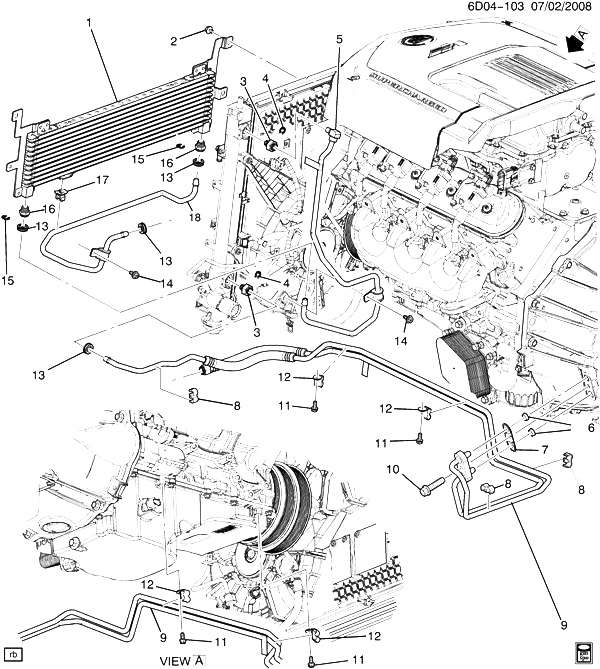

(6D04-103) 2011-2013 DN35-47-69 МАСЛОПРОВОДЫ ОХЛАЖДЕНИЯ АВТОМАТИЧЕСКОЙ КОРОБКИ ПЕРЕДАЧ (MYD) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25829909 COOLER, TRANS FLUID AUX (INCLS 15-17) (ACDelco #25829909) DN (MYD) 2009-2013 01
002 11570324 BOLT, TRANS FLUID AUX CLR (M6X1X14, 9 THD) (9.190) DN (MYD) 2009-2013 04
003 19129762 FITTING, TRANS FLUID CLR PIPE (INCLS 4) (ACDelco #19129762) DN (MYD) 2009-2013 02
004 24205103 RETAINER, TRANS FLUID CLR (PART OF 3) (EXPANDING SPRING WIRE) (ACDelco #24205103) DN 2009-2013 02
005 25876666 PIPE, TRANS FLUID AUX CLR OTLT (INCLS 13) (ACDelco #25876666) DN (MYD) 2009-2013 01
006 24237658 SEAL, TRANS FLUID CLR PIPE FTG (AT TRANS) (SEALS ONE PIPE) (ACDelco #24237658) D 2009-2013 02
007 15251488 SEAL, TRANS FLUID CLR HOSE (PART OF 9) (SEALS TWO PIPES) (ACDelco #15251488) DN (MYD) 2009-2013 01
008 10405874 CLIP, TRANS FLUID CLR HOSE (PART OF 9) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DM, DN 2010-2013 01
009 25812248 HOSE, TRANS FLUID CLR (INCLS 7, 8, 12, 13) (ACDelco #25812248) DN (MYD) 2009-2013 01
010 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2009-2013 01
011 11518061 BOLT, HFH, M6X1X13, 10 THD, 14.2 OD, GMW25M (8.8) STL, GMW14C-PT (TRANS FLUID CLR PIPE CLIP) 2009-2013 02
012 11570856 CLIP, TRANS FLUID CLR HOSE (PART OF 9) (HOLDS TWO 4.8 DIA TUBES) DN 2009-2013 02
013 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 5, 9, 18) (PLASTIC RETAINER) (ACDelco #15052228) DN 2009-2013 AR
014 11570323 BOLT, TRANS FLUID CLR OTLT PIPE (M6X1X18, 13 THD) (1.277) DN 2009-2013 02
015 24205103 RETAINER, TRANS FLUID AUX CLR (PART OF 1, 16) (EXPANDING SPRING WIRE) (ACDelco #24205103) DN (MYD) 2009-2013 01
016 19129762 FITTING, TRANS FLUID CLR PIPE (INCLS 15) (PART OF 1) (ACDelco #19129762) DN (MYD) 2009-2013 02
017 CLIP, TRANS FLUID CLR HOSE (PART OF 1) 2011-2013
018 25876665 PIPE, TRANS FLUID AUX CLR INL (INCLS 13) (ACDelco #25876665) DN (MYD) 2009-2013 01
