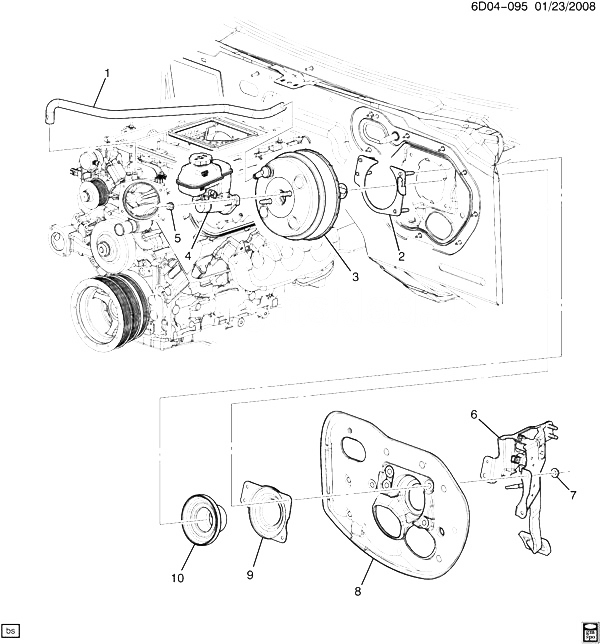

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25817338 |
HOSE, P/B BOOS VAC |
DN |
2009-2013 |
01 |
| 002 |
25675835 |
BRACKET, BRK PED BRKT (PART OF 6) |
DM, DN |
2011-2013 |
01 |
| 003 |
20840616 |
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #178-0824) |
DN |
2010-2013 |
01 |
| 004 |
22797527 |
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1230) |
DN |
2009-2013 |
01 |
| 005 |
11609949 |
NUT, HEX PRVL TORQ, W/NYLON WA INSERT, M10X1.5X11.7, ZC (BRK M/CYL) |
|
2009-2013 |
02 |
| 006 |
|
PEDAL, BRK (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL FOR DETAILED ILLUSTRATED VIEW) (INCLS 2) |
|
2009-2013 |
|
| 007 |
11514519 |
NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) |
|
2009-2013 |
04 |
| 008 |
25913292 |
BARRIER, BRK PED BRKT SND |
DN (MYD, MX0) |
2009-2013 |
01 |
| 008 |
25931380 |
BARRIER, BRK PED BRKT SND |
DN (MG9, MN6) |
2009-2013 |
01 |
| 009 |
25697461 |
RETAINER, BRK PED PUSH ROD BOOT |
DM, DN |
2009-2013 |
01 |
| 010 |
15849744 |
BOOT, BRK PED PUSH ROD |
DM, DN |
2009-2013 |
01 |
