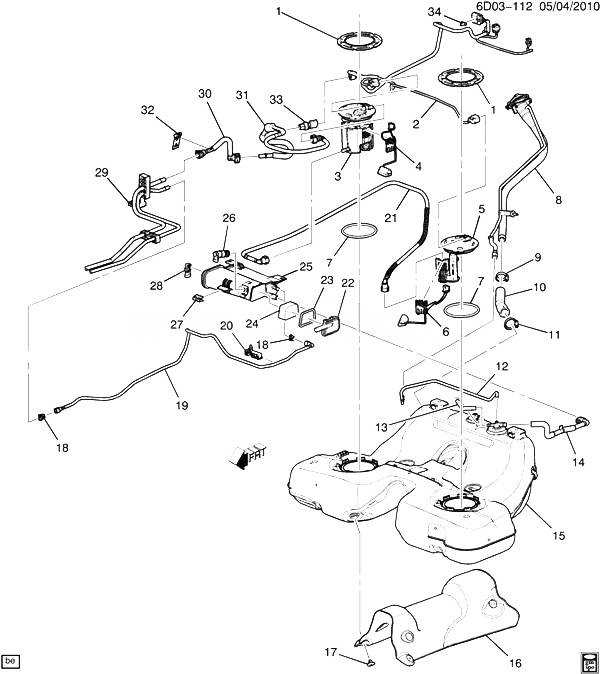

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) |
DM |
2011-2013 |
02 |
| 001 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) |
DR (EXPORT) |
2011-2013 |
02 |
| 002 |
22760918 |
HARNESS, FUEL SDR WRG (INCLS 34) |
DM35-47-69 |
2012-2013 |
01 |
| 002 |
22760918 |
HARNESS, FUEL SDR WRG (INCLS 34) (3.115) |
DM35-47-69 |
2012-2013 |
01 |
| 002 |
22760918 |
HARNESS, FUEL SDR WRG (INCLS 34) (3.115) |
DR35-69 (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 002 |
22760918 |
HARNESS, FUEL SDR WRG (INCLS 34) |
DR35-69 (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 003 |
|
MODULE, F/PMP CYC CONT (W/O FUEL LVL SENSOR) (*KIT2) |
|
2011-2013 |
|
| 004 |
|
SENSOR, FUEL LVL (*KIT3) |
|
2011-2013 |
|
| 005 |
|
SENDER, FUEL (PART OF 6) |
|
2011-2013 |
|
| 006 |
19209056 |
SENDER KIT, FUEL (INCLS 5, 7) (AUXILLARY) (ACDelco #SK1336) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 006 |
19209056 |
SENDER KIT, FUEL (INCLS 5, 7) (AUXILLARY) (ACDelco #SK1336) |
DR (LFW, LFX) |
2012-2013 |
01 |
| 007 |
15776433 |
SEAL, F/PMP (O RING) (PART OF 6) (APPROX SIZE112.5X6.0) (*KIT2, KIT3) (3.112) (ACDelco #G48) |
DR (LFW, LFX) |
2012-2013 |
01 |
| 007 |
22682111 |
SEAL, F/PMP (O RING) (APPROX SIZE147.5MM X 6MM) (ACDelco #G41) |
DM |
2011-2013 |
02 |
| 008 |
20931175 |
PIPE, F/TNK FIL (SEE GROUP 03.000 FUEL TANK FILLER PIPES HOSES FOR DETAILED ILLUSTRATED VIEW) |
D35-69 |
2012-2013 |
01 |
| 009 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 10) |
|
2011-2013 |
01 |
| 010 |
15925742 |
HOSE, F/TNK FIL (INCLS 9) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 010 |
15925742 |
HOSE, F/TNK FIL (INCLS 9) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 011 |
20768688 |
CLAMP, F/TNK FIL HOSE |
DM (LFW, LFX) |
2012-2013 |
01 |
| 011 |
20768688 |
CLAMP, F/TNK FIL HOSE |
DR (LFW, LFX) |
2012-2013 |
01 |
| 012 |
|
PIPE, AUX F/TNK FIL EXTN (PART OF 15) |
|
2011-2013 |
|
| 013 |
|
PIPE, F/TNK VENT (PART OF 15) |
|
2011-2013 |
|
| 014 |
|
PIPE, F/TNK VENT VLV (PART OF 15) |
|
2011-2013 |
|
| 015 |
20903277 |
TANK, FUEL (INCLS 12-14) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 015 |
20903277 |
TANK, FUEL (INCLS 12-14) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 016 |
20903276 |
SHIELD, F/TNK |
DM (LFW, LFX) |
2012-2013 |
01 |
| 016 |
20903276 |
SHIELD, F/TNK |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 017 |
22718369 |
RETAINER, F/TNK SHLD |
DM |
2012-2013 |
04 |
| 017 |
22718369 |
RETAINER, F/TNK SHLD |
DR (EXPORT) |
2012-2013 |
04 |
| 018 |
|
RETAINER KIT, FUEL FEED PIPE FTG (PART OF 19) |
|
2011-2013 |
|
| 019 |
20986415 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) (PURGE LINE) |
DM |
2012-2013 |
01 |
| 019 |
20986415 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) (PURGE LINE) |
DR |
2012-2013 |
01 |
| 020 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) |
D |
2011-2013 |
01 |
| 020 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
D |
2011-2013 |
01 |
| 021 |
20903288 |
PIPE, FUEL SDR FUEL FEED |
DM (LFW, LFX) |
2012-2013 |
01 |
| 021 |
20903288 |
PIPE, FUEL SDR FUEL FEED |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 022 |
|
COVER, EVAP EMIS CNSTR AIR INL OPG (PART OF 25) |
|
2012-2013 |
|
| 023 |
|
SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (PART OF 25) |
|
2012-2013 |
|
| 024 |
|
FILTER, EVAP EMIS CNSTR AIR INL (PART OF 25) |
|
2012-2013 |
|
| 025 |
22874434 |
CANISTER, EVAP EMIS (INCLS 22-24, 27) (ACDelco #22874434) |
DM, DN |
2012-2013 |
01 |
| 025 |
22874434 |
CANISTER, EVAP EMIS (INCLS 22-24, 27) (ACDelco #22874434) |
DR (EXPORT) |
2012-2013 |
01 |
| 026 |
22865590 |
VALVE, EVAP EMIS CNSTR VENT SOL (W/COVER MAY NEED TO USE MATING CONN W/LEADS 13579002) (ACDelco #22865590) |
DM, DN |
2012-2013 |
01 |
| 026 |
22865590 |
VALVE, EVAP EMIS CNSTR VENT SOL (W/COVER MAY NEED TO USE MATING CONN W/LEADS 13579002) (ACDelco #22865590) |
DR (EXPORT) |
2012-2012 |
01 |
| 027 |
|
RETAINER, EVAP EMIS CNSTR (INCLS 25) |
|
2011-2013 |
|
| 028 |
13502903 |
SENSOR, F/TNK PRESS (ACDelco #13502903) |
D |
2011-2013 |
01 |
| 029 |
|
PIPE, BRK FUEL FEED EVAP EMIS (SEE GROUP 03.000 FUEL SUPPLY SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 030 |
20986720 |
HOSE, FUEL FEED (INCLS 32) |
DM |
2011-2013 |
01 |
| 030 |
20986720 |
HOSE, FUEL FEED (INCLS 32) |
DR (EXPORT) |
2011-2013 |
01 |
| 031 |
20986413 |
PIPE, FUEL FEED RR (INCLS 33) |
DM |
2011-2012 |
01 |
| 031 |
20986413 |
PIPE, FUEL FEED RR (INCLS 33) |
DR (EXPORT) |
2011-2012 |
01 |
| 032 |
|
LABEL, FUEL FEED PIPE WRNG (PART OF 30) |
|
2011-2013 |
|
| 033 |
13500745 |
SENSOR, FUEL PRESS (PART OF 31) (PART OF FUEL LINE) (ACDelco #13500745) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (PART OF 31) (PART OF FUEL LINE) (3.682) (ACDelco #13500745) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (PART OF 31) (PART OF FUEL LINE) (ACDelco #13500745) |
DR (LFW, LFX) (EXPORT) |
2012-2012 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (PART OF 31) (PART OF FUEL LINE) (3.682) (ACDelco #13500745) |
DR (LFW, LFX) (EXPORT) |
2012-2012 |
01 |
| 034 |
15317832 |
RETAINER, WRG HARN CONN (PART OF 2) (SECONDARY LOCK) (3.166) |
D |
2011-2013 |
01 |
| K02 |
19209054 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 3, 7) (ACDelco #19209054) |
DM |
2012-2013 |
01 |
| K02 |
19209054 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 3, 7) (3.107) (ACDelco #19209054) |
DM |
2012-2013 |
01 |
| K02 |
19209054 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 3, 7) (3.107) (ACDelco #19209054) |
DR (EXPORT) |
2012-2013 |
01 |
| K02 |
19209054 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 3, 7) (ACDelco #19209054) |
DR (EXPORT) |
2012-2013 |
01 |
| K03 |
13504737 |
SENSOR KIT, FUEL LVL (INCLS 4, 7) (ACDelco #SK1378) |
DM35-47-69 |
2011-2013 |
01 |
| K03 |
13504737 |
SENSOR KIT, FUEL LVL (INCLS 4, 7) (ACDelco #SK1378) |
DR35-69 (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
