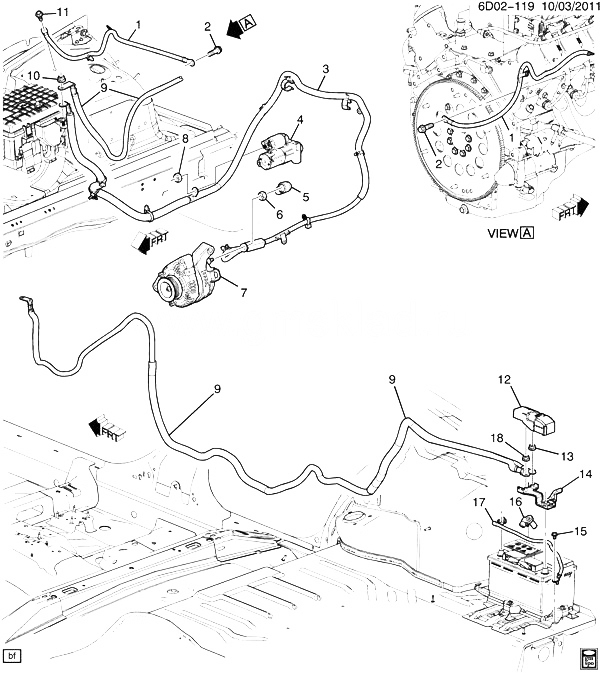

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20829124 |
CABLE, BAT NEG CBL EXTN (ACDelco #20829124) |
DN (LSA) |
2010-2013 |
01 |
| 002 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT CBL TERM) |
|
2010-2013 |
01 |
| 003 |
20921716 |
CABLE, GEN BAT JPR (INCLS 5) (ACDelco #20921716) |
DN (LSA) |
2010-2012 |
01 |
| 004 |
19180527 |
STARTER, (SEE GROUP 02.000 STARTER MOUNTING FOR DETAILED ILLUSTRATED VIEW) (REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) (ACDelco #323-1660) |
DN (LSA) |
2010-2013 |
01 |
| 005 |
|
BOOT, WRG HARN TERM (PART OF 3) |
|
2011-2013 |
|
| 006 |
11609789 |
NUT, HEX, M8X1.25, 6.6 THK, 10, GMW3200. (BAT WIRE) |
|
2010-2013 |
01 |
| 007 |
25925447 |
GENERATOR, (SEE GROUP 02.000 GENERATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) (ACDelco #25925447) |
D (LSA, KG4) |
2011-2013 |
01 |
| 008 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
D35-47-69 |
2012-2013 |
01 |
| 009 |
20794102 |
CABLE, BAT POS (INCLS 12-14, 18) (ACDelco #20794102) |
D69 |
2010-2013 |
01 |
| 010 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (BAT POS CBL) |
|
2010-2013 |
01 |
| 011 |
11589258 |
BOLT, BAT NEG CBL GND (M8X1.25X31) |
D35-47-69 |
2011-2013 |
01 |
| 012 |
20921679 |
COVER, BAT POS CBL TERM (PART OF 9) |
D69 |
2010-2012 |
01 |
| 013 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PART OF 9) |
|
2010-2013 |
01 |
| 014 |
20794153 |
TERMINAL, BAT POS CBL (PART OF 9) |
D35-47-69 |
2011-2012 |
01 |
| 015 |
|
BOLT, BAT NEG CBL (PART OF 17) |
|
2011-2013 |
|
| 016 |
13505369 |
SENSOR, BAT CUR (PART OF 17) |
D35-47-69 |
2012-2013 |
01 |
| 017 |
20849476 |
CABLE, BAT NEG (INCLS 15, 16) (ACDelco #20849476) |
D35-47-69 |
2011-2013 |
01 |
| 018 |
11609412 |
NUT, HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200 (PART OF 9) |
|
2010-2013 |
01 |
