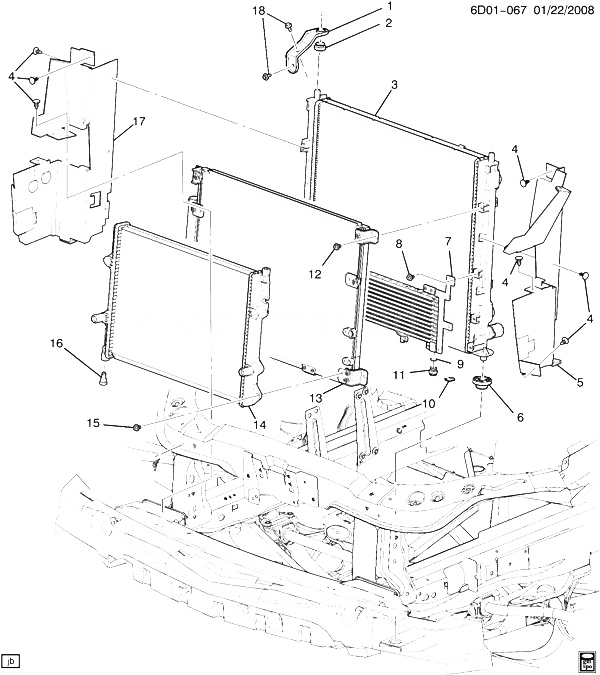

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25812253 |
BRACKET, RAD UPR (INCLS 2) |
DN |
2009-2013 |
02 |
| 002 |
|
INSULATOR, RAD UPR (PART OF 1) |
|
2011-2013 |
|
| 003 |
25876664 |
RADIATOR, (INCLS 6) (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21735) |
DN (MYD) |
2009-2013 |
01 |
| 003 |
25887194 |
RADIATOR, (INCLS 6) (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21736) |
DN (MG9) |
2009-2013 |
01 |
| 004 |
|
RETAINER, RAD BFL RET (PART OF 5, 17) |
|
2011-2013 |
|
| 005 |
25876658 |
BAFFLE, RAD AIR SI (INCLS 4) |
DN |
2009-2013 |
01 |
| 006 |
15932850 |
INSULATOR, RAD LWR (PART OF 3) |
D |
2009-2013 |
02 |
| 007 |
25829909 |
COOLER, TRANS FLUID AUX (INCLS 9-11) (ACDelco #25829909) |
DN (MYD) |
2009-2013 |
01 |
| 008 |
11570324 |
BOLT, A/C CNDSR (M6X1X14, 9 THD) |
D |
2009-2013 |
04 |
| 009 |
|
SEAL, TRANS FLUID CLR (PART OF 7) |
|
2011-2013 |
|
| 010 |
24205103 |
RETAINER, TRANS FLUID AUX CLR (PART OF 7, 11) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
DN (MYD) |
2009-2013 |
01 |
| 011 |
19129762 |
FITTING, TRANS FLUID CLR PIPE (INCLS 10) (PART OF 7) (ACDelco #19129762) |
DN (MYD) |
2009-2013 |
02 |
| 012 |
11570324 |
BOLT, TRANS FLUID AUX CLR (M6X1X14, 9 THD) (9.190) |
DN (MYD) |
2009-2013 |
04 |
| 013 |
25876662 |
CONDENSER, A/C (ACDelco #15-63558) |
DN |
2009-2013 |
01 |
| 014 |
25876663 |
RADIATOR, CHRG AIR CLR (INCLS 16) |
DN |
2009-2013 |
01 |
| 015 |
11570323 |
BOLT, CHRG AIR CLR (M6X1X18, 13 THD) (1.277) |
DN (MG9, MYD) |
2009-2013 |
04 |
| 016 |
89025034 |
PLUG, RAD DRN (PART OF 14) (3.358) |
DN |
2009-2013 |
02 |
| 017 |
25876659 |
BAFFLE, RAD AIR SI (INCLS 4) |
DN |
2009-2013 |
01 |
| 018 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (RAD UPR MT BRKT) |
|
2009-2013 |
04 |
