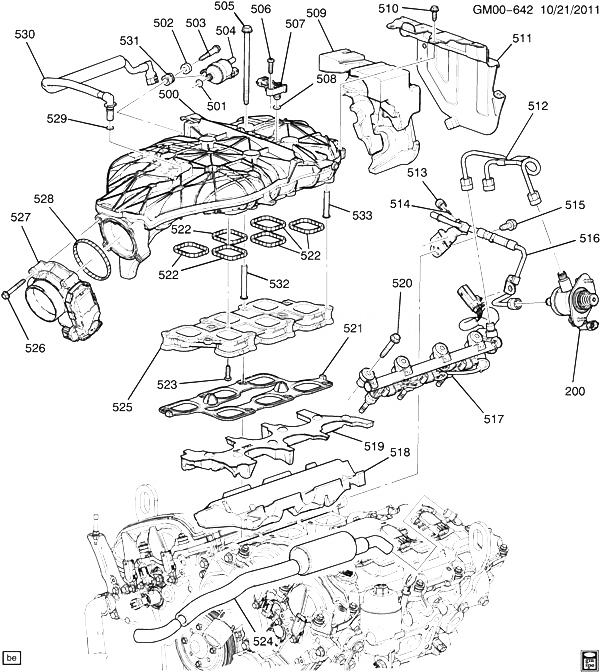

(GM00-642) 2012-2013 DM,DR ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 PART 5 ВПУСКНОЙ КОЛЛЕКТОР И СОПУТСТВУЮЩИЕ ДЕТАЛИ (LFX/3.6-3) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 12641740 PUMP, FUEL (SEE GROUP 00.000 CYLINDER HEAD RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (HIGH PRESSURE) (ACDelco #43519) DM (LFX) 2012-2013 01
200 12641740 PUMP, FUEL (SEE GROUP 00.000 CYLINDER HEAD RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (HIGH PRESSURE) (ACDelco #43519) DR (LFX) (EXPORT) 2012-2013 01
500 12642700 MANIFOLD, UPR INT (INCLS 532, 533) (REUSE BOLT LIMITERS FROM ORIG MANIFOLD.) (ACDelco #12642700) DM (LFW, LFX) 2012-2013 01
500 12642700 MANIFOLD, UPR INT (INCLS 532, 533) (REUSE BOLT LIMITERS FROM ORIG MANIFOLD.) (ACDelco #12642700) DR (LFX, LFW) (EXPORT) 2012-2013 01
501 SEAL, EVAP EMIS CNSTR PURGE SOL VLV HOLE PLUG (O RING) (PART OF 504) 2012-2013
502 INSULATOR, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 504) 2012-2013
503 BOLT, EVAP EMIS CNSTE PURGE SOL VLV (PART OF 504) 2012-2013
504 12610560 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 501-503, 531) (ACDelco #214-2137) DM 2012-2013 01
504 12610560 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 501-503, 531) (ACDelco #214-2137) DR (EXPORT) 2012-2013 01
505 11588930 BOLT, HFH, M8X1.25X145, 22 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT UPR MANIF) 2012-2013 05
506 11562253 BOLT, MAP SEN (M6X2.22X24) DM, DN 2012-2013 01
506 11562253 BOLT, MAP SEN (M6X2.22X24) DR (EXPORT) 2012-2013 01
507 55573248 SENSOR, MAP (INCLS 508) (ACDelco #213-4681) DM (LFW, LFX) 2012-2013 01
507 55573248 SENSOR, MAP (INCLS 508) (ACDelco #213-4681) DR (LFW, LFX) (EXPORT) 2012-2013 01
508 SEAL, MAP SEN (PART OF 507) 2012-2013
509 12643423 SHIELD, ENG RR NOISE DM (LFW, LFX) 2012-2013 01
509 12643423 SHIELD, ENG RR NOISE DR (LFW, LFX) (EXPORT) 2012-2013 01
510 11588723 BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (FUEL PIPE SHLD) 2012-2013 02
511 12642664 SHIELD, FUEL PIPE DM 2012-2013 01
511 12642664 SHIELD, FUEL PIPE DR (EXPORT) 2012-2013 01
512 12639208 PIPE, FUEL FEED INTER DM (LFX) 2012-2013 01
512 12639208 PIPE, FUEL FEED INTER DR (LFX) (EXPORT) 2012-2013 01
513 25532662 CAP, FUEL PRESS SERV VLV (PART OF 516) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) D 2012-2013 01
514 12574525 VALVE, FUEL PRESS SERV (PART OF 516) (SCHRADER VALVE LESS CAP) (ACDelco #12574525) D 2012-2013 01
515 11589040 BOLT, F/INJN FUEL FEED RTN PIPE RET (M10X1.5X22) (4.115) DM 2012-2013 02
515 11589040 BOLT, F/INJN FUEL FEED RTN PIPE RET (M10X1.5X22) (4.115) DR (EXPORT) 2012-2013 02
516 12633597 PIPE, FUEL FEED (INCLS 513, 514) (AT ENGINE) DM (LFX, MYA, MX0, MX7) 2012-2012 01
516 12633597 PIPE, FUEL FEED (INCLS 513, 514) (AT ENGINE) DR (LFX, MYA, MX0) 2012-2012 01
517 RAIL, DIR F/INJN FUEL (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) 2012-2013
518 12647743 SHIELD, F/INJN FUEL RL NOISE (BELOW FUEL RAIL) (LWR) DM (LFX) 2012-2013 01
518 12647743 SHIELD, F/INJN FUEL RL NOISE (BELOW FUEL RAIL) (LWR) DR (LFX) 2012-2013 01
519 12611866 SHIELD, F/INJN FUEL RL NOISE (UPR) DM (LFX) 2012-2013 01
519 12611866 SHIELD, F/INJN FUEL RL NOISE (UPR) DR (LFX) 2012-2013 01
520 11588729 BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) 2012-2013 04
521 12609163 GASKET, LWR INT MANIF (*KIT1) DM (LFW, LFX) 2012-2013 01
521 12609163 GASKET, LWR INT MANIF (*KIT1) DR (LFW, LFX) (EXPORT) 2012-2013 01
522 GASKET, UPR INT MANIF (*KIT1) 2012-2013
523 11562253 BOLT, LWR INT MANIF (M6X2.22X24) (3.682) DM (LFW, LFX) 2012-2013 04
523 11562253 BOLT, LWR INT MANIF (M6X2.22X24) (3.682) DR (LFW, LFX) (EXPORT) 2012-2013 04
524 TUBE, PCV 2012-2013 01
525 12611155 MANIFOLD, LWR INT (MACH) (ACDelco #12611155) DM (LFW, LFX) 2012-2013 01
525 12611155 MANIFOLD, LWR INT (MACH) (ACDelco #12611155) DR (LFW, LFX) (EXPORT) 2012-2013 01
526 11519972 BOLT, THROT BODY (M6X1X50) DM (LFW, LFX) 2012-2013 04
526 11519972 BOLT, THROT BODY (M6X1X50) DR (LFW, LFX) (EXPORT) 2012-2013 04
527 12632172 BODY, THROT (W/SEN) (ACDelco #12632172) DM (LFW, LFX) 2012-2013 01
527 12632172 BODY, THROT (W/SEN) (ACDelco #12632172) DR (LFW, LFX) (EXPORT) 2012-2013 01
528 12634371 GASKET, THROT BODY (ACDelco #12634371) DM (LFW, LFX) 2012-2013 01
528 12634371 GASKET, THROT BODY (ACDelco #12634371) DR (LFW, LFX) (EXPORT) 2012-2013 01
529 12616909 SEAL, PCV HOSE FTG (O RING) (PART OF 530) (BLACK) DM (LFX, LFW) 2012-2013 01
529 12616909 SEAL, PCV HOSE FTG (O RING) (PART OF 530) (BLACK) DR (LFX, LFW) (EXPORT) 2012-2013 01
530 12638437 TUBE, PCV (INCLS 529) (FOUL AIR) DM (LFX) 2012-2013 01
530 12638437 TUBE, PCV (INCLS 529) (FOUL AIR) DR (LFX) 2012-2013 01
531 INSULATOR, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 504) 2012-2013
532 12647375 INSERT, UPR INT MANIF (PART OF 500) (93MM) DM (LFW, LFX, MYA, MX0) 2012-2013 05
532 12647375 INSERT, UPR INT MANIF (PART OF 500) (93MM) DR (LFW, LFX, MYA, MX0) 2012-2013 05
532 12647375 INSERT, UPR INT MANIF (PART OF 500) (93MM) DM (LFX, MYA, MX7) 2012-2013 05
533 12647857 INSERT, UPR INT MANIF (PART OF 500) (77MM) DM (LFW, LFX, MYA, MX0) 2012-2013 01
533 12647857 INSERT, UPR INT MANIF (PART OF 500) (77MM) DM (LFX, MYA, MX7) 2012-2013 01
533 12647857 INSERT, UPR INT MANIF (PART OF 500) (77MM) DR (LFW, LFX, MYA, MX0) 2012-2013 01
K01 12647149 GASKET KIT, CYL HD (INCLS 521, 522) DM (LFX) 2012-2013 01
K01 12647149 GASKET KIT, CYL HD (INCLS 521, 522) DR (LFX) (EXPORT) 2012-2013 01
