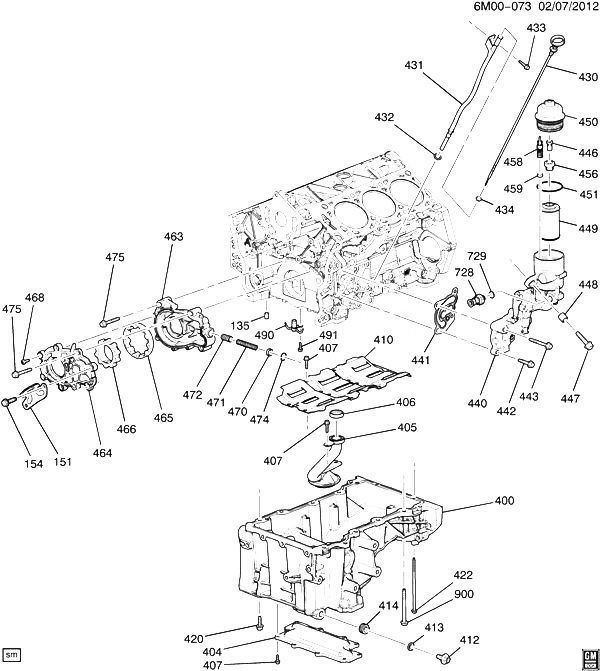

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 135 |
22531637 |
PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DM (LFW, LFX) |
2012-2012 |
02 |
| 151 |
12586959 |
GUIDE, TMG CHAIN (PART OF 463) (2 MOUNTING HOLES) (LOWER PRIMARY) |
DM (LFW) |
2012-2012 |
01 |
| 154 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 463) |
|
2010-2012 |
02 |
| 400 |
12641015 |
PAN, OIL (INCLS 404-407, 410, 412-414, 420, 422, 900) |
DM (LFW, MV7) |
2012-2012 |
01 |
| 400 |
12641017 |
PAN, OIL (INCLS 404-407, 410, 412-414, 420, 422, 900) |
DM (LFW, LFX, MYA, MX7) |
2012-2012 |
01 |
| 404 |
12575500 |
PLATE, OIL PAN SKID (PART OF 400) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 405 |
12575373 |
PIPE, O/PMP SUC (PART OF 400) |
DM (LFW, MYA, MX7) |
2012-2012 |
01 |
| 406 |
12566837 |
SEAL, O/PMP SUC PIPE (PART OF 400) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 407 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 400) |
|
2010-2012 |
18 |
| 410 |
12641014 |
DEFLECTOR, CR/SHF OIL (PART OF 400) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 412 |
11562588 |
PLUG, OIL PAN DRN (PART OF 400) (INCLS 413) (M12X1.75X25) (W/SEAL) (EXC MAGNET) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 413 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 412) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 414 |
11503302 |
INSERT, OIL PAN DRN PLUG THD (PART OF 400) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 420 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 400) |
|
2010-2012 |
07 |
| 422 |
11588424 |
BOLT, HFH, M6X1X145, 18 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) |
|
2010-2012 |
02 |
| 430 |
12609018 |
INDICATOR, OIL LVL (INCLS 434) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 431 |
12613061 |
TUBE, OIL LVL IND (INCLS 432) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 432 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 431) (RED) |
DM (LFW, LFX) |
2012-2012 |
02 |
| 433 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (OIL LVL IND TUBE) |
|
2010-2012 |
01 |
| 434 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 430) (RED) |
DM (LFW, LFX) |
2012-2012 |
02 |
| 440 |
12635600 |
ADAPTER, OIL FLTR (W/BYPASS VLV) |
DM (LFW, MV7) |
2012-2012 |
01 |
| 441 |
12634318 |
GASKET, OIL FLTR (PART OF 440) (ACDelco #12634318) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 442 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 440) |
|
2010-2012 |
02 |
| 443 |
11519174 |
BOLT, HFH, W/REDUCED BODY, M8X1.25X65, THD 22, O.D. 18, 8.8, GMW3359 (PART OF 440) |
|
2010-2012 |
02 |
| 446 |
25014612 |
VALVE, OIL FLTR BYPASS (PART OF 440, 450) (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) (ACDelco #25014612) (PART HAS A 16.10MM MAX OD FITS A 15.84 HOLE IN BLOCK) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 447 |
|
BOLT, OIL FLTR ADAP (PART OF 440) |
|
2011-2012 |
|
| 447 |
11571051 |
BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (PART OF 440) |
|
2011-2012 |
01 |
| 448 |
|
SPACER, OIL FLTR (PART OF 440) |
|
2012-2012 |
|
| 449 |
25177917 |
FILTER, OIL (PART OF 440) (ACDelco #PF2129) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 450 |
12583470 |
CAP, OIL FLTR (PART OF 440) (INCLS 446, 451, 456) (ACDelco #12583470) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 451 |
12577653 |
SEAL, OIL FLTR CAP (O RING) (PART OF 450) (ACDelco #12577653) |
DM (LFW) |
2012-2012 |
01 |
| 456 |
|
RETAINER, OIL FLTR BYPASS VLV SPR (PART OF 440, 450) |
|
2012-2012 |
|
| 458 |
|
CAGE, OIL FLTR BYPASS VLV (PART OF 440) |
|
2012-2012 |
|
| 459 |
|
SEAL, OIL FLTR DRN PLUG (O RING) (PART OF 440) |
|
2012-2012 |
|
| 463 |
12640448 |
PUMP, OIL (INCLS 151, 154, 464-466, 468, 470-472, 474, 475) |
DM (LFX, LFW) |
2012-2012 |
01 |
| 464 |
|
COVER, O/PMP (PART OF 463) |
|
2012-2012 |
|
| 465 |
|
GEAR, O/PMP (PART OF 463) |
|
2012-2012 |
|
| 466 |
|
GEAR, O/PMP IDLER (PART OF 463) |
|
2012-2012 |
|
| 468 |
|
BOLT, O/PMP CVR (PART OF 463) |
|
2012-2012 |
|
| 470 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 463) |
|
2012-2012 |
|
| 471 |
|
SPRING, OIL PRESS RLF VLV (PART OF 463) |
|
2012-2012 |
|
| 472 |
|
VALVE, OIL PRESS RLF (PART OF 463) |
|
2012-2012 |
|
| 474 |
|
RETAINER, OIL PRESS RLF VLV SPR (PART OF 463) |
|
2012-2012 |
|
| 475 |
11900371 |
BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (PART OF 463) |
|
2010-2012 |
03 |
| 490 |
12640455 |
NOZZLE, PSTN OIL (INCLS 491) |
DM (LFW, LFX) |
2012-2012 |
04 |
| 491 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 490) |
|
2010-2012 |
03 |
| 728 |
12621649 |
SENSOR, ENG OIL PRESS (INCLS 729) (PART OF 440) (MATING CONN W/LEADS USE 88988301) (ACDelco #D1800C) |
DM (LFW, LFX) |
2012-2012 |
01 |
| 729 |
|
SEAL, ENG OIL PRESS SEN (O RING) (PART OF 440, 728) |
|
2012-2012 |
|
| 900 |
11588734 |
BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (PART OF 400) |
|
2010-2012 |
04 |
