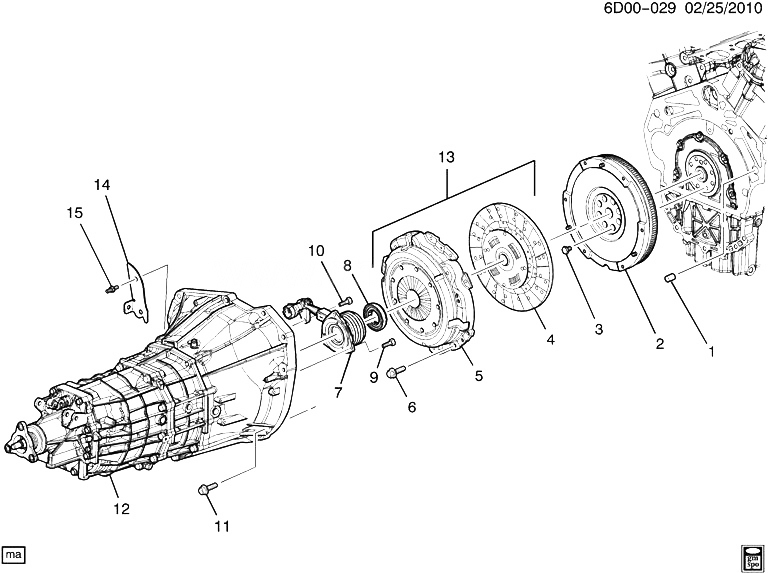

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597210 |
PIN, TRANS LOC |
DM (MV7) |
2008-2012 |
02 |
| 002 |
24245480 |
FLYWHEEL, ENG |
DM (LFW) |
2012-2012 |
01 |
| 003 |
11588884 |
BOLT, HEX SOC HD, M10X1X24, 21 THD, 15.9 OD, 10.9, GMW3179G, HDR PT (FLYWHL) |
|
2008-2012 |
08 |
| 004 |
|
PLATE, CLU PRESS (PART OF 13) |
|
2012-2012 |
|
| 005 |
|
PLATE, CLU DRVN (PART OF 13) |
|
2012-2012 |
|
| 006 |
11611397 |
BOLT, CLU PRESS PLT |
DM (MV7, MN6) |
2010-2012 |
06 |
| 007 |
|
CYLINDER, CLU ACTR (PART OF 12) (INCLS 8) |
|
2012-2012 |
|
| 008 |
|
BEARING, CLU REL (PART OF 7, 12) |
|
2012-2012 |
|
| 009 |
89048559 |
BOLT, CLU ACTR (PART OF 12) (M8X1.25X20) (4.104) |
DM (LF1, LLT, MV7, JJB) |
2010-2012 |
03 |
| 010 |
89058852 |
BOLT, CLU ACTR (PART OF 12) (M6X1.0X20) |
DM (LF1, LLT, MV7, JJB) |
2010-2012 |
01 |
| 011 |
11515770 |
BOLT, HFH, RED BODY, M10X1.5X50, THD 22.3, 9.8, 7114, PZOR (TRANS) |
|
2008-2012 |
AR |
| 011 |
|
BOLT, TRANS |
|
2009-2012 |
|
| 012 |
24242917 |
TRANSMISSION, MAN (INCLS 7-10) (SEE GROUP 04.000 TRANSMISSION ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
DM (MV7) |
2008-2012 |
01 |
| 013 |
19257348 |
PLATE KIT, CLU PRESS DRVN (W/ CVR) (INCLS 4, 5) |
DM (MV7) |
2010-2012 |
01 |
| 014 |
24222918 |
COVER, TRANS (0.679) |
DM |
2010-2012 |
01 |
| 015 |
24242043 |
STUD, TRANS CVR (M6X1X18/M6X1X14) (0.679) |
DM (JJB, MN6) |
2009-2012 |
01 |
