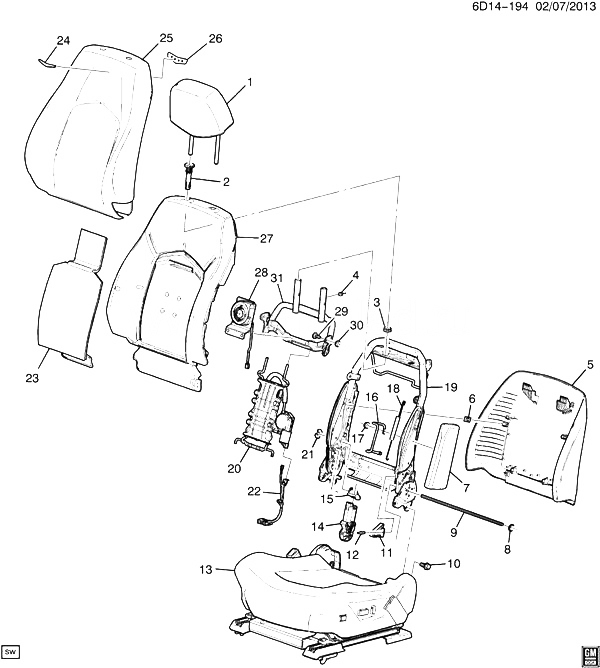

(6D14-194) 2011 DM69 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (VENTED/HEATED KB6, EXC RECARO W2E) CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20867412 RESTRAINT, D/SEAT HD (EBONY) DM35-69 (EBS, 01G) 2011-2011 01
001 20867414 RESTRAINT, D/SEAT HD (CASHMERE) DM (01D) 2011-2012 01
001 20867413 RESTRAINT, D/SEAT HD (TITANIUM) DM35-47-69 (AQ9, EBS, ECH, 01C) 2011-2012 01
002 25785786 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) DM (01D) 2011-2012 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2011-2012 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DM (01G) 2011-2012 01
002 25785789 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) DM (01D) 2011-2012 01
002 25785791 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2011-2012 01
002 25908165 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2011-2012 01
003 25994444 RETAINER, D/SEAT H/RST GDE D35-47-69 2011-2012 01
004 25995123 BUMPER, F/SEAT BK DM 2011-2012 02
005 20853737 PANEL, D/SEAT BK FIN (INCLS 6) (CASHMERE) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-69 (AQ9, 01D) 2011-2011 01
005 25939329 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM (AQ9, 01G) (EXC AL2) 2011-2012 01
005 25939489 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM69 (AH8, AQ9, 01G) 2011-2011 01
005 25939325 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM35-69 (AL2, AQ9, A45, ECH, 01G) 2011-2012 01
005 25939330 PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM69 (AQ9, ECH, 01C) 2011-2012 01
005 25939323 PANEL, D/SEAT BK FIN (INCLS 6) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DM (AQ9, 01D) 2011-2012 01
005 25939325 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM (AL2, AQ9, A45, EBS, 01G) 2011-2012 01
005 25939326 PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DM69 (01C) 2011-2011 01
005 25939330 PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-69 (AQ9, EBS, 01C) (EXC KB6) 2011-2011 01
006 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) 2011-2012 04
007 20970105 AIRBAG, D/SEAT SI D35-69 2011-2012 01
008 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 19) 2011-2012 02
009 15894212 BAR, F/SEAT BK FRM CR (PART OF 19) DM, DN 2011-2012 02
010 25828643 BOLT, F/SEAT (PART OF 19) DM 2011-2012 08
011 25994443 BRACKET, D/SEAT (11.419) DM 2011-2012 02
012 RIVET, D/SEAT ADJR BRKT 2011-2011
013 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2011-2012
014 15894214 ACTUATOR, D/SEAT RECL (PART OF 19) DM 2011-2012 01
015 BRACKET, D/SEAT RECL ACTR (PART OF 19) 2011-2011
016 25994418 BRACKET, D/SEAT SI AIRBAG DM, DN (AQ9) 2011-2012 01
017 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (PART OF 19) 2011-2012 02
018 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2011-2012 02
019 25807066 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) DM35-69 (AH8, EBS, ECH) 2011-2012 01
019 25807063 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) DM69 (AL2, A45, ECH, KB6) (EXC AX4, KA1) 2011-2011 01
019 25807063 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) DM35-69 (AL2, AQ9, A45, EBS) (EXC AX4) 2011-2011 01
019 25807063 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) DM35-69 (AL2, AQ9, AX4, A45, EBS) 2011-2011 01
020 25939289 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM35-69 (AL2, AQ9, A45, EBS) 2011-2012 01
021 CLIP, ACTUATOR D/SEAT RECL) (PART OF 19) 2011-2011
022 25994400 HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) DM, DN35-69 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2011-2012 01
023 25994412 MAT, F/SEAT BK VENT FAN DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2011-2011 01
024 22958608 PANEL, F/SEAT BK UPR FIN (EMBLEM) DM69 2011-2011 01
025 22737826 COVER, D/SEAT BK (CASHMERE) DM35-69 (AL2, A45, EBS, KB6, 01D) (EXC KA1) 2011-2012 01
025 22737827 COVER, D/SEAT BK (EBONY) DM35-69 (AL2, A45, EBS, KB6, 01G) (EXC KA1) 2011-2011 01
025 22737828 COVER, D/SEAT BK (TITANIUM) DM35-69 (AL2, A45, EBS, KB6, 01C) (EXC KA1) 2011-2012 01
026 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM69 2011-2011 01
027 25939292 PAD, F/SEAT BK DM35-69 (AQ9, EAM) (EXC AL2, A45) 2011-2012 01
027 25939293 PAD, D/SEAT BK (HT/VENT) DM35-69 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2011-2012 01
028 25939274 BLOWER, D/SEAT BACK VENTILATION HEAT COOL DM (EBS, KB6) 2011-2011 01
029 BOLT, F/SEAT H/RST 2011-2012
030 25995124 BUSHING, F/SEAT BK PIV DM 2011-2012 02
031 25994442 SUPPORT, D/SEAT H/RST DM35-69 2011-2012 01
