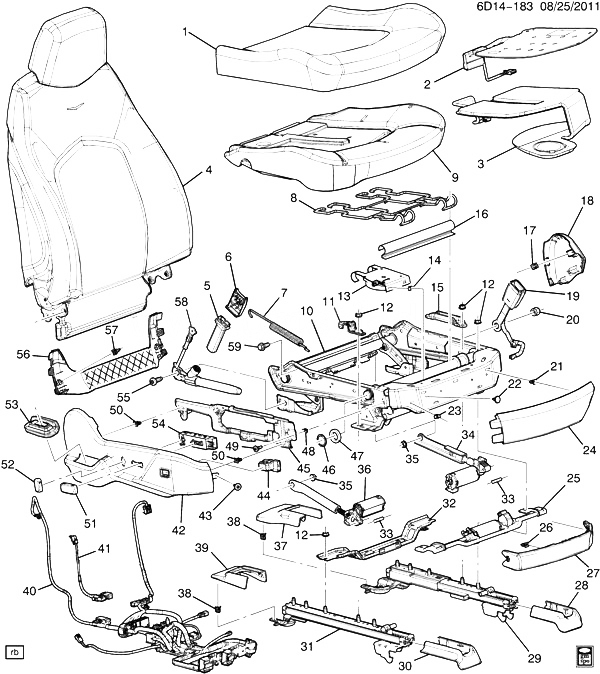

(6D14-183) 2011-2013 DR35-69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (PWR ADJUSTER AH8,PWR LUMBAR AL2,VENTED/HEATED KB6, EXC W2E) CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25780354 COVER, P/SEAT CUSH (EBONY) DR35-69 (AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) (EXPORT) 2011-2011 01
001 20981867 COVER, P/SEAT CUSH (CASHMERE) DR35-69 (AH8, AL2, AQ9, KB6, 01D) (EXC KA1) (EXPORT) 2011-2013 01
001 20981868 COVER, P/SEAT CUSH (TITANIUM) DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6, 01C) (EXC KA1) (EXPORT) 2011-2013 01
002 20778921 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3, 9) (W/PAD MAT) DR (EBS, KB6) (EXC KA1) (EXPORT) 2011-2013 01
003 MAT, F/SEAT VENT FAN (PART OF 2) 2011-2013
004 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) 2011-2013
005 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 6) (EBONY) (LOWER) DR35-69 (01G) 2011-2011 02
005 22766990 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 6) (CASHMERE) (LOWER) D35-69 (01D) 2011-2011 02
005 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 6) (TITANIUM) (LOWER) DR35-69 (01C) 2011-2011 02
006 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 5) 2011-2013
007 SPRING, P/SEAT ADJR VERT ASST (PART OF 10) 2011-2013
008 15894132 WIRE, P/SEAT CUSH PAD (PART OF 10) DR (EXPORT) 2011-2013 01
009 PAD, P/SEAT CUSH (PART OF 2) 2011-2013
010 20993910 FRAME, P/SEAT CUSH (INCLS 7, 8, 11, 12, 15, 16, 25, 29, 31-36, 46, 47) (HAS BOLT HOLE NOT A STUD) DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) 2011-2011 01
011 BRACKET, P/SEAT CUSH FRM RR OTR (PART OF 10) 2011-2013
012 NUT, P/SEAT CUSH FRM (PART OF 10) 2011-2013
013 25780793 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL (INCLS 14, 22) DR35-69 (KB6) (EXPORT) 2011-2013 01
014 NUT, P/SEAT BACK VENTILATION HEAT COOL BLO (PART OF 13) 2011-2013
015 BRACKET, P/SEAT CUSH FRM FRT INR (PART OF 10) 2011-2013
016 INSULATOR, P/SEAT CUSH FRM (PART OF 10) 2011-2013
017 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) 2011-2013 01
018 15947249 COVER, P/SEAT INR RECL FIN (INCLS 17) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
018 15947251 COVER, P/SEAT INR RECL FIN (INCLS 17) (EBONY) DR35-69 (01G) (EXPORT) 2011-2013 01
018 25908341 COVER, P/SEAT INR RECL FIN (INCLS 17) (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
019 19259318 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (CASHMERE) DR35-69 (01D) (EXC AX4) (EXPORT) 2011-2011 01
019 19181819 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (EBONY) DR (AX4, 01G) (EXPORT) 2011-2011 01
019 19181820 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (CASHMERE) DR35-69 (AX4, 01C, 01D) (EXPORT) 2011-2011 01
020 NUT, P/SEAT BELT (BKL SI) (PART OF 19) 2011-2013
021 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 24) 2011-2013 03
022 RETAINER, P/SEAT HTR CONT MDL (PART OF 13) 2011-2013
023 NUT, P/SEAT 2011-2013
024 15947191 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
024 15947193 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (EBONY) DR35-69 (01G) (EXPORT) 2011-2013 01
024 25908332 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
025 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 10) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DR35-69 (EXPORT) 2011-2013 01
026 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 27) 2011-2013 02
027 20777456 COVER, P/SEAT ADJR FIN (INCLS 26) (EBONY) (CARPET) DR (EXPORT) 2011-2013 01
028 15947309 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
028 15947311 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
029 TRACK, P/SEAT INR ADJR (PART OF 10) 2011-2013
030 15947301 COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
030 15947303 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
031 TRACK, P/SEAT OTR ADJR (PART OF 10) 2011-2013
032 BRACE, F/SEAT CUSH FRM (PART OF 10) 2011-2013
033 RETAINER, F/SEAT ADJR ACTR (PART OF 10) 2011-2013
034 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 10) DR35-69 (EXPORT) 2011-2011 01
034 15894163 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 10) DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) 2011-2011 01
035 NUT, F/SEAT ADJR ACTR BRKT (PART OF 10) 2011-2013
036 15894172 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DR (AQ9, EAM, EBS) (EXPORT) 2011-2013 01
037 15947293 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 38) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
037 15947295 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 38) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
038 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37, 39) 2011-2013 02
039 15947285 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 38) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
039 15947287 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 38) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
040 20973022 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6) (EXC KA1) (EXPORT) 2011-2012 01
041 HARNESS, P/SEAT WRG 2011-2013
042 15947240 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 50) (EBONY) DR (01G) (EXPORT) 2011-2011 01
042 25994748 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (CASHMERE) (8 WAY W/ LUMBAR AND W/ PRETENSIONER) DR35-69 (AH8, AL2, AQ9, EBS, 01D) (EXPORT) 2011-2013 01
042 25994746 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (EBONY) (8 WAY W/ LUMBAR AND W/ PRETENSIONER) DR (AH8, AL2, AQ9, AX4, EAM, EBS, 01G) (EXPORT) 2011-2011 01
042 25908340 BEZEL, P/SEAT ADJR SW (INCLS 50) (TITANIUM) (USED W/O PRETENSIONER) DR35-69 (AH8, AL2, AQ9, EAM, EBS, 01C) (EXPORT) 2011-2013 01
043 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT ADJR FIN CVR) 2011-2013 01
044 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DR (01C) (EXPORT) 2011-2013 01
044 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DR (01G) (EXPORT) 2011-2013 01
044 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
045 25994139 BRACKET, P/SEAT RECL HDL BZL DR35-69 (AQ9, EAM, EBS) (EXPORT) 2011-2013 01
046 NUT, F/SEAT (PART OF 10) 2011-2013
047 WASHER, F/SEAT (PART OF 10) 2011-2013
048 NUT, P/SEAT 2011-2013
049 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT RECL HDL BZL BRKT) 2011-2013 04
050 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 42) 2011-2013 04
051 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
051 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
051 15889525 KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) DR35-69 (01D) (EXPORT) 2011-2013 01
052 15222985 KNOB, P/SEAT RECL (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
052 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
052 15889531 KNOB, P/SEAT RECL (CASHMERE) (16.682) DR (01D) (EXPORT) 2011-2013 01
053 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) D35-47-69 (01C) 2011-2013 01
053 25982263 COVER, F/SEAT BELT TENSR (RETR SI) (CASHMERE) (BOOT SIDE) DR (01D) (EXPORT) 2011-2013 01
054 12451497 SWITCH, P/SEAT ADJR (8-WAY) DR35-69 (EXPORT) 2011-2013 01
055 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 58) 2011-2013
056 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 57) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
056 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 57) (EBONY) (11.573) DR (01G) (EXPORT) 2011-2013 01
056 15947257 COVER, P/SEAT CUSH CLOSEOUT (INCLS 57) (CASHMERE) (11.573) DR35-69 (01D) (EXPORT) 2011-2013 01
057 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 56) 2011-2013 04
058 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 55) D35-69 2011-2013 01
059 25828643 BOLT, F/SEAT DR35-69 (EXPORT) 2011-2013 08
