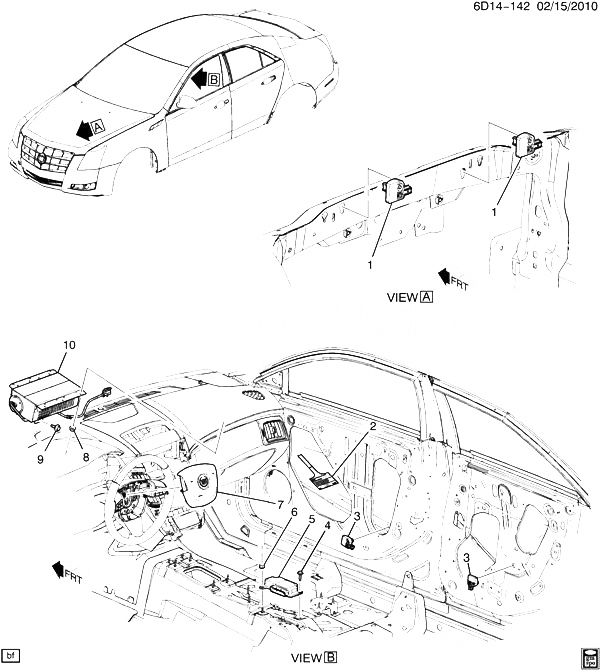

(6D14-142) 2010-2013 DM,DN,DR69 СИСТЕМА ПОДУШЕК БЕЗОПАСНОСТИ/ВОДИТЕЛЬ И ПАССАЖИР CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 13503838 SENSOR, AIRBAG F/END DISCRM (INCLS BOLT) DM, DN 2010-2013 02
001 13503838 SENSOR, AIRBAG F/END DISCRM (INCLS BOLT) DR (EXPORT) 2010-2013 02
002 21996989 TAG, I/P AIRBAG WRNG (HANGING) D69 2010-2013 01
003 13503838 SENSOR, AIRBAG SI IMP (INCLS BOLT) DM, DN 2010-2013 04
003 13503838 SENSOR, AIRBAG SI IMP (INCLS BOLT) DR (EXPORT) 2011-2013 04
004 11609989 BOLT, AIRBAG DIAGN ENGY RESV MDL (SDM CAST GROUNDING ATTACHMENT) (M6X1X25, 15 THD, 17 OD) (8.900) D 2010-2013 04
005 13580450 MODULE, AIRBAG SEN DIAGN D35-47-69 2011-2013 01
006 11561645 NUT, AIRBAG DIAGN ENGY RESV MDL (SDM CASE GROUNDING ATTACHMENT) (M6X1, 3.45THK, 13.5 OD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.915) D 2010-2013 02
007 20936094 AIRBAG, STRG WHL (EBONY) DM35-69 (EF7, Z49, 4AL, 4AM, 4AR) 2011-2013 01
007 20936095 AIRBAG, STRG WHL (COCOA) DM35-69 (EF7, Z49, 4AC) 2011-2013 01
007 25943875 AIRBAG, STRG WHL (EBONY) DN35-69 (4AL, 4AM, 4AR) 2011-2013 01
007 25943876 AIRBAG, STRG WHL (COCOA) DM35-69 (4AC) (EXC EF7, Z49) 2011-2013 01
007 25943875 AIRBAG, STRG WHL (EBONY) DM35-69 (4AL, 4AM, 4AR) (EXC EF7, Z49) 2011-2013 01
007 25943875 AIRBAG, STRG WHL (EBONY) DR35-69 (4AL, 4AM, 4AR) (EXPORT) 2010-2011 01
007 25943876 AIRBAG, STRG WHL (COCOA) DR35-69 (4AC) (EXPORT) 2011-2013 01
008 15685170 NUT, I/P AIRBAG (PSIR MODULE TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DM 2010-2013 06
008 15685170 NUT, I/P AIRBAG (PSIR MODULE TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DN 2010-2013 06
008 15685170 NUT, I/P AIRBAG (PSIR MODULE TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DR (EXPORT) 2010-2013 06
009 11561388 BOLT, I/P AIRBAG (M6X1X20, 11 THD, 17 OD) (8.900) D69 2010-2013 01
010 25992053 AIRBAG, I/P DN69 (JJD) 2010-2011 01
010 25992053 AIRBAG, I/P DM35-69 (JJD) (EXC EF7, Z49) 2011-2011 01
010 22774283 AIRBAG, I/P DM35-69 (EF7, Z49) 2011-2012 01
010 25992053 AIRBAG, I/P DR35-69 (JJD) (EXC EF7, Z49) (EXPORT) 2011-2011 01
