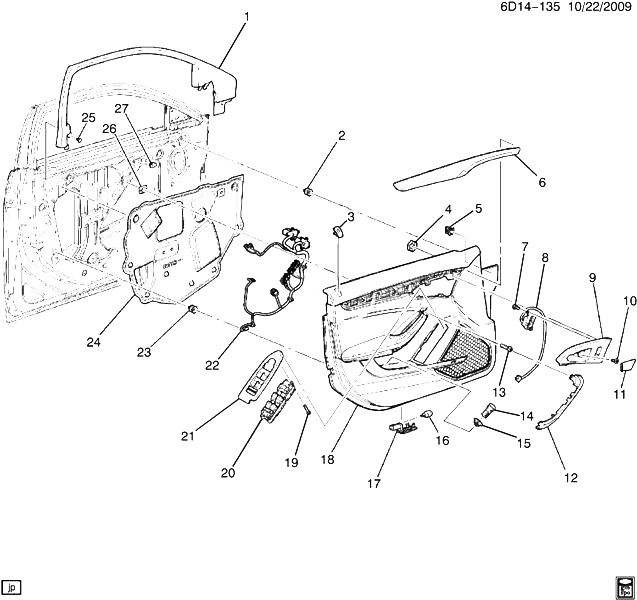

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25846021 |
MOLDING, FRT S/D GARN (INCLS 25) (EBONY) |
DM35-69 |
2010-2013 |
01 |
| 002 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 18) |
|
2009-2013 |
03 |
| 003 |
20860950 |
BEZEL, FRT S/D LKG ROD P/BUT (PART OF 18) (EBONY) |
DM69 (DR5, FBL, 1AH, 4AL) (EXC ATH) |
2010-2013 |
01 |
| 003 |
20860951 |
BEZEL, FRT S/D LKG ROD P/BUT (PART OF 18) (CASHMERE) |
DM69 (DR5, FBL, 1AE, 2A5, 4AC) (EXC ATH) |
2010-2011 |
01 |
| 003 |
20860950 |
BEZEL, FRT S/D LKG ROD P/BUT (PART OF 18) (EBONY) |
DM69 (DR5, FBL, 1AD, 4AM) (EXC ATH, TSQ) |
2011-2013 |
01 |
| 004 |
11503417 |
NUT, M6.3 STMPD TYPE SR ZC (PART OF 18) |
|
2009-2013 |
AR |
| 005 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) |
|
2009-2013 |
01 |
| 006 |
15243588 |
APPLIQUE, FRT S/D TR FIN PNL (PART OF 18) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) |
D35-69 (2A5) |
2011-2013 |
01 |
| 007 |
|
BOLT, HEX WASHER HEAD, M7X1.0X20.0, GM6202M STL, GMW3200 (PART OF 18) |
|
2009-2013 |
AR |
| 008 |
25898134 |
SWITCH, D/SEAT ADJR MEMORY (PART OF 18) (ARGENT) |
DM, DN35-47-69 |
2011-2013 |
01 |
| 009 |
|
BEZEL, FRT S/D I/S HDL (PART OF 18) |
|
2010-2013 |
|
| 010 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) |
|
2009-2013 |
01 |
| 011 |
15871923 |
COVER, FRT S/D PULL HDL (EBONY) |
DM35-69 (4AL) |
2010-2012 |
01 |
| 011 |
15871927 |
COVER, FRT S/D PULL HDL (CASHMERE) |
DM35-69 (4AC) |
2010-2013 |
01 |
| 011 |
25914599 |
COVER, FRT S/D PULL HDL (TITANIUM) |
DM35-69 (4AM) |
2010-2013 |
01 |
| 012 |
25927093 |
CAP, FRT S/D PULL HDL BOLT (EBONY) |
DM35-69 (4AL) |
2010-2012 |
01 |
| 012 |
25927097 |
CAP, FRT S/D PULL HDL BOLT (CASHMERE) |
DM35-69 (4AC) |
2010-2013 |
01 |
| 012 |
25927109 |
CAP, FRT S/D PULL HDL BOLT (TITANIUM) |
DM35-69 (4AM) |
2010-2013 |
01 |
| 013 |
03539184 |
BOLT, FRT S/D PULL HDL (14.683) |
D35-69 |
2010-2013 |
04 |
| 014 |
25796933 |
SWITCH, R/CMPT LID REL (PART OF 18) (ARGENT) (INTERIOR MOUNTED ON DOOR) (ACDelco #D1417G) |
DM, DN69 |
2009-2013 |
01 |
| 015 |
15867905 |
BEZEL, R/CMPT LID REL SW (PART OF 18) (EBONY) |
D69 (4AL) |
2010-2013 |
01 |
| 015 |
15867907 |
BEZEL, R/CMPT LID REL SW (PART OF 18) (CASHMERE) |
D47-69 (4AC) |
2011-2012 |
01 |
| 015 |
25923398 |
BEZEL, R/CMPT LID REL SW (PART OF 18) (LT TITANIUM) |
DM, DN47-69 (4AM) |
2011-2013 |
01 |
| 016 |
19115808 |
BULB, FRT S/D C/LP (PART OF 17, 18) (8.991) (ACDelco #19115808) |
D |
2009-2013 |
02 |
| 017 |
10359030 |
LAMP, CTSY (S/D LAMP) (INCLS 16) (PART OF 18) |
D69 |
2009-2013 |
04 |
| 018 |
20938711 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) (MECH LATCH) |
DM69 (A45, DR5, FBL, 1AH, 4AL) (EXC ATH, TSQ, 2A5) |
2011-2011 |
01 |
| 018 |
20938712 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (MECH LATCH) |
DM69 (A45, DR5, FBL, 1AD, 4AM) (EXC ATH, TSQ, 2A5) |
2011-2011 |
01 |
| 018 |
20938713 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (MECH LATCH) |
DM69 (A45, DR5, FBL, 1AE, 4AC) (EXC ATH, TSQ, 2A5) |
2011-2011 |
01 |
| 018 |
22815814 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (ELEC LATCH) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AD, 2A5, 4AM) (EXC TSQ) |
2011-2013 |
01 |
| 018 |
22815815 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (ELEC LATCH) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AE, 2A5, 4AC) (EXC TSQ) |
2011-2013 |
01 |
| 018 |
22815817 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (ELEC LATCH) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AE, 4AC) (EXC TSQ, 2A5) |
2011-2013 |
01 |
| 018 |
22815877 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (MECH LATCH) |
DM69 (A45, DR5, FBL, 1AD, 2A5, 4AM) (EXC ATH, TSQ) |
2011-2013 |
01 |
| 018 |
22815878 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (MECH LATCH) |
DM69 (A45, DR5, FBL, 1AE, 2A5, 4AC) (EXC ATH, TSQ) |
2011-2013 |
01 |
| 018 |
22815926 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (MECH LATCH) |
DM69 (ATG, A45, DL7, FBL, 1AD, 2A5, 4AM) (EXC TSQ, UTT) |
2011-2013 |
01 |
| 018 |
22815927 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (MECH LATCH) |
DM69 (ATG, A45, DL7, FBL, 1AE, 2A5, 4AC) (EXC TSQ, UTT) |
2011-2013 |
01 |
| 018 |
22815929 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (CASHMERE) (MECH LATCH) |
DM69 (ATG, A45, DL7, FBL, 1AE, 4AC) (EXC TSQ, UTT, 2A5) |
2011-2013 |
01 |
| 018 |
22786121 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) (INCLS I/S DOOR HANDLE) (MECH LATCH) |
DM69 (ATG, A45, DL7, FBL, 1AH, 4AL) (EXC TSQ, UTT, 2A5) |
2011-2011 |
01 |
| 018 |
22786096 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AH, 2A5, 4AL) (EXC TSQ) |
2011-2011 |
01 |
| 018 |
22786099 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) |
DM (ATG, A45, DL7, FBL, UTT, 1AH, 4AL) (EXC TSQ, 2A5) |
2011-2011 |
01 |
| 018 |
22786118 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) |
DM69 (ATG, A45, DL7, FBL, 1AH, 2A5, 4AL) (EXC TSQ, UTT) |
2011-2011 |
01 |
| 018 |
22786145 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (EBONY) |
DM69 (A45, DR5, FBL, 1AH, 2A5, 4AL) (EXC ATH, TSQ) |
2011-2011 |
01 |
| 018 |
22815816 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (ELEC LATCH) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AD, 4AM) (EXC TSQ, 2A5) |
2011-2011 |
01 |
| 018 |
22815928 |
TRIM, FRT S/D (INCLS 2-9, 14-17, 19-23) (TITANIUM) (MECH LATCH) |
DM69 (ATG, A45, DL7, FBL, 1AD, 4AM) (EXC TSQ, UTT, 2A5) |
2011-2011 |
01 |
| 019 |
11561274 |
BOLT, FRT S/D WDO SW (PART OF 18) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) |
D |
2010-2013 |
03 |
| 020 |
25970550 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) |
DM35-69 (DL7, FBL, UA6) (EXC ATG) |
2010-2011 |
01 |
| 020 |
25970550 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) (10.485) |
DM35-69 (DL7, FBL, UA6) (EXC ATG) |
2010-2011 |
01 |
| 020 |
22810050 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) |
DM35-69 (DR5, 1AD, 1AH, 4AC, 4AL, 4AM) (EXC ATH) |
2010-2013 |
01 |
| 020 |
22810050 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) (10.485) |
DM35-69 (DR5, 1AD, 1AH, 4AC, 4AL, 4AM) (EXC ATH) |
2010-2013 |
01 |
| 020 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) |
DM35-69 (DL7, DR5, FBL, UA2) |
2010-2013 |
01 |
| 020 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) (10.485) |
DM35-69 (DL7, DR5, FBL, UA2) |
2010-2013 |
01 |
| 020 |
25970546 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) |
DM69 (DL7, DR5, FBL, UA2, 4AC, 4AL, 4AM) (EXC ATG, TSQ) (EXPORT) |
2010-2011 |
01 |
| 020 |
25970546 |
SWITCH, DR LK SI WDO (PART OF 18) (ARGENT) (10.485) |
DM69 (DL7, DR5, FBL, UA2, 4AC, 4AL, 4AM) (EXC ATG, TSQ) (EXPORT) |
2010-2011 |
01 |
| 021 |
15867890 |
BEZEL, FRT S/D WDO SW (PART OF 18) (EBONY) |
DM69 (DR5, 4AL) |
2010-2013 |
01 |
| 021 |
15867892 |
BEZEL, FRT S/D WDO SW (PART OF 18) (CASHMERE) |
DM69 (DR5, 1AE, 4AC) |
2010-2013 |
01 |
| 021 |
25920929 |
BEZEL, FRT S/D WDO SW (PART OF 18) (LT TITANIUM) (WDO/PWR MIR/DR LK) |
DM69 (DR5, FBL, 1AD, 4AM) |
2010-2013 |
01 |
| 021 |
25920925 |
BEZEL, FRT S/D WDO SW (PART OF 18) (LT TITANIUM) (WDO/PWR MIR/FLD MIR/DR LK) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AD, 4AM) (EXC TSQ, 2A5) |
2011-2013 |
01 |
| 021 |
25920925 |
BEZEL, FRT S/D WDO SW (PART OF 18) (LT TITANIUM) (WDO/PWR MIR/FLD MIR/DR LK) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AD, 2A5, 4AM) (EXC TSQ) |
2011-2011 |
01 |
| 021 |
15867893 |
BEZEL, FRT S/D WDO SW (PART OF 18) (EBONY) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AH, 2A5, 4AL) (EXC TSQ) |
2011-2013 |
01 |
| 021 |
15867893 |
BEZEL, FRT S/D WDO SW (PART OF 18) (EBONY) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AH, 4AL) (EXC TSQ, 2A5) |
2011-2013 |
01 |
| 021 |
15867895 |
BEZEL, FRT S/D WDO SW (PART OF 18) (CASHMERE) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AE, 2A5, 4AC) (EXC TSQ) |
2011-2013 |
01 |
| 021 |
15867895 |
BEZEL, FRT S/D WDO SW (PART OF 18) (CASHMERE) |
DM69 (ATG, A45, DL7, FBL, UTT, 1AE, 4AC) (EXC TSQ, 2A5) |
2011-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (A45, DL7, FBL, UA2, 2A5) (EXC ATG, ATH, TSQ) |
2010-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (A45, DL7, FBL, UA2) (EXC ATG, ATH, TSQ, 2A5) |
2010-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (A45, DL7, FBL, UA6, 2A5) (EXC ATG, ATH, TSQ) |
2010-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (A45, DL7, FBL, UA6) (EXC ATG, ATH, TSQ, 2A5) |
2010-2013 |
01 |
| 022 |
20928117 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (DR5, FBL) (EXC ATH, TSQ) |
2010-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (ATG, A45, DL7, FBL, UTT, 2A5) (EXC TSQ) |
2011-2013 |
01 |
| 022 |
20845902 |
HARNESS, FRT S/D WRG (PART OF 18) |
DM69 (ATG, A45, DL7, FBL, UTT) (EXC TSQ, 2A5, 2CK) |
2011-2013 |
01 |
| 023 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 18) |
|
2009-2013 |
05 |
| 024 |
20794762 |
DEFLECTOR, FRT S/D WAT |
DM35-69 |
2010-2013 |
01 |
| 025 |
20699808 |
RETAINER, FRT S/D G/MLDG (PUSH IN) (PART OF 1) (BLACK) (12.0MM) (X-MAS TREE) (14.875) |
D69 |
2009-2013 |
04 |
| 026 |
20310739 |
NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) |
D35-69 |
2010-2013 |
04 |
| 027 |
11570654 |
NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
D69 |
2009-2013 |
02 |
