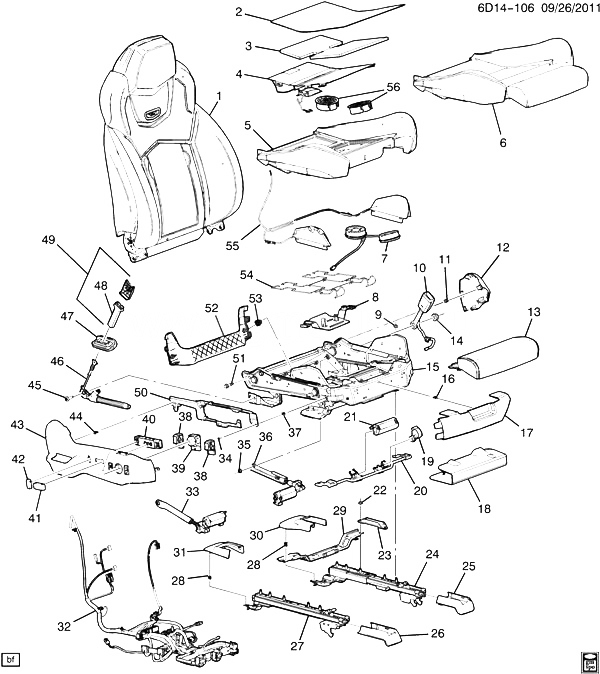

(6D14-106) 2010-2013 DM69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (VENTED/HEATED KB6, RECARO W2E) CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, P/SEAT BK (W/HTR) (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) 2010-2013
002 HEATER, P/SEAT CUSH (PART OF 6) 2010-2013
003 MAT, F/SEAT VENT FAN (PART OF 6) 2010-2013
004 SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 6) 2010-2013
005 PAD, P/SEAT CUSH (PART OF 6) 2010-2013
006 25780356 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (CASHMERE) DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01D) (EXC KA1) 2010-2013 01
006 25780358 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (EBONY) DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) 2010-2011 01
006 25908925 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (TITANIUM) DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01C) (EXC KA1) 2010-2013 01
006 20903436 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (EBONY) (INCLS PASS PRES SENSOR) DM, DN69 (AH8, AL2, ECH, KB6, W2E, 01G) (EXC KA1) 2010-2011 01
006 20903437 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (TITANIUM) DM, DN69 (AH8, AL2, ECH, KB6, W2E, 01C) (EXC KA1) 2010-2013 01
006 20830833 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (EBONY) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2010-2011 01
006 22795266 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (TITANIUM) DM35-69 (AQ9, EAM, 01C) (EXC AH8, AL2) 2010-2013 01
007 20793341 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL DM69 (ECH, KB6) (EXC KA1) 2010-2011 01
007 25780793 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL DM (EBS, KB6) (EXC KA1) 2010-2013 01
008 20859963 BRACKET, P/SEAT RR (PART OF 15) (SUPPRESSION MODULE) DM69 (W2E) 2010-2011 01
009 NUT, P/SEAT (PART OF 15) 2010-2013
010 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (EBONY) DM, DN (01G, 02W) (EXC AX4) 2011-2011 01
010 19259318 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (CASHMERE) DM, DN (01D) (EXC AX4) 2011-2011 01
010 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (TITANIUM) DM, DN (01C) (EXC AX4) 2011-2011 01
010 19181819 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (EBONY) DM, DN (AX4, 01D, 01G) (EXPORT) 2011-2011 01
011 CLIP, P/SEAT (PART OF 12) 2010-2013
012 20875405 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DM (01G) 2010-2013 01
012 20875406 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DM (01C) 2010-2013 01
012 20875408 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DM (01G) 2010-2013 01
012 20875409 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DM (01C) 2010-2013 01
013 PAD, F/SEAT CUSH FRT EXTN (PART OF 6) 2010-2013
014 NUT, P/SEAT BELT (BKL SI) (PART OF 10) 2010-2013
015 20930930 FRAME, P/SEAT CUSH (INCLS 8, 9, 19-24, 27, 29, 33, 35-37, 54) (RECARO) DM69 (AH8, AL2, ECH, KB6, W2E) (EXC KA1) 2011-2013 01
015 20993913 FRAME, P/SEAT CUSH (INCLS 8, 9, 19-24, 27, 29, 33, 35-37, 54) (HAS BOLT HOLE NOT A STUD) DM35-69 (AQ9, EAM) (EXC AH8, AL2) 2011-2012 01
015 20993914 FRAME, P/SEAT CUSH (INCLS 8, 9, 19-24, 27, 29, 33, 35-37, 54) (HAS BOLT HOLE NOT A STUD) DM35-69 (AH8, AL2, AQ9, EBS) 2011-2013 01
016 CLIP, P/SEAT (PART OF 17) 2010-2013
017 20859965 PANEL, P/SEAT CUSH FIN (INCLS 16) (EBONY) (FRONT NOSE COVER) DM69 (AH8, AL2, ECH, KB6, W2E, 01G) (EXC KA1) 2010-2011 01
017 20859966 PANEL, P/SEAT CUSH FIN (INCLS 16) (TITANIUM) (FRONT NOSE COVER) DM69 (AH8, W2E, 01C) 2010-2011 01
018 20777456 COVER, P/SEAT ADJR FIN (EBONY) (CARPET) DM, DN 2010-2013 01
019 MODULE, F/SEAT ADJR MEMORY (PART OF 15, 20) 2010-2013
020 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 15) (INCLS 19, 21) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DM 2011-2013 01
021 ACTUATOR, P/SEAT ADJR (PART OF 15, 20) 2010-2013
022 NUT, P/SEAT (PART OF 15) 2010-2013
023 BRACE, P/SEAT (PART OF 15) 2010-2013
024 TRACK, P/SEAT INR ADJR (PART OF 15) 2010-2013
025 15947313 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) DM35-69 (01D) 2010-2013 01
025 15947315 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2010-2013 01
026 15947305 COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) DM35-69 (01D) 2010-2013 01
026 15947307 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2010-2013 01
027 TRACK, P/SEAT OTR ADJR (PART OF 15) 2010-2013
028 CLIP, P/SEAT (PART OF 30, 31) 2010-2013
029 BRACE, P/SEAT (PART OF 15) 2010-2013
030 15947297 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 28) (CASHMERE) DM35-69 (01D) 2010-2013 01
030 15947299 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) DM69 (01C, 01G) 2010-2013 01
031 15947289 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 28) (CASHMERE) DM35-69 (01D) 2010-2013 01
031 15947291 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 28) (EBONY) DM35-69 (01C, 01G) 2010-2013 01
032 15894132 WIRE, P/SEAT CUSH PAD DM35-47-69 2011-2013 01
033 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 15) DM 2011-2011 01
034 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2010-2013 09
035 NUT, P/SEAT (PART OF 15) 2010-2013
036 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 15) DM (AH8, AL2) 2010-2013 01
037 NUT, P/SEAT (PART OF 15) 2010-2013
038 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DM (01D) 2010-2013 01
038 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DM (EBS, ECH, 01C) 2010-2013 01
038 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DM (01G) 2010-2011 01
038 25802505 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) (16.682) DM69 (ECH, 01C) (EXC KA1) 2010-2011 01
039 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DM (01D) 2010-2013 01
039 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DM (EBS, ECH, 01C) 2010-2013 01
039 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DM (01G) 2010-2011 01
039 25802505 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) (16.682) DM69 (ECH, 01C) (EXC KA1) 2010-2011 01
040 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DM 2010-2013 01
041 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DM, DN (01C) 2011-2013 01
041 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN35-47-69 (01G) 2011-2013 01
041 15889525 KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) DM35-69 (01D) 2010-2013 01
042 15222985 KNOB, P/SEAT RECL (TITANIUM) DM (01C) 2010-2013 01
042 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DM35-69 (01G) 2010-2013 01
042 15889531 KNOB, P/SEAT RECL (CASHMERE) (16.682) DM35-69 (01D) 2011-2013 01
043 15947244 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 44) (EBONY) DM35-69 (AH8, AL2, AQ9, 01G) 2010-2012 01
043 25908858 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 44) (TITANIUM) (8-WAY) DM (AH8, AL2, 01C) 2010-2011 01
043 25930325 BEZEL, P/SEAT ADJR SW (INCLS 44) (TITANIUM) DM35-69 (AQ9, EAM, 01C) (EXC AH8) 2010-2011 01
043 20930935 BEZEL, P/SEAT ADJR SW (INCLS 44) (EBONY) DM69 (AH8, ECH, KB6, W2E, 01G) (EXC KA1) 2010-2011 01
043 25994757 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 44) (TITANIUM) DM (AQ9, EBS, ECH, EWH, 01C) 2011-2013 01
043 25994758 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 44) (CASHMERE) DM35-69 (AH8, AL2, AQ9, EBS, 01D) 2011-2013 01
043 20793324 BEZEL, P/SEAT ADJR SW (INCLS 44) (TITANIUM) DM69 (AH8, ECH, KB6, W2E, 01C) (EXC KA1) 2010-2011 01
043 25994756 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 44) (EBONY) DM, DN35-69 (AQ9, EBS, ECH, EWH, 01G) 2011-2013 01
043 25994763 BEZEL, P/SEAT ADJR SW (INCLS 44) (EBONY) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2011-2013 01
044 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 43) 2010-2013 04
045 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 46) 2010-2013
046 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 45) D35-69 2011-2013 01
047 25982264 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) DM35-69 (W2E, 01C) 2010-2013 01
047 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DM (01G) 2010-2013 01
047 25982263 COVER, F/SEAT BELT TENSR (RETR SI) (CASHMERE) (BOOT SIDE) DM (01D) 2011-2013 01
047 25982264 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) DM35-69 (01C) (EXC AL2) 2011-2013 01
048 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 49) 2010-2011
049 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (EBONY) (LOWER) DN (01G, 02W) 2010-2011 02
049 22766990 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (CASHMERE) (LOWER) D35-69 (01D) 2010-2011 01
049 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (TITANIUM) (LOWER) D35-69 (01C) 2010-2011 01
050 20930369 BRACKET, F/SEAT RSR DM69 (AL2, A45, ECH, KB6, W2E) (EXC KA1) 2010-2013 01
050 20930370 BRACKET, F/SEAT RSR DM69 (AH8, AL2, ECH, KB6, W2E) (EXC KA1) 2010-2012 01
051 25828643 BOLT, F/SEAT DM 2011-2013 08
052 15947257 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (CASHMERE) (11.573) DM (01D) 2010-2013 01
052 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (EBONY) (11.573) DM, DN (01G) 2010-2013 01
052 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
053 CLIP, P/SEAT INR ADJR RR FIN (PART OF 52) 2010-2013
054 WIRE, P/SEAT CUSH PAD (PART OF 15) 2010-2013
055 20793003 BLADDER, F/SEAT CUSH SI BOLS (CUSH FRAME) DM69 (W2E) 2010-2011 04
056 FAN, F/SEAT CUSH VENT (PART OF 6) 2010-2013
