| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20939575 |

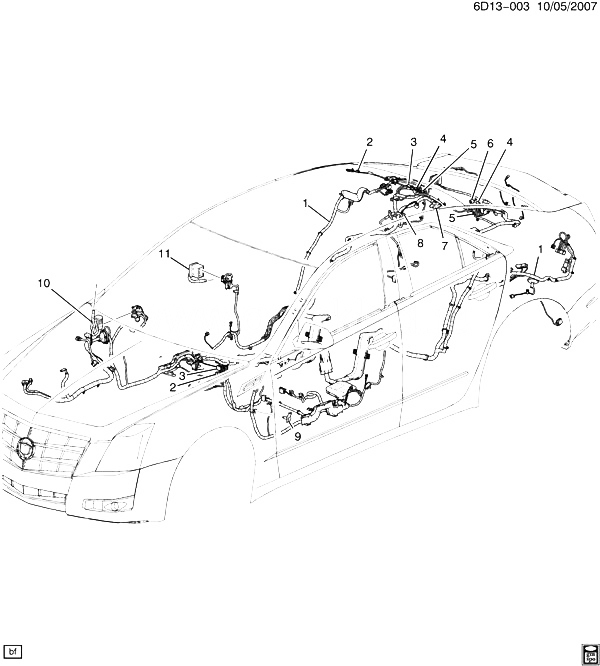

HARNESS, BODY WRG (INCLS 2-8) (BUILT BEFORE 2/28/11) (FOR 2ND DES SEE 22773634) |
DM69 (N38, UAV, UE1, UQS) (EXC T79) (1ST DES) |
2011-2011 |
01 |
| 001 |
20939549 |
HARNESS, BODY WRG (INCLS 2-8) |
DN69 (U2X, U2Y) |
2011-2011 |
01 |
| 001 |
20939559 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (T79, UQS, U2Y) (EXC N38) |
2011-2011 |
01 |
| 001 |
20939561 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (A45, N38, T79, UQA) |
2011-2011 |
01 |
| 001 |
20939562 |
HARNESS, BODY WRG (INCLS 2-8) (BUILT BEFORE 2/28/11) (FOR 2ND DES SEE 22773626) |
DM69 (T79, UQA) (EXC A45) (1ST DES) |
2011-2011 |
01 |
| 001 |
20939563 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (N38, T79, UQS, U2X) |
2011-2011 |
01 |
| 001 |
20939564 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (T79, UQS, U2X) (EXC N38) |
2011-2011 |
01 |
| 001 |
20939566 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (A45, UQA) (EXC N38, T79, UE1) |
2011-2011 |
01 |
| 001 |
20939582 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (N38, UAV, UQS) (EXC T79, UE1) |
2011-2011 |
01 |
| 001 |
22773615 |
HARNESS, BODY WRG (INCLS 2-8) |
DN69 (UAV) |
2011-2011 |
01 |
| 001 |
22773642 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (UE1, UQA) (EXC A45, T79) |
2011-2011 |
01 |
| 001 |
22773634 |
HARNESS, BODY WRG (INCLS 2-8) (BUILT ON OR AFTER 2/28/11) (FOR 1ST DES SEE 20939575) |
DM69 (N38, UAV, UE1, UQS) (EXC T79) (2ND DES) |
2011-2011 |
01 |
| 001 |
22773635 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (A45, N38, UE1, UQA) (EXC T79) |
2011-2011 |
01 |
| 001 |
22773636 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (UE1, UQS, U2S) (EXC N38) |
2011-2011 |
01 |
| 001 |
22773637 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (A45, UE1, UQA) (EXC N38, T79) |
2011-2011 |
01 |
| 001 |
22773638 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (UAV, UE1, UQS) (EXC N38, T79) |
2011-2011 |
01 |
| 001 |
22773639 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (N38, UE1, UQS, U2S) |
2011-2011 |
01 |
| 001 |
20939551 |
HARNESS, BODY WRG (INCLS 2-8) |
DR69 (UQS) (EXC N38) (EXPORT) |
2011-2011 |
01 |
| 001 |
20939554 |
HARNESS, BODY WRG (INCLS 2-8) |
DR69 (N38, UQS) (EXPORT) |
2011-2011 |
01 |
| 001 |
22773622 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (A45, T79, UQA) (EXC N38) (EXPORT) |
2011-2011 |
01 |
| 001 |
22773624 |
HARNESS, BODY WRG (INCLS 2-8) |
DM69 (N38, T79, UQS, U2Y) (EXPORT) |
2011-2011 |
01 |
| 001 |
22773626 |
HARNESS, BODY WRG (INCLS 2-8) (BUILT ON OR AFTER 2/28/11) (FOR 1ST DES SEE 20939562) |
DM69 (T79, UQA) (EXC A45) (2ND DES) (EXPORT) |
2011-2011 |
01 |
| 002 |
20794100 |
CABLE, RDO ANT (PART OF 1) (BODY WRG) (ACDelco #20794100) |
D69 |
2010-2011 |
01 |
| 004 |
22817067 |
CABLE, VEH LOC ANT (PART OF 1) |
DM, DN47-69 |
2011-2012 |
01 |
| 006 |
88988999 |
RESISTOR, DATA LINK (LAN TERMINATOR) (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DM69 |
2008-2012 |
01 |
| 006 |
88988999 |
RESISTOR, DATA LINK (LAN TERMINATOR) (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) (ACDelco #88988999) |
DR69 (EXPORT) |
2011-2012 |
01 |
| 007 |
20794102 |
CABLE, BAT POS (PART OF 1) (ACDelco #20794102) |
D69 |
2010-2011 |
01 |
| 008 |
20869203 |
HOSE, BAT VENT (PART OF 1) (FROM FIRST BAT VENT HOSE TO BATTERY) (ACDelco #20869203) |
D35-47-69 (LF1, LLT, LSA) |
2011-2011 |
01 |
| 009 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (BODY WRG HARN CONN BRKT) |
|
2008-2013 |
02 |
| 010 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 011 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
