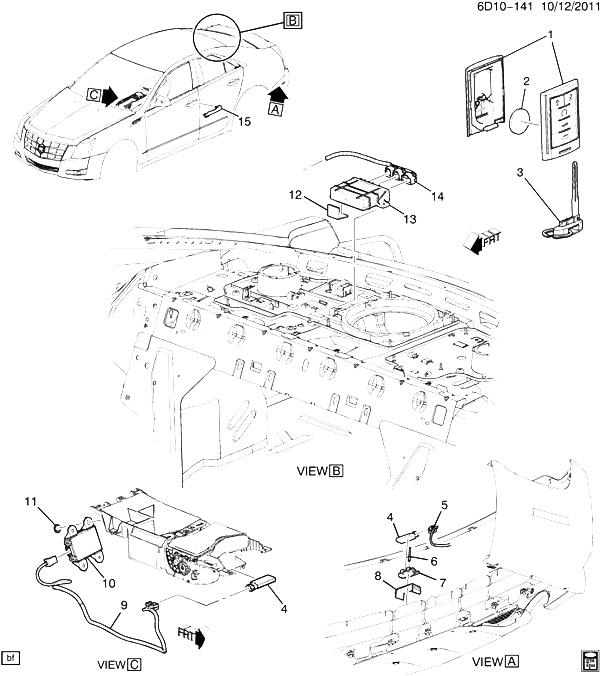

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25943676 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC W/REMOTE START #1) |
D69 (ATH, BTM, BTV, XL7) (EXC CV5) |
2010-2013 |
01 |
| 001 |
25943677 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC W/REMOTE START #2) (10.526) |
D69 (ATH, BTM, BTV, XL7) (EXC CV5) |
2010-2013 |
01 |
| 001 |
25943677 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC W/REMOTE START #2) |
D69 (ATH, BTM, BTV, XL7) (EXC CV5) |
2010-2013 |
01 |
| 001 |
25943676 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC W/REMOTE START #1) (10.526) |
D69 (ATH, BTM, BTV, XL7) (EXC CV5) |
2010-2013 |
01 |
| 001 |
20912283 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (ASIA TRANSMITTER W/ REMOTE START #2) (10.526) |
D47-69 (ATH, BTM, BTV, CV5, XL7) |
2011-2013 |
01 |
| 001 |
20912283 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (ASIA TRANSMITTER W/ REMOTE START #2) |
D47-69 (ATH, BTM, BTV, CV5, XL7) |
2011-2013 |
01 |
| 001 |
25946298 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC FOB WITHOUT REMOTE START 1) |
D47-69 (ATH, BTM, XL7) (EXC BTV, CV5) |
2011-2013 |
01 |
| 001 |
25946298 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC FOB WITHOUT REMOTE START 1) (10.526) |
D47-69 (ATH, BTM, XL7) (EXC BTV, CV5) |
2011-2013 |
01 |
| 001 |
25946299 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC FOB WITHOUT REMOTE START 2) (10.526) |
D47-69 (ATH, BTM, XL7) (EXC BTV, CV5) |
2011-2013 |
01 |
| 001 |
25946299 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (DOMESTIC FOB WITHOUT REMOTE START 2) |
D47-69 (ATH, BTM, XL7) (EXC BTV, CV5) |
2011-2013 |
01 |
| 001 |
20912282 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (ASIA TRANSMITTER W/ REMOTE START #1) (10.526) |
D47-69 (ATH, BTM, BTV, CV5, XL7) (EXPORT) |
2011-2013 |
01 |
| 001 |
20912282 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (ASIA TRANSMITTER W/ REMOTE START #1) |
D47-69 (ATH, BTM, BTV, CV5, XL7) (EXPORT) |
2011-2013 |
01 |
| 001 |
20912287 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (10.526) |
D47-69 (ATH, BTM, BTV, CV5, XL7) (EXPORT) |
2011-2011 |
01 |
| 001 |
20912287 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) |
D47-69 (ATH, BTM, BTV, CV5, XL7) (EXPORT) |
2011-2011 |
01 |
| 001 |
25943678 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO W/REMOTE START #1) (10.526) |
D47-69 (ATH, BTM, BTV, XL8) (EXPORT) |
2011-2013 |
01 |
| 001 |
25943679 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO W/REMOTE START #2) (10.526) |
D47-69 (ATH, BTM, BTV, XL8) (EXPORT) |
2011-2013 |
01 |
| 001 |
25943678 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO W/REMOTE START #1) |
D47-69 (ATH, BTM, BTV, XL8) (EXPORT) |
2011-2013 |
01 |
| 001 |
25943679 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO W/REMOTE START #2) |
D47-69 (ATH, BTM, BTV, XL8) (EXPORT) |
2011-2013 |
01 |
| 001 |
25946300 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO TRANS WITHOUT REMOTE START 1) (10.526) |
D47-69 (ATH, BTM, XL8) (EXC BTV) (EXPORT) |
2011-2013 |
01 |
| 001 |
25946300 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO TRANS WITHOUT REMOTE START 1) |
D47-69 (ATH, BTM, XL8) (EXC BTV) (EXPORT) |
2011-2013 |
01 |
| 001 |
25946301 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO TRANS WITHOUT REMOTE START 2) (10.526) |
D47-69 (ATH, BTM, XL8) (EXC BTV) (EXPORT) |
2011-2013 |
01 |
| 001 |
25946301 |
TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 2) (EURO TRANS WITHOUT REMOTE START 2) |
D47-69 (ATH, BTM, XL8) (EXC BTV) (EXPORT) |
2011-2013 |
01 |
| 002 |
12538938 |
BATTERY, R/CON DR LK XMTR (PART OF 1) (LITHIUM) (TRADE CR2032) |
D35-47-69 |
2009-2013 |
01 |
| 003 |
25995382 |
KEY, DR LK IGN LK (UNCODED) |
D69 (ATH) |
2010-2013 |
02 |
| 004 |
25884445 |
ANTENNA, IGN LK KEY XMTR (PASSIVE ANTENNA W/2 PIN CONN) |
D69 |
2009-2013 |
02 |
| 005 |
|
HARNESS, B/U ALARM WRG (SEE GROUP 07.000 BUMPER/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 006 |
11588308 |
RIVET, IGN LK KEY XMTR ANT BRKT (48MM) (7.831) |
DN69 (ATH, T79, UD7, UJM) |
2010-2013 |
02 |
| 007 |
25886155 |
BRACKET, IGN LK KEY XMTR ANT (EASY KEY SYSTEM) |
D69 |
2009-2013 |
01 |
| 008 |
25823193 |
BRACKET, IGN LK KEY XMTR ANT (CTS-V) |
DN69 (ATH, UD7) |
2010-2013 |
01 |
| 009 |
|
HARNESS, F/FLR CNSL WRG (SEE GROUP 10.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
25730079 |
ANTENNA, IGN LK KEY XMTR (BLACK) (95 X 114 X 22) (F/FLR) (ACTIVE ANTENNA W/5 PIN CONN) |
D69 |
2009-2013 |
01 |
| 011 |
11502553 |
NUT, STAMPED, M6.3 STUD, SELF THD, STL, PC (R/CON DR LK RCVR ANT) |
|
2009-2013 |
03 |
| 012 |
22706951 |
TAPE, R/CON DR LK RCVR (GAUGE HOLE SLOT CLOSE OUT) (8.010) |
D69 |
2009-2013 |
02 |
| 013 |
20931772 |
RECEIVER, R/CON DR LK THEFT DTRNT (EURO RECEIVER) (LABELED 20931772) |
D47-69 |
2011-2011 |
01 |
| 013 |
20931772 |
RECEIVER, R/CON DR LK THEFT DTRNT (EURO RECEIVER) (10.485) (LABELED 20931772) |
D47-69 |
2011-2011 |
01 |
| 013 |
22761871 |
RECEIVER, R/CON DR LK THEFT DTRNT (EURO RECEIVER) (10.485) (LABELED 22761871) |
D47-69 |
2011-2011 |
01 |
| 013 |
22761871 |
RECEIVER, R/CON DR LK THEFT DTRNT (EURO RECEIVER) (LABELED 22761871) |
D47-69 |
2011-2011 |
01 |
| 013 |
22860463 |
RECEIVER, R/CON DR LK THEFT DTRNT (DOMESTIC/ASIA RECEIVER) (10.485) |
D35-47-69 |
2011-2013 |
01 |
| 013 |
22860463 |
RECEIVER, R/CON DR LK THEFT DTRNT (DOMESTIC/ASIA RECEIVER) |
D35-47-69 |
2011-2013 |
01 |
| 014 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 015 |
|
LEVER KIT, FRT S/D O/S HDL (SEE GROUP 10.000 DOOR HARDWARE/FRONT PART 2 FOR DETAILED ILLUSTRATED VIEW) (HANDLE ONLY) (PAINT TO MATCH) |
|
2009-2013 |
|
