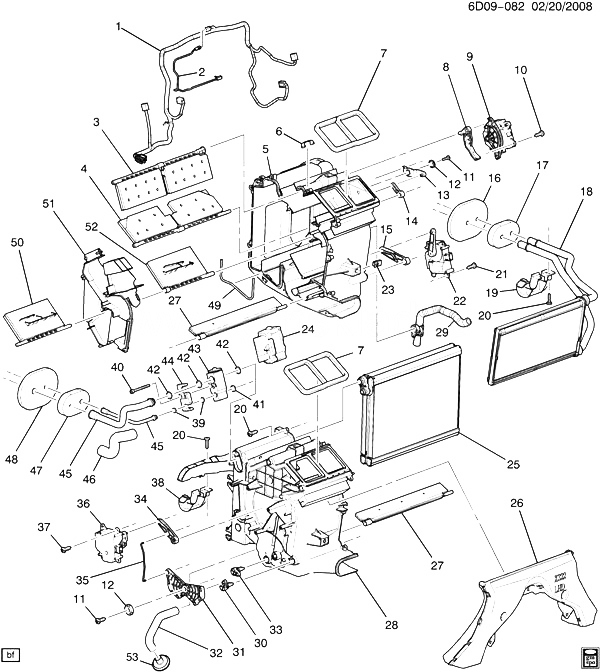

(6D09-082) 2010-2013 DR35-69 БЛОК КОНДИЦИОНЕРА И ОБОГРЕВАТЕЛЯ В СБОРЕ CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15939665 HARNESS, HTR A/C CONT WRG DR (EXPORT) 2009-2013 01
002 15939662 THERMISTOR, DRV MOT AIR INL TEMP (PART OF 25) DR (EXPORT) 2009-2013 01
003 25852678 VALVE, DEFR (ACDelco #15-50804) DR (EXPORT) 2010-2013 01
004 25852677 VALVE, VENT (ACDelco #15-50803) DR (EXPORT) 2010-2013 01
005 25852673 CASE, AIR DISTR DR (EXPORT) 2009-2013 01
006 15266665 CLIP, A/C EVPR CASE (9.215) DR (EXPORT) 2009-2013 01
007 SEAL, AIR DISTR (*KIT2) 2010-2013
008 LEVER, HTR A/C CONT MODE (*KIT3) 2010-2013
009 15939657 ACTUATOR, MODE VLV (ACDelco #15-73816) DR (EXPORT) 2009-2013 01
010 25770699 BOLT, MODE VLV ACTR (M4X141X16) (SCREW-PAN HEAD C/R) DR (EXPORT) 2010-2013 03
011 25781502 BOLT, MODE CONT CAM ACTR (*KIT3) (9.278) DR (EXPORT) 2010-2013 01
012 25781502 BOLT, MODE CONT CAM ACTR (*KIT1) (9.278) DR (EXPORT) 2010-2013 01
013 LEVER, HTR A/C CONT MODE (*KIT3) 2010-2013
014 LEVER, VENT VLV (*KIT3) 2010-2013
015 25852683 LEVER, HTR A/C CONT TEMP DR (EXPORT) 2010-2013 01
016 INSULATOR, HTR A/C CONT (*KIT2) 2010-2013
017 INSULATOR, HTR A/C CONT (*KIT2) 2010-2013
018 89022548 CORE, HTR (ACDelco #15-63063) DR (EXPORT) 2009-2013 01
019 25852675 BRACKET, HTR CORE TUBE DR (EXPORT) 2009-2013 01
020 25770699 BOLT, HTR A/C EVPR MDL (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DR (EXPORT) 2009-2013 09
021 25770699 BOLT, HTR A/C CONT TEMP CAM GROM (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) DR (EXPORT) 2009-2013 01
022 89023390 ACTUATOR, TEMP VLV (PASSENGER SIDE) (ACDelco #15-73024) D 2009-2013 01
023 11570097 NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (HTR CONT (PUSH IN)) 2009-2013 04
024 INSULATOR, A/C EVPR TXV (PART OF 25) (*KIT2) 2010-2013
025 25865641 EVAPORATOR KIT, A/C (INCLS 2, 24) (ACDelco #15-63559) DR (EXPORT) 2009-2013 01
026 25781506 DUCT, FLR FRT AIR OTLT DR (EXPORT) 2009-2013 01
027 25852681 VALVE, MIXER (REAR) D 2009-2013 02
028 25852672 CASE, AIR DISTR DR (EXPORT) 2009-2013 01
029 89023392 ASPIRATOR, I/S AIR TEMP SEN (ACDelco #89023392) DR (EXPORT) 2009-2013 01
030 25781503 LEVER, HTR A/C CONT TEMP (NATURAL) D 2009-2013 01
031 CAM, HTR A/C CONT TEMP (*KIT1) 2010-2013
032 25740400 HOSE, A/C EVPR BLO MDL DRN D 2009-2013 01
033 25781504 LEVER, HTR A/C CONT TEMP (BLACK) D 2009-2013 01
034 25852682 LEVER, HTR A/C CONT TEMP DR (EXPORT) 2010-2013 01
035 ROD, HTR A/C CONT TEMP (*KIT1) 2010-2013
036 ACTUATOR, TEMP VLV (*KIT1) 2010-2013
037 25770699 BOLT, TEMP VLV ACTR (M4X141X16) (SCREW-PAN HEAD C/R) DR (EXPORT) 2009-2013 04
038 25852676 CLAMP, A/C EVPR CASE DR (EXPORT) 2009-2013 01
039 SEAL, A/C EVPR TXV (O RING) (PART OF 43, 45) 2010-2013
040 BOLT, A/C EVPR TXV (PART OF 43) 2010-2013
041 SEAL, A/C EVPR TXV (O RING) (PART OF 43) 2010-2013
042 SEAL, A/C EVPR TXV (O RING) (PART OF 43, 45) 2010-2013
043 19129999 VALVE KIT, A/C EVPR THERMAL EXPN (INCLS 39-42, 44) (ACDelco #15-50697) D 2009-2013 01
044 ATTACHEMNT, A/C EVPR TXV) (PART OF 43) 2010-2013
045 19130000 TUBE KIT, A/C EVPR TXV (INCLS 39, 42, 46) (ACDelco #15-33518) D 2009-2013 01
046 INSULATOR, A/C EVPR TXV TUBE (PART OF 45) 2010-2013
047 INSULATOR, HTR A/C CONT (*KIT2) 2010-2013
048 INSULATOR, HTR A/C CONT (*KIT2) 2010-2013
049 SEAL, HTR CORE CASE (*KIT2) 2010-2013
050 25852679 VALVE, MIXER DR (EXPORT) 2009-2013 01
051 25852674 CASE, AIR DISTR (CENTER) DR 2009-2013 01
052 25852680 VALVE, MIXER DR (EXPORT) 2009-2013 01
053 25874761 DRAIN, A/C EVPR BLO CASE (ACDelco #15-81091) DR (EXPORT) 2009-2013 01
K01 25865637 CAM KIT, HTR A/C CONT (INCLS 12, 31, 35, 36) (ACDelco #15-73848) DR (EXPORT) 2010-2013 01
K02 25865639 SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 7, 16, 17, 24, 47-49) (ACDelco #15-33844) DR (EXPORT) 2010-2013 01
K03 25865638 LEVER KIT, HTR A/C CONT MODE (INCLS 8, 11, 13, 14) (ACDelco #15-73849) D 2009-2013 01
