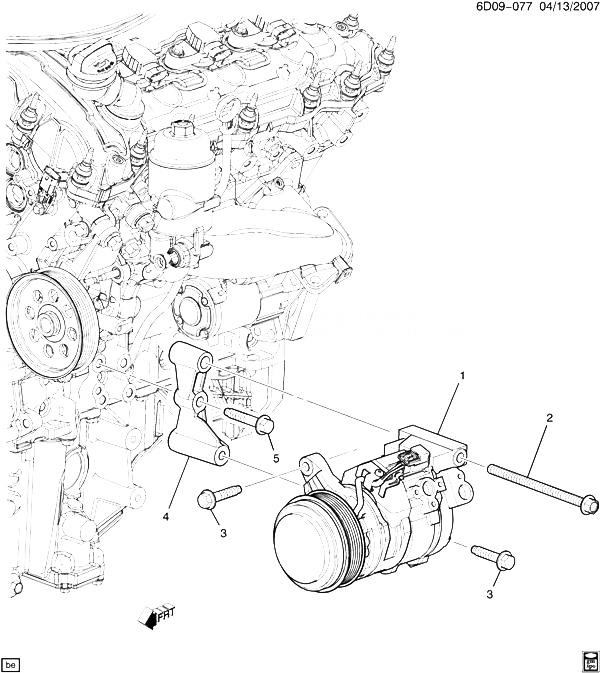

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25865635 |
COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21685) |
DM |
2008-2013 |
01 |
| 001 |
25865635 |
COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21685) |
DR (EXPORT) |
2009-2013 |
01 |
| 002 |
11517115 |
BOLT, HFH, M10X1.5X160, 30.5THD, 22.3 O.D., HDR PT, 9.8, 7114M (A/C CMPR) |
|
2008-2013 |
01 |
| 003 |
11588742 |
BOLT, HFH, M10X1.5X50, 26 THD, 22.3 OD, 10.9 STL, GMW3359, M-PT (A/C CMPR) |
|
2008-2013 |
03 |
| 004 |
12602100 |
BRACKET, A/C CMPR |
DM |
2008-2013 |
01 |
| 004 |
12602100 |
BRACKET, A/C CMPR |
DR (EXPORT) |
2009-2013 |
01 |
| 005 |
11518630 |
BOLT, HFH, M10X1.5X60, 26 THD, 22.3 OD, 10.9, GMW3359, MAT POINT (A/C CMPR BRKT) |
|
2008-2013 |
01 |
