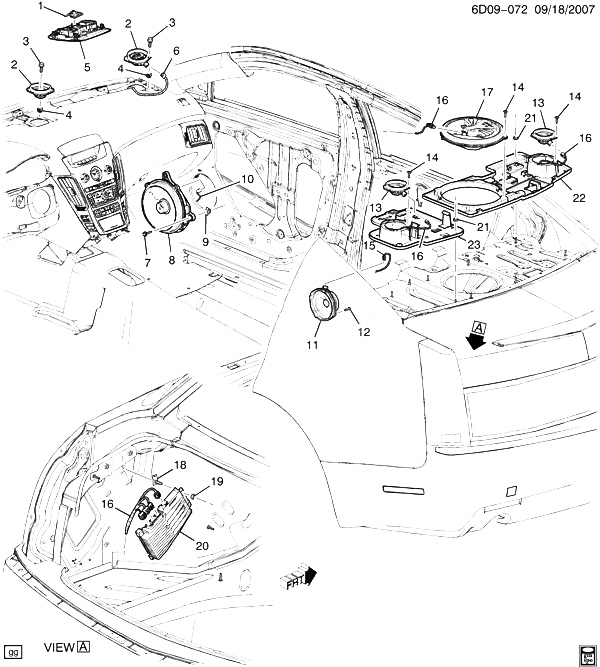

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 5) |
DM, DN (UTV) |
2011-2013 |
01 |
| 001 |
15246939 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 5) (RDO VOL COMP) |
DR (EXC UTV) (EXPORT) |
2011-2013 |
01 |
| 001 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 5) |
DR (UTV) (EXPORT) |
2011-2013 |
01 |
| 001 |
15246939 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 5) (RDO VOL COMP) |
DM, DN (EXC UTV) |
2011-2013 |
01 |
| 002 |
15122573 |
SPEAKER, RDO FRT (ACDelco #15122573) |
D (UQS) |
2011-2013 |
02 |
| 003 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT SPKR) |
|
2008-2013 |
06 |
| 004 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO FRT SPKR) (10.701) |
|
2008-2013 |
06 |
| 005 |
|
MODULE, HDLNG TR (INCLS 1) (SEE GROUP 14.000 ROOF HEADLINER FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 006 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT S/D SPKR) (9.665) |
|
2008-2013 |
06 |
| 008 |
15278539 |
SPEAKER, RDO FRT S/D (ACDelco #15278539) |
DM, DN35-47-69 (UQS) |
2011-2013 |
01 |
| 008 |
15278539 |
SPEAKER, RDO FRT S/D (ACDelco #15278539) |
DM, DN35-47-69 (UQS) |
2011-2013 |
01 |
| 008 |
15278539 |
SPEAKER, RDO FRT S/D (ACDelco #15278539) |
DR35-69 (UQS) (EXPORT) |
2011-2013 |
01 |
| 008 |
15278539 |
SPEAKER, RDO FRT S/D (ACDelco #15278539) |
DR35-69 (UQS) (EXPORT) |
2011-2013 |
01 |
| 009 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
D69 |
2008-2013 |
06 |
| 010 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 011 |
25725733 |
SPEAKER, RDO RR S/D (ACDelco #25725733) |
D69 |
2008-2013 |
02 |
| 012 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) |
|
2008-2013 |
12 |
| 013 |
25982647 |
SPEAKER, RDO RR (ACDelco #25982647) |
D69 (UQS) |
2010-2013 |
03 |
| 014 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) |
|
2008-2013 |
12 |
| 015 |
|
HARNESS, RR S/D WRG (SEE GROUP 10.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 016 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 017 |
25950303 |
SPEAKER, RDO RR (ACDelco #25950303) |
D47-69 (UQS) |
2011-2013 |
01 |
| 018 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RDO SPKR AMPF) |
|
2008-2013 |
01 |
| 019 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO SPKR AMPF) |
|
2008-2013 |
04 |
| 020 |
20869451 |
AMPLIFIER, RDO SPKR (ACDelco #20869451) |
D69 (UQS) |
2010-2013 |
01 |
| 021 |
11514517 |
NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RDO RR SPKR) |
|
2008-2013 |
10 |
| 022 |
22882755 |
BRACKET, R/WDO PNL LID HINGE |
DM, DN69 |
2011-2013 |
01 |
| 022 |
22882755 |
BRACKET, R/WDO PNL LID HINGE |
DR69 (EXPORT) |
2011-2013 |
01 |
| 023 |
20760451 |
BRACKET, R/WDO PNL LID HINGE |
D69 (UAV, U2R, U2S, U2T, U2X, U2Y) |
2008-2013 |
01 |
