| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

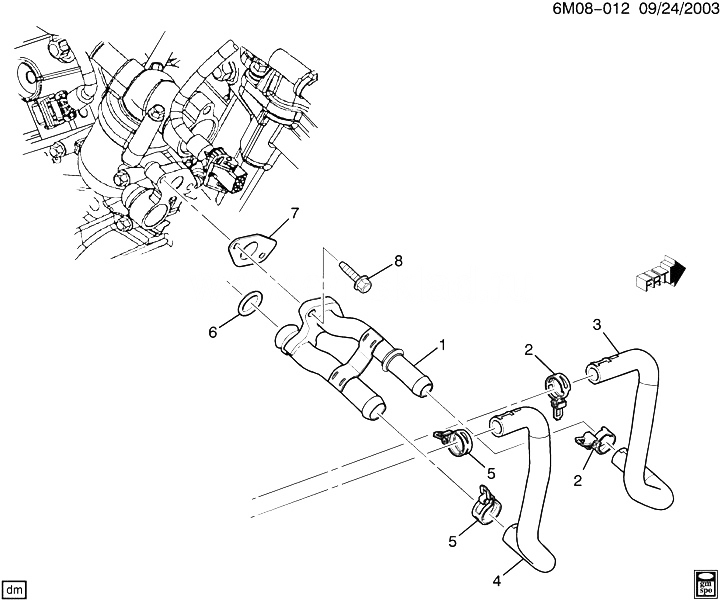

| 001 |
12644554 |
PIPE, HTR INL OTLT (INCLS 6-8) |
DM (LF1, LLT, JJB) |
2010-2011 |
01 |
| 001 |
12644554 |
PIPE, HTR INL OTLT (INCLS 6-8) |
DR (LF1, LLT, JJB) (EXPORT) |
2010-2011 |
01 |
| 002 |
11516222 |
CLAMP, SPRINGBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (PART OF 3) |
|
2008-2013 |
01 |
| 002 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 3) |
|
2008-2013 |
01 |
| 003 |
88958007 |
HOSE, HTR OTLT (INCLS 2) |
DM |
2008-2013 |
01 |
| 003 |
88958007 |
HOSE, HTR OTLT (INCLS 2) |
DR (EXPORT) |
2009-2013 |
01 |
| 004 |
88958006 |
HOSE, HTR INL (INCLS 5) |
DM |
2008-2013 |
01 |
| 004 |
88958006 |
HOSE, HTR INL (INCLS 5) |
DR (EXPORT) |
2009-2013 |
01 |
| 005 |
11516225 |
CLAMP, 25MM DIA, 15MM WIDTH, 6298 MATL (PART OF 4) |
|
2008-2013 |
01 |
| 005 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 4) |
|
2008-2013 |
01 |
| 006 |
12623461 |
SEAL, HTR INL PIPE (O RING) (PART OF 1) (ACDelco #12623461) |
DM |
2008-2013 |
01 |
| 006 |
12623461 |
SEAL, HTR INL PIPE (O RING) (PART OF 1) (ACDelco #12623461) |
DR (EXPORT) |
2009-2013 |
01 |
| 007 |
12636104 |
GASKET, HTR OTLT PIPE (PART OF 1) (ACDelco #12636104) |
DM |
2008-2013 |
01 |
| 007 |
12636104 |
GASKET, HTR OTLT PIPE (PART OF 1) (ACDelco #12636104) |
DR (EXPORT) |
2009-2013 |
01 |
| 008 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (PART OF 1) |
|
2008-2013 |
02 |
