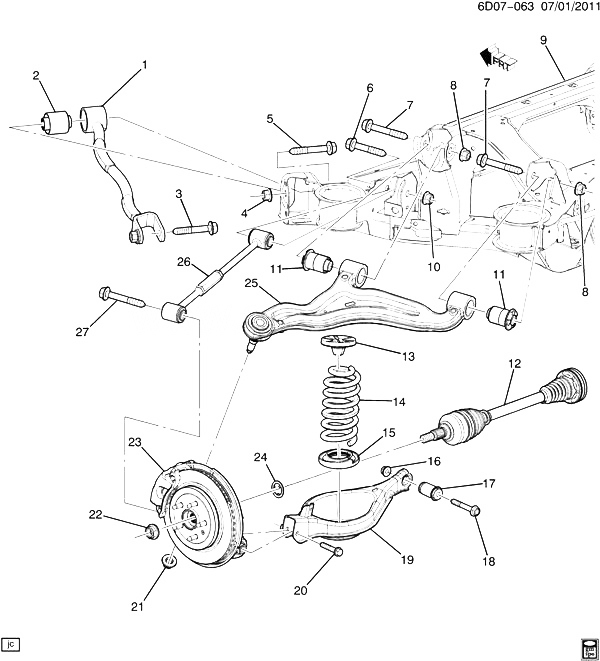

(6D07-063) 2010-2013 DR ЗАДНЯЯ ПОДВЕСКА-РЫЧАГИ И ПРУЖИНЫ УПРАВЛЕНИЯ CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25939260 ARM, RR SUSP TRAILING (INCLS 2) D69 2010-2013 02
002 BUSHING, RR SUSP TRAILING ARM (PART OF 1) 2010-2013
003 11519149 BOLT, RR SUSP TRAILING ARM (REAR) (M14X2X90, 34THD) (30.5OD) (6.172) D69 2010-2013 02
004 11516382 NUT, RR SUSP TRAILING ARM (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) D 2010-2013 02
005 11519150 BOLT, RR SUSP TRAILING ARM (FRONT) (M14X2X100, 34THD) (30.5OD) D69 2010-2013 02
006 11519149 BOLT, RR SUSP ADJ LINK (INNER) (M14X2X90, 34THD) (30.5OD) (6.172) D69 2010-2013 02
007 11519150 BOLT, RR SUSP UPR CONT ARM (INNER) (M14X2X100, 34THD) (30.5OD) D69 2010-2013 04
008 11516382 NUT, RR SUSP UPR CONT ARM (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) D69 2010-2013 04
009 19210816 SUPPORT, RR SUSP (SEE GROUP 07.000 SUSPENSION/REAR FOR DETAILED ILLUSTRATED VIEW) (5.806) D 2010-2011 01
010 11516382 NUT, RR SUSP ADJ LINK (TO SUPT-REAR) (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) D69 2010-2013 02
011 BUSHING, RR SUSP UPR CONT ARM (PART OF 25) 2010-2013
012 SHAFT, RR WHL DRV (SEE GROUP 05.000 AXLE SHAFT/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
013 20765234 INSULATOR, RR SPR UPR D69 2010-2013 02
014 25798541 SPRING, RR DR (8WW, 8WX, 8WY, 8WZ) (EXPORT) 2010-2013 01
014 25798541 SPRING, RR DR (9WW, 9WX, 9WY, 9WZ) (EXPORT) 2010-2013 01
014 15219458 SPRING, RR DR (8ST) (EXPORT) 2010-2013 01
014 15219458 SPRING, RR DR (9ST) (EXPORT) 2010-2013 01
014 15793347 SPRING, RR DR (8SU) (EXPORT) 2010-2013 01
014 15793347 SPRING, RR DR (9SU) (EXPORT) 2010-2013 01
015 25805110 INSULATOR, RR SPR LWR D35-47-69 2011-2012 02
016 11516382 NUT, RR SUSP LWR CONT ARM (TO SUPT) (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) D69 2010-2013 02
017 BUSHING, RR SUSP LWR CONT ARM (PART OF 19) 2010-2013
018 11519150 BOLT, RR SUSP LWR CONT ARM (M14X2X100, 34THD) (30.5OD) D69 2010-2013 02
019 20777471 ARM, RR SUSP LWR CONT (INCLS 17) D69 2010-2013 01
019 20777472 ARM, RR SUSP LWR CONT (INCLS 17) D69 2010-2013 01
020 11611958 BOLT, RR SUSP LWR CONT ARM (M14X2X85, 45THD, 28OD) (7.347) D35-47-69 2010-2013 02
021 11561354 NUT, RR SUSP UPR CONT ARM (8.917) D 2010-2013 02
022 10289657 NUT, RR WHL DRV UJT SHF (M24X2.0X19.6) (W/WASHER) (6.056) D 2010-2013 02
023 KNUCKLE, RR SUSP (W/HUB) (SEE GROUP 07.000 SUSPENSION/REAR KNUCKLE DETAIL FOR DETAILED ILLUSTRATED VIEW) 2010-2013
024 11611232 WASHER, RR WHL DRV SHF (BLACK) (ID 30.7, OD 54.7) DR (EXPORT) 2010-2013 02
025 15267619 ARM, RR SUSP UPR CONT (INCLS 11) D 2010-2013 01
025 15267620 ARM, RR SUSP UPR CONT (INCLS 11) D 2010-2013 01
026 25958229 LINK, RR SUSP ADJ D69 2010-2013 02
027 11519078 BOLT, RR SUSP ADJ LINK (OUTER) (M14X2X110) (W/CON WASHER) (5.506) D69 2010-2013 02
