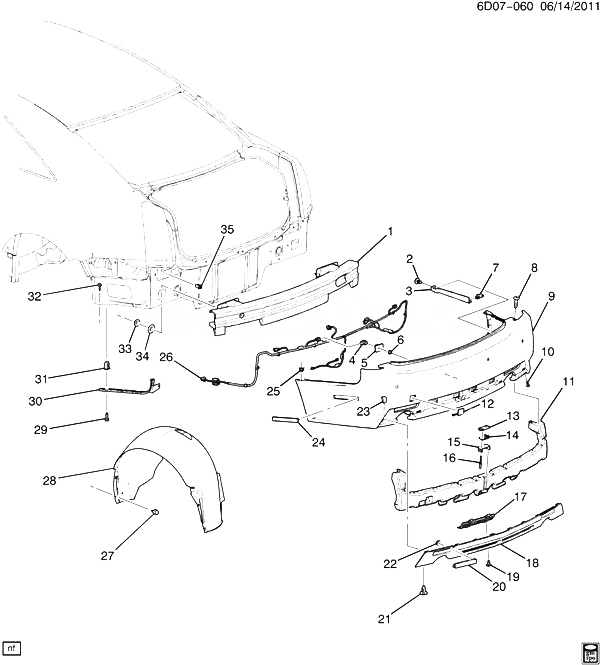

(6D07-060) 2010-2013 DN69 БАМПЕР ЗАДНИЙ CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20850893 BAR, RR BPR IMP D69 (EXC T79) 2010-2013 01
001 20850891 BAR, RR BPR IMP D69 (T79) (EXPORT) 2010-2013 01
002 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR BPR FASCIA INS) 2010-2013 02
003 25861216 BRACKET, TIRE PRESS IND RCVR (FASCIA STIFFENER) DN69 2010-2013 01
004 20914917 SENSOR KIT, PARK ASST ALARM (INCLS 6) (7.831) D69 (UD7) 2010-2013 04
004 19116085 SENSOR KIT, PARK ASST ALARM (INCLS 6) (PRIMED) (W/HOUSING) (7.831) DN 2011-2012 04
004 19116085 SENSOR KIT, PARK ASST ALARM (INCLS 6) (PRIMED) (W/HOUSING) DN 2011-2012 04
004 20914917 SENSOR KIT, PARK ASST ALARM (INCLS 6) D69 (UD7) 2010-2013 04
005 15271277 BRACKET, RR PARK ASST ALARM SEN (7.831) DN 2010-2013 04
006 RETAINER, RR OBJECT SEN (PART OF 4) 2010-2013
007 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (TIRE PRESS IND RCVR) 2010-2013 06
008 25631448 RETAINER, RR BPR FASCIA SUPT (7.2 DIA, 22.0 O.D., 30.75 LG) (W/#3 SQ ROBERTSON DR) (7.831) D69 2010-2013 02
009 25919161 FASCIA, RR BPR (PAINT TO MATCH) DN69 2010-2013 01
010 11609406 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (TIRE PRESS IND RCVR) 2010-2013 06
011 25878577 ABSORBER, RR BPR ENGY DN69 2010-2013 01
012 15896233 COVER, RR BPR FASCIA TOW HOOK ACC HOLE (PAINT TO MATCH) DN69 2010-2013 01
013 25730079 ANTENNA, IGN LK KEY XMTR (BLACK) (95 X 114 X 22) (F/FLR) (ACTIVE ANTENNA W/5 PIN CONN) D69 2010-2012 01
013 25884445 ANTENNA, IGN LK KEY XMTR (PASSIVE ANTENNA W/2 PIN CONN) D69 2010-2013 01
014 25886155 BRACKET, IGN LK KEY XMTR ANT (EASY KEY SYSTEM) D69 2010-2013 01
015 25823193 BRACKET, IGN LK KEY XMTR ANT (CTS-V) DN69 (ATH, UD7) 2010-2013 01
016 11588308 RIVET, IGN LK KEY XMTR ANT BRKT (48MM) (7.831) DN69 (ATH, T79, UD7, UJM) 2010-2013 02
017 20850447 PANEL, RR BPR VAL DN69 (ATH, UD7) (EXC T79) 2010-2013 01
017 20850448 PANEL, RR BPR VAL DN69 (ATH, UD7) (EXC T79) 2010-2013 01
018 25919181 INSERT, RR BPR FASCIA DN69 2010-2013 01
019 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (RR FOG LP (PUSH IN)) (8.950) (PUSH IN) 2010-2013 04
020 25805313 REFLECTOR, RR BPR FASCIA DN69 (ATH, UD7) 2011-2013 02
021 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR BPR FASCIA (PUSH IN)) 2010-2013 03
022 11502553 NUT, STAMPED, M6.3 STUD, SELF THD, STL, PC (RR REFL) 2010-2013 02
023 11562364 RETAINER, RR BPR FASCIA INS (CLIP-18X10X11.6) (1.269) D69 2010-2013 AR
024 25883454 REFLECTOR, RR OTR DN (EXC T79) 2010-2013 01
024 25883455 REFLECTOR, RR OTR DN69 (ATH, UD7) (EXC T79) 2010-2013 01
025 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RR BPR FASCIA SI BRKT (PUSH IN)) (10.701) 2010-2013 02
026 22751753 HARNESS, B/U ALARM WRG DN69 (ATH, T79, UD7) 2011-2013 01
026 22751752 HARNESS, B/U ALARM WRG DN69 (ATH, UD7) (EXC T79) 2010-2013 01
027 11589293 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR W/H LNR) 2010-2013 14
028 22864103 LINER, RR W/H D69 2010-2013 01
028 22864102 LINER, RR W/H D69 2010-2013 01
029 11519116 BOLT, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA BRKT) 2010-2013 08
030 20984697 BRACKET, RR BPR FASCIA D69 2010-2013 01
030 22904672 BRACKET, RR BPR FASCIA D69 2010-2013 01
031 11562503 RETAINER, RR BPR FASCIA SI (M6X1.0) (NUT-PUSH-IN) (W/SEAL) (7.836) D69 2011-2013 08
032 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RR BPR FASCIA) (9.665) 2010-2013 02
033 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (RR BPR ENGY ABS) 2010-2013 06
034 RETAINER, RR BPR IMP BAR RET (PUSH ON) 2010-2013
035 11562503 RETAINER, RR BPR FASCIA (M6X1.0) (NUT-PUSH-IN) (W/SEAL) (7.836) D69 2011-2013 05
