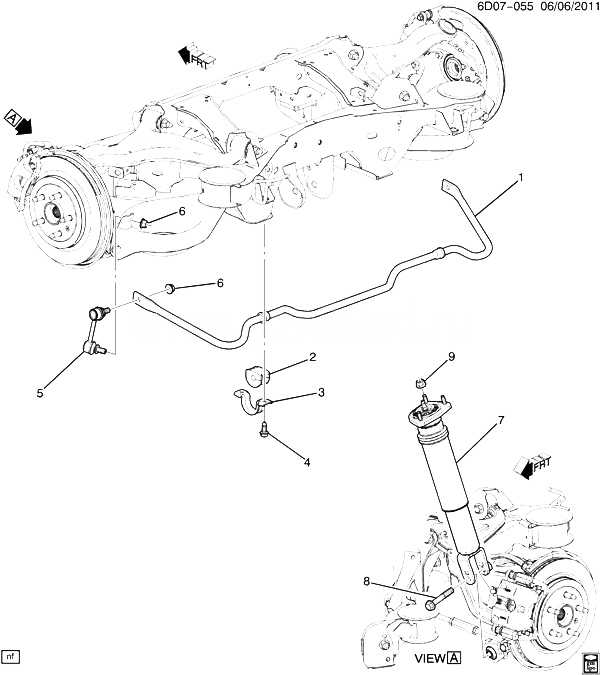

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22753253 |
SHAFT, RR STAB (18MM HOLLOW) |
DM69 (MX7) |
2011-2013 |
01 |
| 001 |
22753254 |
SHAFT, RR STAB (19MM HOLLOW) |
DM69 (FE1, FE2, MN6, MX0) |
2011-2011 |
01 |
| 001 |
22753255 |
SHAFT, RR STAB (24 MM HOLLOW) |
DM69 (FE3) |
2011-2013 |
01 |
| 001 |
22753256 |
SHAFT, RR STAB (25.4 MM HOLLOW) |
DN69 |
2011-2013 |
01 |
| 001 |
22753253 |
SHAFT, RR STAB (18MM HOLLOW) |
DR69 (MX7) (EXPORT) |
2011-2013 |
01 |
| 001 |
22753254 |
SHAFT, RR STAB (19MM HOLLOW) |
DR69 (FE1, FE2, MN6, MX0) (EXPORT) |
2010-2011 |
01 |
| 001 |
22753255 |
SHAFT, RR STAB (24 MM HOLLOW) |
DR69 (FE3) (EXPORT) |
2011-2013 |
01 |
| 002 |
15880709 |
INSULATOR, RR STAB SHF (17MM) (65 DURO) |
DM69 (FE1, FE2) |
2008-2011 |
02 |
| 002 |
25771205 |
INSULATOR, RR STAB SHF (23.4MM) (60 DURO) |
D |
2008-2013 |
02 |
| 002 |
15880709 |
INSULATOR, RR STAB SHF (17MM) (65 DURO) |
DR69 (FE1, FE2) (EXPORT) |
2009-2011 |
02 |
| 003 |
25719675 |
BRACKET, RR STAB SHF |
D69 |
2008-2013 |
02 |
| 004 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (RR STAB SHF BRKT) |
|
2008-2013 |
04 |
| 005 |
25964514 |
LINK, RR STAB SHF |
D69 |
2008-2013 |
01 |
| 005 |
25964513 |
LINK, RR STAB SHF |
D69 |
2008-2013 |
01 |
| 006 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (RR STAB SHF LINK) |
|
2008-2013 |
04 |
| 007 |
|
ABSORBER, RR SHK (W/UPR MT) ( (SEE GROUP 07.000 ABSORBER/REAR SHOCK FOR DETAILED ILLUSTRATED VIEW) (CODES L7P M4H) |
|
2008-2013 |
|
| 008 |
11517901 |
BOLT, HEX, M14X2X90, 34 THD, 28 OD, 10.9, 7114, MACH, HDR-PT (RR S/ABS) |
|
2008-2013 |
02 |
| 009 |
11518002 |
NUT, HFH, M8X1.25X10, 21.8 OD, 10, 7114M (RR S/ABS UPR MT) |
|
2008-2013 |
06 |
