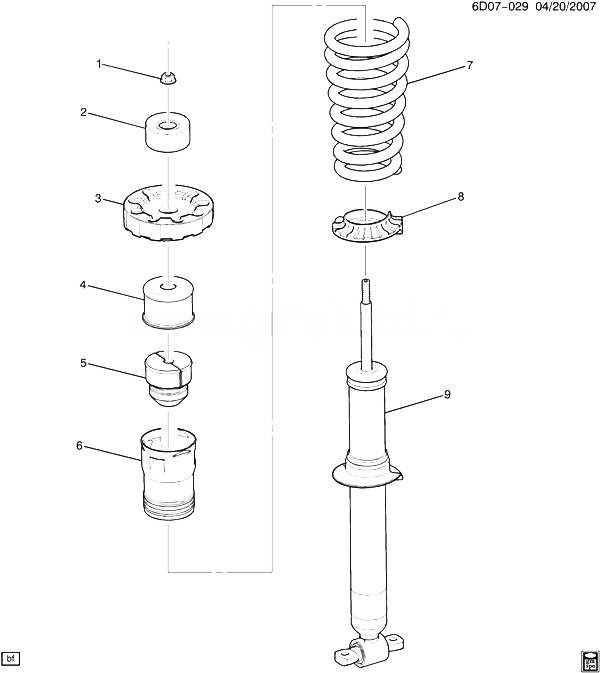

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (PART OF 9) (ACDelco #11517996) |
|
2009-2013 |
01 |
| 002 |
|
MOUNT, FRT S/ABS UPR (SEE GROUP 06.000 SUSPENSION/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 003 |
15840310 |
INSULATOR, FRT SPR UPR |
DR (MN6, MX0) (EXPORT) |
2010-2013 |
02 |
| 004 |
25807546 |
RETAINER, FRT S/ABS BPR |
DR69 (FE1, FE2, FE3, MN6, MX0) (EXPORT) |
2010-2013 |
02 |
| 005 |
20982024 |
BUMPER, FRT S/ABS UPR |
DR69 (FE3, MN6, MX0, 6NX) (EXPORT) |
2010-2013 |
01 |
| 005 |
20982024 |
BUMPER, FRT S/ABS UPR |
DR69 (FE3, MN6, MX0, 7NX) (EXPORT) |
2010-2013 |
01 |
| 006 |
25807541 |
SHIELD, FRT S/ABS DUST |
DR (EXPORT) |
2009-2013 |
02 |
| 007 |
15264551 |
SPRING, FRT |
DR (6NX) (EXPORT) |
2009-2013 |
01 |
| 007 |
15264551 |
SPRING, FRT |
DR (7NX) (EXPORT) |
2009-2012 |
01 |
| 007 |
25807542 |
SPRING, FRT |
DR (6NW) (EXPORT) |
2009-2013 |
01 |
| 007 |
25807542 |
SPRING, FRT |
DR (7NW) (EXPORT) |
2009-2013 |
01 |
| 007 |
25807543 |
SPRING, FRT |
DR (6NZ) (EXPORT) |
2009-2013 |
01 |
| 007 |
25807543 |
SPRING, FRT |
DR (7NZ) (EXPORT) |
2009-2013 |
01 |
| 008 |
15840317 |
INSULATOR, FRT SPR LWR |
DR (6NX, 6NW, 6NZ) (EXPORT) |
2009-2013 |
01 |
| 008 |
15840317 |
INSULATOR, FRT SPR LWR |
DR (7NX, 7NW, 7NZ) (EXPORT) |
2009-2013 |
01 |
| 009 |
20829918 |
ABSORBER, FRT SHK (INCLS 1) (ABSORBER ONLY) (MUST ORDER T/W NUT 11516078) (ACDelco #20829918) |
DR (FE3, MN6, MX0, 6NW, 6NX, 6NZ) (EXPORT) |
2010-2013 |
01 |
| 009 |
19210520 |
ABSORBER KIT, FRT SHK (INCLS 1) (ACDelco #540-583) |
DR69 (FE1, FE2, MN6, MX0, 6NZ) (EXPORT) |
2010-2011 |
01 |
| 009 |
20829918 |
ABSORBER, FRT SHK (INCLS 1) (ABSORBER ONLY) (MUST ORDER T/W NUT 11516078) (ACDelco #20829918) |
DR (FE3, MN6, MX0, 7NW, 7NX, 7NZ) (EXPORT) |
2010-2013 |
01 |
| 009 |
19210520 |
ABSORBER KIT, FRT SHK (INCLS 1) (ACDelco #540-583) |
DR69 (FE1, FE2, MN6, MX0, 7NZ) (EXPORT) |
2010-2011 |
01 |
