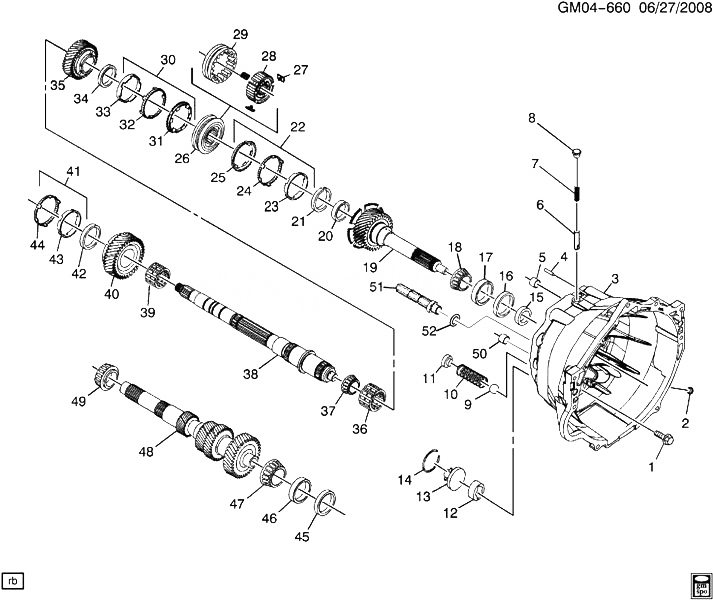

(GM04-660) 2011-2013 DN35-47-69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 2 (MG9) GEARS SHAFTS CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12523235 BOLT, CLU HSG ADAP (M10X1.5-40MM) DN (MG9) 2009-2013 11
002 19180517 FITTING, TRANS FLUID PMP OTLT PIPE (ACDelco #19180517) DN (LSA, MG9) 2009-2013 01
003 19206204 HOUSING, CLU (INCLS 4, 5, 9-15, 50) (ACDelco #19206204) DN (MG9) 2009-2013 01
004 12523068 PIN, TRANS CASE LOC (PART OF 3) (0.685) DN (MG9) 2009-2013 02
005 89059428 BEARING, SHFT SHF (PART OF 3) (ACDelco #89059428) DN (MG9) 2009-2013 02
006 89059436 ROLLER, SHFT SHF DTNT (ACDelco #89059436) DN (MG9) 2009-2013 01
007 89059437 SPRING, SHFT SHF DTNT (ACDelco #89059437) DN (MG9) 2009-2013 01
008 89059438 PLUG, SHFT SHF DTNT (ACDelco #89059438) DN (MG9) 2009-2013 01
009 19180515 BALL, TRANS FLUID PMP CHK (PART OF 3) (ACDelco #19180515) DN (MG9) 2009-2013 01
010 19180516 SPRING, TRANS FLUID PMP CHK BALL (PART OF 3) (ACDelco #19180516) DN (MG9) 2009-2013 01
011 19180062 PLUG, TRANS ADAP (PART OF 3) (ACDelco #19180062) DN (LSA, MG9) 2009-2013 01
012 PUMP, TRANS FLUID (PART OF 3) 2011-2013
013 COVER, A/TRNS FLUID PUMP (PART OF 3) 2011-2013
014 19180514 RING, TRANS FLUID PMP RET (PART OF 3) (ACDelco #19180514) DN (MG9) 2009-2013 01
015 89059435 SEAL, INPUT SHF (PART OF 3) (ACDelco #89059435) DN (MG9) 2009-2013 01
016 19178669 SHIM, INPUT SHF BRG (0.38MM) (4.353) DN (MG9) 2009-2013 AR
016 19178670 SHIM, INPUT SHF BRG (0.5080MM) (4.353) DN (MG9) 2009-2013 AR
016 19178671 SHIM, INPUT SHF BRG (0.609MM) (4.353) DN (MG9) 2009-2013 AR
016 19178672 SHIM, INPUT SHF BRG (.7112MM) (4.353) DN (MG9) 2009-2013 AR
016 19178673 SHIM, INPUT SHF BRG (.8128MM) (4.353) DN (MG9) 2009-2013 AR
016 19178674 SHIM, INPUT SHF BRG (0.89MM) (4.353) DN (MG9) 2009-2013 AR
016 19178675 SHIM, INPUT SHF BRG (0.46MM) DN (MG9) 2009-2013 AR
016 19178676 SHIM, INPUT SHF BRG (0.56MM) DN (MG9) 2009-2013 AR
016 19178677 SHIM, INPUT SHF BRG (0.66MM) (0.66MM) DN (MG9) 2009-2013 AR
016 19178678 SHIM, INPUT SHF BRG (0.76MM) (0.76MM) DN (MG9) 2009-2013 AR
016 19178679 SHIM, INPUT SHF BRG (0.78MM) (0.78MM) DN (MG9) 2009-2013 AR
016 12523222 SHIM, INPUT SHF BRG (.030 THK) DN (MG9) 2009-2013 01
016 12523223 SHIM, INPUT SHF BRG (.032 THK) DN (MG9) 2009-2013 01
016 12523224 SHIM, INPUT SHF BRG (.034 THK) DN (MG9) 2009-2013 01
016 12523225 SHIM, INPUT SHF BRG (.036 THK) DN (MG9) 2009-2013 01
016 12523226 SHIM, INPUT SHF BRG (.038 THK) DN (MG9) 2009-2013 01
016 12523227 SHIM, INPUT SHF BRG (.040 THK) DN (MG9) 2009-2013 01
016 12523229 SHIM, INPUT SHF BRG (.044 THK) DN (MG9) 2009-2013 01
016 12523230 SHIM, INPUT SHF BRG (.046 THK) DN (MG9) 2009-2012 01
016 12523231 SHIM, INPUT SHF BRG (.048 THK) DN (MG9) 2009-2013 01
016 12523220 SHIM, INPUT SHF BRG (.026 THK) DN (MG9) 2009-2013 01
016 12523221 SHIM, INPUT SHF BRG (.028 THK) DN (MG9) 2009-2013 01
017 CUP, INPUT SHF BRG (PART OF 18, 19) 2011-2012
018 19180057 BEARING, INPUT SHF (INCLS 17) (PART OF 19) DN (MG9) 2011-2012 01
019 19206210 SHAFT, INPUT (USE T/W 19180057 BEARING ASM, INPUT SHF) (4.309) DN (MG9) 2009-2011 01
019 19259986 SHAFT, INPUT (KIT) (INCLS 17, 18) (COMES T/W 19180057 BEARING) (COMES T/W 19180057 BEARING) DN (LSA, MG9) 2011-2013 01
020 CUP, MAIN SHF BRG (PART OF 37) 2011-2013
021 12523187 RING, 3RD 4TH GR SYN RET (4.318) (ACDelco #12523187) DN (MG9) 2009-2013 01
022 19260755 RING, 4TH GR BLOCKING (INCLS 23-25) DN (MG9) 2009-2013 01
023 CONE, 3RD GR SYN INR (PART OF 22) 2011-2013
024 CONE, 3RD GR SYN OTR (PART OF 22) 2011-2013
025 RING, 3RD GR BLOCKING (PART OF 22) 2011-2013
026 19259367 SYNCHRONIZER, 3RD 4TH GR (INCLS 27-29) (ACDelco #19259367) DN (MG9) 2009-2011 01
027 19178693 INSERT, 3RD 4TH GR SYN (PART OF 26) DN (MG9) 2009-2011 03
028 HUB, 3RD 4TH GR SYN (PART OF 26) 2011-2013
029 SLEEVE, 3RD 4TH GR SYN (PART OF 26) 2011-2013
030 19260755 RING, 3RD GR BLOCKING (INCLS 31-33) DN (MG9) 2009-2013 01
031 RING, 3RD GR BLOCKING (PART OF 30) 2011-2013
032 CONE, 3RD GR SYN OTR (PART OF 30) 2011-2013
033 CONE, 3RD GR SYN INR (PART OF 30) 2011-2013
034 19178683 SPACER, 3RD GR BRG (ACDelco #19178683) DN (MG9) 2009-2013 01
035 19259990 GEAR, 3RD DN (LSA, MG9) 2009-2011 01
036 12523073 BEARING, 3RD GR (ACDelco #12523073) DN (MG9) 2009-2013 01
037 12523059 BEARING, MAIN SHF FRT (INCLS 20) (4.317) (ACDelco #12523059) DN (MG9) 2009-2011 01
038 19206211 SHAFT, MAIN DN (MG9) 2009-2011 01
038 19260475 SHAFT, MAIN DN (LSA, MG9) 2011-2013 01
039 12523073 BEARING, 2ND GR (ACDelco #12523073) DN (MG9) 2009-2013 01
040 19256244 GEAR, 2ND (ACDelco #19256244) DN (MG9) 2009-2013 01
041 19178686 GEAR, 1ST (INCLS 43, 44) DN (MG9) 2009-2012 01
041 19256241 RING, 1ST GR BLOCKING (INCLS 43, 44) DN (MG9) 2010-2013 01
042 12455005 SPACER, 2ND GR BRG DN (MG9) 2009-2013 01
043 CONE, 2ND GR SYN INR (PART OF 41) 2011-2013
044 CONE, 2ND GR SYN OTR (PART OF 41) 2011-2013
045 12523218 SHIM, CNTR GR BRG (.022 THK) (4.376) DN (MG9) 2009-2013 01
045 12523219 SHIM, CNTR GR BRG (.024 THK) (4.376) DN (MG9) 2009-2013 01
045 12523220 SHIM, CNTR GR BRG (.026 THK) (4.376) DN (MG9) 2009-2013 01
045 12523221 SHIM, CNTR GR BRG (.028 THK) (4.376) DN (MG9) 2009-2013 01
045 12523228 SHIM, CNTR GR BRG (.042 THK) (4.376) DN (MG9) 2009-2013 01
045 12523232 SHIM, CNTR GR BRG (.050 THK) (4.376) DN (MG9) 2009-2013 01
045 12523222 SHIM, CNTR GR BRG (.030 THK) (4.376) DN (MG9) 2009-2013 01
045 12523223 SHIM, CNTR GR BRG (.032 THK) (4.376) DN (MG9) 2009-2013 01
045 12523224 SHIM, CNTR GR BRG (.034 THK) (4.376) DN (MG9) 2009-2013 01
045 12523225 SHIM, CNTR GR BRG (.036 THK) (4.376) DN (MG9) 2009-2013 01
045 12523226 SHIM, CNTR GR BRG (.038 THK) (4.376) DN (MG9) 2009-2013 01
045 12523227 SHIM, CNTR GR BRG (.040 THK) (4.376) DN (MG9) 2009-2013 01
045 12523229 SHIM, CNTR GR BRG (.044 THK) (4.376) DN (MG9) 2009-2013 01
045 12523230 SHIM, CNTR GR BRG (.046 THK) (4.376) DN (MG9) 2009-2013 01
045 12523231 SHIM, CNTR GR BRG (.048 THK) (4.376) DN (MG9) 2009-2013 01
046 CUP, CNTR GR BRG (PART OF 47) 2011-2013
047 19206222 BEARING, CNTR GR FRT (INCLS 46) (ACDelco #19206222) DN (MG9) 2009-2013 01
048 19180614 GEAR, CNTR DN (MG9) 2009-2011 01
048 19260295 GEAR, CNTR DN (LSA, MG9) 2011-2013 01
049 19206225 BEARING, CNTR GR CTR (ACDelco #19206225) DN (MG9) 2009-2013 01
050 19133179 BUSHING, SHFT SHF (REV SHF SHFT) (PART OF 3) (ACDelco #19133179) D (MG9) 2009-2013 01
051 19180873 PIPE, TRANS FLUID PMP INL (ACDelco #19180873) DN (LSA, MG9) 2009-2013 01
052 89060023 SEAL, TRANS FLUID PMP INL PIPE (O RING) (ACDelco #89060023) DN (LSA, MG9) 2009-2013 01
