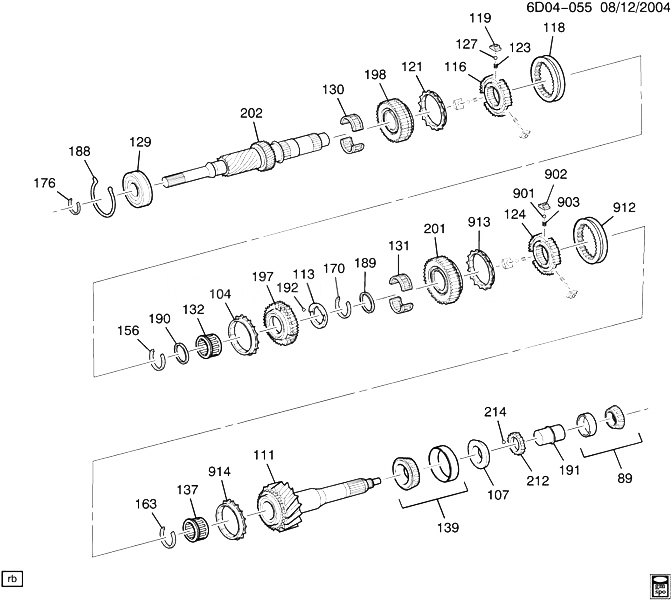

(6D04-055) 2011 DM47-69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 3 (MV7) INPUT OUTPUT SHAFT COMPONENTS CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
089 89058782 BEARING, RR OUTPUT MAIN SHF RR (ACDelco #89058782) DM (MV7) 2010-2012 01
104 89058801 RING, 3RD GR BLOCKING (ACDelco #89058801) DM (MV7) 2010-2012 01
107 89058812 SLINGER, MAIN SHF BRG OIL (4.345) DM (MV7) 2010-2012 01
111 19178534 SHAFT, RR MAIN DM (LF1, LLT, MV7, JJB) 2010-2011 01
111 89058828 SHAFT, RR MAIN (ACDelco #89058828) DM (MV7) 2010-2012 01
113 19132975 WASHER, 3RD GR THR DM (MV7) 2008-2012 01
116 89058805 HUB, 3RD 4TH GR SYN (ACDelco #89058805) DM (MV7) 2010-2012 01
118 19132845 SLEEVE, 3RD 4TH GR SYN DM (LF1, LLT, MV7, JJB) 2010-2011 01
118 89058802 SLEEVE, 3RD 4TH GR SYN DM (MV7) 2010-2012 01
119 19178535 INSERT, 3RD 4TH GR SYN DM (LF1, LLT, MV7, JJB) 2010-2012 03
121 89058801 RING, 4TH GR BLOCKING (ACDelco #89058801) DM (MV7) 2009-2012 01
121 19132974 RING, 4TH GR BLOCKING (ACDelco #19132974) DM (MV7) 2010-2012 01
123 19132849 SPRING, 3RD 4TH GR SYN DM (LF1, LLT, MV7, JJB) 2010-2011 03
123 89058811 SPRING, 3RD 4TH GR SYN (ACDelco #89058811) DM (MV7) 2010-2012 03
124 89058806 HUB, 5TH 6TH GR SYN (ACDelco #89058806) DM (MV7) 2010-2012 01
127 89058810 BALL, 3RD 4TH GR SYN DTNT DM (MV7) 2008-2012 03
129 89058776 BEARING, INPUT SHF (RADIAL BALL) (ACDelco #89058776) DM (LF1, LLT, MV7, JJB) 2010-2011 01
130 89058777 BEARING, 4TH GR (ACDelco #89058777) DM (MV7) 2010-2012 01
131 89058779 BEARING, 6TH GR (ACDelco #89058779) DM (MV7) 2010-2012 01
132 89058778 BEARING, 3RD GR (ACDelco #89058778) DM (MV7) 2010-2012 01
137 89058780 BEARING, INPUT SHF (ACDelco #89058780) DM (LF1, LLT, MV7, JJB) 2010-2011 01
139 89058781 BEARING, RR OUTPUT SHF FRT (ACDelco #89058781) DM (MV7) 2010-2012 01
156 89059345 RING KIT, 3RD 4TH GR RET (ACDelco #89059345) DM (MV7) 2008-2012 01
163 89059346 RING, 5TH 6TH GR SYN HUB RET (ACDelco #89059346) DM (MV7) 2010-2012 01
170 89059347 RING KIT, 6TH GR RET (ACDelco #89059347) DM (MV7) 2008-2012 01
176 89059348 RING KIT, INPUT SHF BRG RET (ACDelco #89059348) DM (MV7) 2008-2012 01
188 89058813 RING, INPUT SHF BRG RET (ACDelco #89058813) DM (MV7) 2010-2012 01
189 89058863 SPACER, 6TH GR BRG DM (MV7) 2010-2012 01
190 89058861 SPACER, 3RD 4TH GR DM (MV7) 2010-2012 01
191 89058864 SPACER, RR MAIN SHF RR BRG DM (MV7) 2010-2012 01
192 89048344 PIN, GR THR WA LOC (4.419) DM (MV7) 2010-2012 01
197 19178537 GEAR, 3RD DM (LF1, LLT, MV7, JJB) 2010-2011 01
197 89058767 GEAR, 3RD DM (MV7) 2010-2012 01
197 92149631 GEAR, 3RD (ACDelco #92149631) DM (MV7) 2010-2012 01
198 19178538 GEAR, 4TH DM (LF1, LLT, MV7, JJB) 2010-2011 01
198 89058766 GEAR, 4TH DM (MV7) 2010-2012 01
198 92149632 GEAR, 4TH (ACDelco #92149632) DM (MV7) 2010-2012 01
201 19178536 GEAR, 6TH (ACDelco #19178536) DM (LF1, LLT, MV7, JJB) 2010-2011 01
201 89058768 GEAR, 6TH DM (MV7) 2010-2011 01
202 19178539 SHAFT, INPUT DM (LF1, LLT, MV7, JJB) 2010-2011 01
202 89058827 SHAFT, INPUT DM (MV7) 2010-2012 01
202 92149636 SHAFT, INPUT (ACDelco #92149636) DM (MV7) 2010-2012 01
212 89058773 GEAR, VEH SPD SEN DRV DM (LF1, LLT, MV7, JJB) 2010-2011 01
214 89048423 BALL, SPEEDO DRV GR LOC DM (LF1, LLT, MV7) 2010-2011 01
901 89058810 BALL, 5TH GR SYN DTNT DM (MV7) 2008-2012 03
902 19178535 INSERT, 5TH 6TH GR SYN DM (MV7) 2008-2011 01
903 19132849 SPRING, 5TH 6TH GR SYN DM (MV7) 2008-2011 01
912 19132845 SLEEVE, 5TH 6TH GR SYN DM (MV7) 2008-2011 01
912 89058802 SLEEVE, 5TH 6TH GR SYN D69 (MV7) 2010-2012 01
913 19132974 RING, 6TH GR BLOCKING (4.383) (ACDelco #19132974) D69 (MV7) 2008-2012 01
914 19132974 RING, 5TH GR BLOCKING (ACDelco #19132974) DM (MV7) 2008-2012 01
