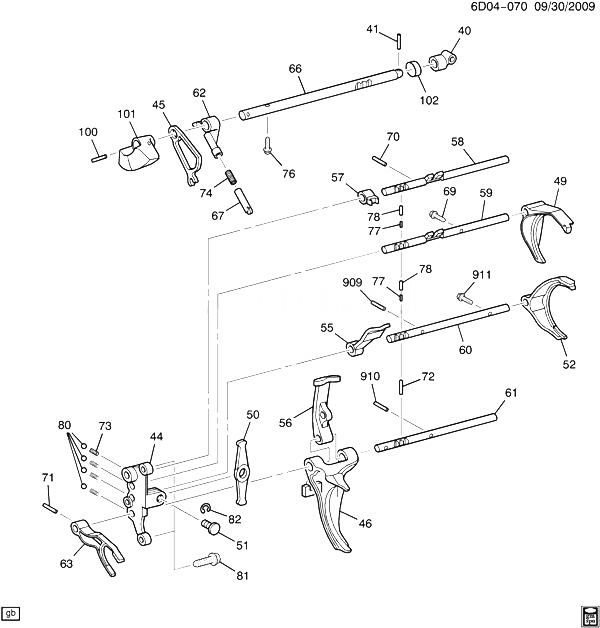

(6D04-070) 2011 DM47-69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 5 (MV7) SHIFT FORKS CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
040 19180997 JOINT, M/TRNS SHFT LVR ROD UNIVERSAL DM (MV7) 2008-2011 01
040 89058795 JOINT, M/TRNS SHFT LVR ROD UNIVERSAL (4.416) DM (MV7) 2010-2012 01
041 19180067 PIN, M/TRNS SHFT LVR DM (MV7) 2008-2011 01
041 89058826 PIN, M/TRNS SHFT LVR DM (MV7) 2010-2012 01
044 89059340 BRACKET, SHFT CONT LVR DM (MV7) 2010-2012 01
045 89059331 CAM, SHFT SHF DTNT DM (MV7) 2010-2012 01
046 89058762 FORK, 1ST 2ND SHFT (INCLS BUSHINGS) DM (MV7) 2010-2012 01
049 89058763 FORK, 3RD 4TH SHFT (INCLS INSERTS) DM (MV7) 2010-2012 01
050 89059342 ARM, CONT SEL DM (MV7) 2008-2012 01
051 89058825 PIN, CONT SEL ARM DM (MV7) 2010-2012 01
052 89058764 FORK, 5TH 6TH SHFT (INCLS INSERTS) DM (MV7) 2010-2012 01
055 89059332 LEVER, SHFT DM (MV7) 2010-2012 01
056 19132858 LEVER, INTL SHFT CONT DM (LF1, LLT, MV7, JJB) 2010-2011 01
056 89059334 LEVER, INTL SHFT CONT DM (MV7) 2010-2012 01
057 19132857 LEVER, SEL CONT DM (LF1, LLT, MV7, JJB) 2010-2011 01
057 89058831 LEVER, SEL CONT DM (MV7) 2010-2012 01
058 89058830 SHAFT, 1ST 2ND SHFT (ACDelco #89058830) DM (MV7) 2010-2012 01
059 89059333 SHAFT, 3RD 4TH SHFT (ACDelco #89059333) DM (MV7) 2010-2012 01
060 89059335 SHAFT, 5TH 6TH SHFT (ACDelco #89059335) DM (MV7) 2010-2012 01
061 19132859 SHAFT, REV SHFT (ACDelco #19132859) DM (LF1, LLT, MV7, JJB) 2010-2011 01
061 89059336 SHAFT, REV SHFT DM (MV7) 2010-2012 01
062 89058832 LEVER, SHFT SHF DTNT DM (MV7) 2010-2012 01
063 89058765 FORK, REV SHFT (INCLS INSERTS) DM (MV7) 2010-2012 01
063 89058765 FORK, REV SHFT (INCLS INSERTS) DM (MV7) 2010-2011 01
066 89058829 SHAFT, SHFT CONT (ACDelco #89058829) DM (MV7) 2010-2012 01
067 89059329 DETENT, SHFT SHF (CAM) (ACDelco #89059329) DM (LF1, LLT, MV7, JJB) 2010-2011 01
069 89048287 BOLT, 3RD 4TH SHFT FORK DM (MV7) 2010-2012 01
070 89048272 PIN, SEL CONT LVR (4.008) DM (MV7) 2010-2011 01
071 89048289 PIN, REV SHFT FORK (4.303) DM (MV7) 2010-2012 01
072 89059339 ROLLER, SHFT SHF DTNT (ACDelco #89059339) DM (MV7) 2010-2012 01
073 19178531 SPRING, SHFT DTNT BALL DM (MV7) 2008-2011 01
074 92195066 SPRING, SHFT SHF DTNT (ACDelco #92195066) DM (MV7) 2011-2012 01
076 89058857 BOLT, SHFT SHF DTNT LVR (M8X1.0X21.2) DM (MV7) 2010-2012 01
077 89059338 PIN, SHFT SHF INTLK (M4X11.2) DM (LF1, LLT, MV7, JJB) 2010-2011 02
078 89059337 PIN, SHFT SHF INTLK (M6X13.6) DM (LF1, LLT, MV7, JJB) 2010-2011 02
080 89048292 BALL, SHFT DTNT DM (MV7) 2010-2012 04
081 89058858 BOLT, SHFT CONT LVR BRKT (M8X1.25X32) DM (MV7) 2008-2012 01
081 89048272 BOLT, SHFT CONT LVR BRKT (4.008) DM (MV7) 2010-2011 01
082 89058824 RETAINER, SEL CONT LVR PIN DM (MV7) 2010-2012 01
100 89059316 PIN, SHFT SHF (4.408) DM (MV7) 2010-2012 01
101 89058842 WEIGHT, SHFT LVR C/BAL (4.105) DM (MV7) 2010-2012 01
102 89059320 BLOCK, SHFT CONT SHF DM (MV7) 2010-2012 01
909 89048272 PIN, SHFT LVR (4.008) DM (MV7) 2010-2011 01
910 89048272 PIN, 1ST 2ND SHFT FORK (4.008) DM (MV7) 2008-2012 01
911 89048272 BOLT, 5TH 6TH SHFT FORK (4.008) DM (MV7) 2010-2011 01
