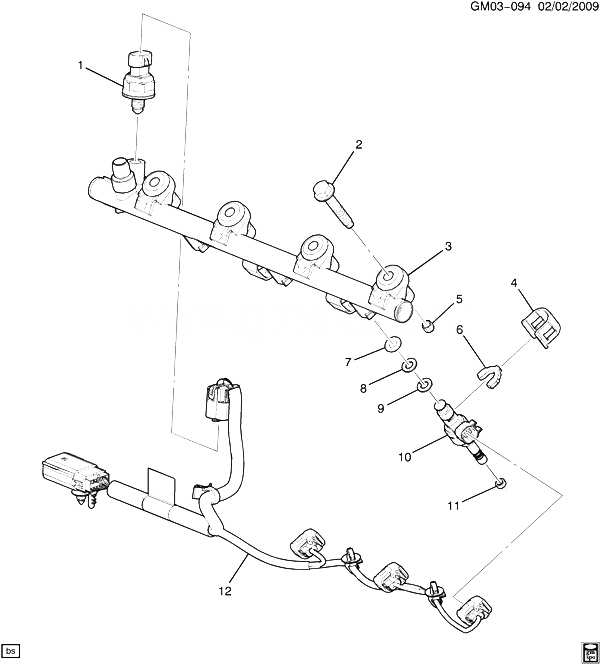

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12635273 |
SENSOR, F/INJN FUEL RL FUEL PRESS (ACDelco #12635273) |
DM |
2011-2013 |
01 |
| 001 |
12635273 |
SENSOR, F/INJN FUEL RL FUEL PRESS (ACDelco #12635273) |
DR (EXPORT) |
2011-2013 |
01 |
| 002 |
11588729 |
BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) |
|
2010-2013 |
04 |
| 003 |
12629929 |
RAIL, F/INJN FUEL |
DM (LF1) |
2010-2011 |
01 |
| 003 |
12633593 |
RAIL, F/INJN FUEL |
DM (LF1) |
2010-2011 |
01 |
| 003 |
12633593 |
RAIL, F/INJN FUEL |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 003 |
12629929 |
RAIL, F/INJN FUEL |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 004 |
12629925 |
RETAINER, F/INJR (PART OF 10) (18.1X20) (*KIT1) |
DM (LF1) |
2010-2011 |
04 |
| 004 |
12629925 |
RETAINER, F/INJR (PART OF 10) (18.1X20) (*KIT1) |
DR (LF1) (EXPORT) |
2010-2011 |
04 |
| 005 |
11588327 |
RETAINER, F/INJN FUEL RL PLUG (M8 BOLT) (4.128) |
DM (LF1) |
2010-2011 |
AR |
| 005 |
11588327 |
RETAINER, F/INJN FUEL RL PLUG (M8 BOLT) (4.128) |
DR (LF1) (EXPORT) |
2010-2011 |
AR |
| 006 |
|
BUSHING, F/INJR (PART OF 10) (*KIT1) |
|
2011-2011 |
|
| 007 |
|
SEAL, F/INJN FUEL RL (O RING) (PART OF 10) (*KIT1) |
|
2011-2011 |
|
| 008 |
|
SPACER, F/INJR SEAL (PART OF 10) (*KIT1) |
|
2011-2011 |
|
| 009 |
|
SPACER, F/INJR SEAL (PART OF 10) (*KIT1) |
|
2011-2011 |
|
| 010 |
12629927 |
INJECTOR, DIR FUEL (INCLS 4, 6-9, 11) (RETAINER BUSHING ARE NOT INCLUDED. ORDER SEAL KIT PER APPL) (ACDelco #217-3449) |
DM (LF1) |
2010-2011 |
06 |
| 010 |
12629927 |
INJECTOR, DIR FUEL (INCLS 4, 6-9, 11) (RETAINER BUSHING ARE NOT INCLUDED. ORDER SEAL KIT PER APPL) (ACDelco #217-3449) |
DR (LF1) (EXPORT) |
2010-2011 |
06 |
| 011 |
|
SEAL, F/INJR NOZ HSG (PART OF 10) (*KIT1, KIT2) |
|
2011-2011 |
|
| 012 |
12629928 |
HARNESS, F/INJR WRG |
DM (LF1, MV7, MN6) |
2010-2011 |
01 |
| 012 |
12629928 |
HARNESS, F/INJR WRG |
DM (LF1, MYA, MX0, MX7) |
2010-2011 |
01 |
| 012 |
12629930 |
HARNESS, F/INJR WRG |
DM (LF1, MV7, JJB, MN6) |
2010-2011 |
01 |
| 012 |
12629930 |
HARNESS, F/INJR WRG |
DM (LF1, MYA, JJB, MX7) |
2010-2011 |
01 |
| 012 |
12629928 |
HARNESS, F/INJR WRG |
DR (LF1, MYA, MX0) (EXPORT) |
2010-2011 |
01 |
| 012 |
12629930 |
HARNESS, F/INJR WRG |
DM, DR (LF1, MYA, JJB, MX0) (EXPORT) |
2010-2011 |
01 |
| K01 |
12631646 |
SEAL KIT, F/INJR (O RING) (INCLS 4, 6-9, 11) (1 KIT PER RAIL (O RING, SEALS, SPACERS)) (ACDelco #217-3399) |
DM (LF1) |
2010-2011 |
02 |
| K01 |
12631646 |
SEAL KIT, F/INJR (O RING) (INCLS 4, 6-9, 11) (1 KIT PER RAIL (O RING, SEALS, SPACERS)) (ACDelco #217-3399) |
DR (LF1) |
2010-2011 |
02 |
| K02 |
12644827 |
SEAL KIT, F/INJR (O RING) (INCLS 11) (INJECTOR TIP, O RINGS, SEALS ONLY. 1 KIT PER ENGINE.) (ACDelco #12644827) |
DM (LF1) |
2010-2011 |
06 |
| K02 |
12644827 |
SEAL KIT, F/INJR (O RING) (INCLS 11) (INJECTOR TIP, O RINGS, SEALS ONLY. 1 KIT PER ENGINE.) (ACDelco #12644827) |
DR (LF1) |
2010-2011 |
06 |
