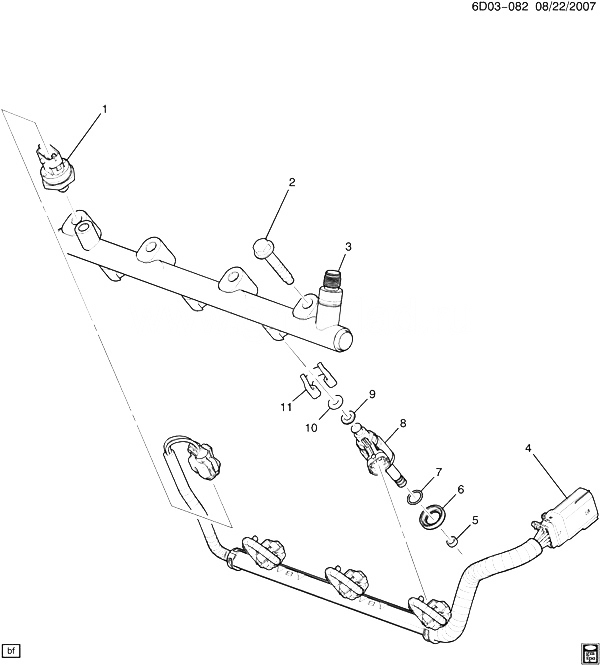

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SENSOR, FUEL PRESS |
(LF1) |
2008-2011 |
|
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (3.682) (ACDelco #213-4420) |
DM (LLT, MYB, JJB, MX7) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (ACDelco #213-4420) |
DM (LLT, MYB, JJB, MX7) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (3.682) (ACDelco #213-4420) |
DM (LLT, MYB, JJB, MX0) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (3.682) (ACDelco #213-4420) |
DM (LLT, MV7, JJB, MN6) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (ACDelco #213-4420) |
DM (LLT, MYB, JJB, MX0) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (ACDelco #213-4420) |
DM (LLT, MV7, JJB, MN6) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (3.682) (ACDelco #213-4420) |
DR (LLT, MYB, JJB, MX0) (EXPORT) |
2010-2011 |
01 |
| 001 |
12621292 |
SENSOR, FUEL PRESS (PART OF ENGINE) (MATING CONN W/LEADS USE 88988583) (ACDelco #213-4420) |
DR (LLT, MYB, JJB, MX0) (EXPORT) |
2010-2011 |
01 |
| 002 |
11519171 |
BOLT, F/INJN FUEL RL (M8X1.25X50) (3.275) |
D (LLT) |
2010-2011 |
04 |
| 003 |
12623365 |
RAIL, F/INJN FUEL |
DM (LLT) |
2010-2011 |
01 |
| 003 |
12623366 |
RAIL, F/INJN FUEL |
DM (LLT) |
2010-2011 |
01 |
| 003 |
12623366 |
RAIL, F/INJN FUEL |
DR (LLT) (EXPORT) |
2010-2011 |
01 |
| 003 |
12623365 |
RAIL, F/INJN FUEL |
DR (LLT) (EXPORT) |
2010-2011 |
01 |
| 004 |
12621095 |
HARNESS, F/INJR WRG |
DM (LLT, MYB, JJB, MX7, MX0) |
2010-2011 |
01 |
| 004 |
12621095 |
HARNESS, F/INJR WRG |
DM (LLT, MV7, JJB, MN6) |
2010-2011 |
01 |
| 004 |
12621096 |
HARNESS, F/INJR WRG |
DM (LLT, MV7, JJB, MN6) |
2010-2011 |
01 |
| 004 |
12621096 |
HARNESS, F/INJR WRG |
DM (LLT, MYB, JJB, MX7, MX0) |
2010-2011 |
01 |
| 004 |
12621095 |
HARNESS, F/INJR WRG |
DR (LLT, MYB, JJB, MX7, MX0) (EXPORT) |
2010-2011 |
01 |
| 004 |
12621096 |
HARNESS, F/INJR WRG |
DR (LLT, MYB, JJB, MX7, MX0) (EXPORT) |
2010-2011 |
01 |
| 005 |
|
SEAL, F/INJR NOZ HSG (PART OF 8) (*KIT1) |
|
2011-2011 |
|
| 006 |
|
INSULATOR, F/INJN FUEL RL CVR (PART OF 8) (*KIT1) |
|
2011-2011 |
|
| 007 |
|
RETAINER, F/INJR (BLANK) (PART OF 8) (*KIT1) |
|
2011-2011 |
|
| 008 |
12638530 |
INJECTOR, DIR FUEL (INCLS 5-7, 10) (ACDelco #217-3445) |
DM (LLT) |
2010-2011 |
06 |
| 008 |
12638530 |
INJECTOR, DIR FUEL (INCLS 5-7, 10) (ACDelco #217-3445) |
DR (LLT) (EXPORT) |
2011-2011 |
06 |
| 009 |
|
SPACER, F/INJR SEAL (*KIT1) |
|
2011-2011 |
|
| 010 |
|
SEAL, F/INJN FUEL RL (O RING) (PART OF 8) (*KIT1) |
|
2011-2011 |
|
| 011 |
|
CLAMP, DIR F/INJR HLDN (*KIT1) |
|
2011-2011 |
|
| K01 |
12618798 |
SEAL KIT, F/INJR (O RING) (FOR INJ W/RETAINING CLIP ON INSULATOR. SEE 12644934 FOR INJECTOR W/3INTERNAL RETAINING TABS ON INSULATOR.) (INCLS 5-7, 9-11) (W/INJECTOR HARDWARE) (3.300) (ACDelco #217-3096) |
DM (LLT) |
2010-2011 |
02 |
| K01 |
12644934 |
SEAL KIT, F/INJR (O RING) (FOR USE W/INJ THAT HAS 3 INTERNAL RETAINING TABS ON INSULATOR. SEE 12618798 FOR INJ W/RETAINING CLIP ON INSULATOR.) (INCLS 5-7, 9-11) (ACDelco #12644934) |
DM (LLT) |
2010-2011 |
02 |
| K01 |
12618798 |
SEAL KIT, F/INJR (O RING) (FOR INJ W/RETAINING CLIP ON INSULATOR. SEE 12644934 FOR INJECTOR W/3INTERNAL RETAINING TABS ON INSULATOR.) (INCLS 5-7, 9-11) (W/INJECTOR HARDWARE) (3.300) (ACDelco #217-3096) |
DR (LLT) (EXPORT) |
2010-2011 |
02 |
| K01 |
12644934 |
SEAL KIT, F/INJR (O RING) (FOR USE W/INJ THAT HAS 3 INTERNAL RETAINING TABS ON INSULATOR. SEE 12618798 FOR INJ W/RETAINING CLIP ON INSULATOR.) (INCLS 5-7, 9-11) (ACDelco #12644934) |
DR (LLT) (EXPORT) |
2010-2011 |
02 |
