| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

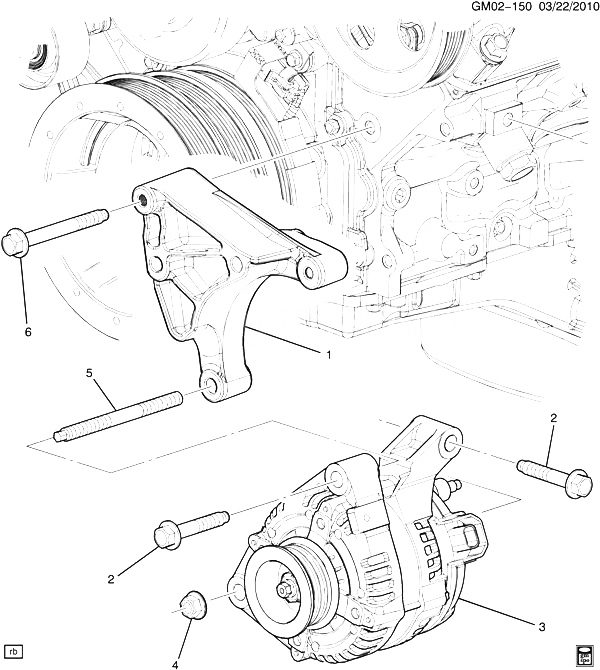

| 001 |
12578550 |
BRACKET, GEN |
DN (LSA) |
2009-2013 |
01 |
| 002 |
11518630 |
BOLT, HFH, M10X1.5X60, 26 THD, 22.3 OD, 10.9, GMW3359, MAT POINT (GEN) |
|
2009-2013 |
02 |
| 003 |
25925447 |
GENERATOR, (ACDelco #25925447) |
D (LSA, KG4) |
2011-2013 |
01 |
| 004 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (GEN P/S PUMP BRKT) (2.383) |
|
2009-2013 |
01 |
| 005 |
12555610 |
STUD, GEN BRKT (M10X1.5X96) (1.060) |
DN (LSA) |
2009-2013 |
01 |
| 006 |
11518637 |
BOLT, HFH M10X1.5X95, 26 THD, 22.3 OD, 9.8, 7114M, MACH, 7.5 MAT-PT (GEN BRKT) |
|
2009-2013 |
02 |
