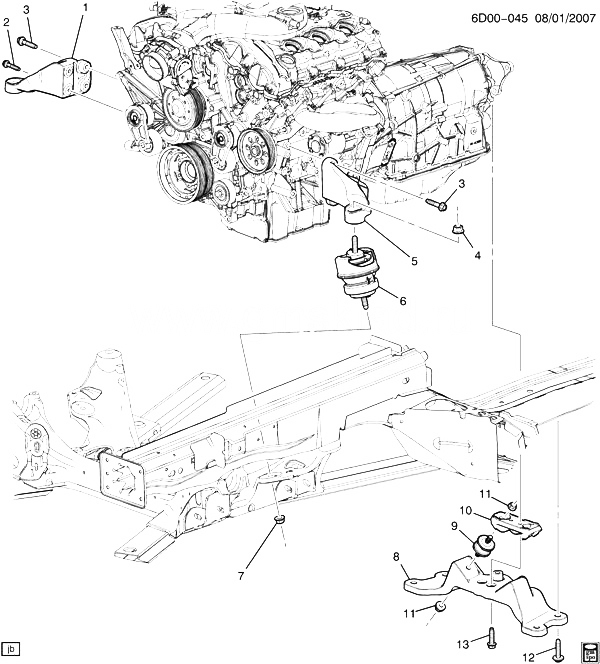

(6D00-045) 2011-2013 DM,DR35-47-69 КРЕПЛЕНИЕ ДВИГАТЕЛЯ И КОРОБКИ ПЕРЕДАЧ (ЗАДНИЙ ПРИВОД MX0,MN6) CADILLAC - CTS SEDAN 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25905221 BRACKET, ENG MT DM35-69 (LF1, LLT, MX0) 2010-2011 01
001 25905221 BRACKET, ENG MT DM (MN6) 2011-2012 01
001 25905221 BRACKET, ENG MT DR35-69 (LF1, LLT, MX0) (EXPORT) 2010-2011 01
001 25905221 BRACKET, ENG MT DR (MN6) (EXPORT) 2011-2012 01
002 11519171 BOLT, ENG MT BRKT (M8X1.25X50) (3.275) D35-47-69 (MX0, MV7) 2011-2012 01
003 11517383 BOLT, HEX W/CON SPR WASH, M10X1.5X55, 28 OD, 37 THD, 10.9, 7114M (ENG MT BRKT) 2008-2013 07
004 11517780 NUT, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT) 2008-2013 02
005 25905220 BRACKET, ENG MT DM35-69 (LF1, LLT, MX0) 2010-2011 01
005 25905220 BRACKET, ENG MT DM (MN6) 2011-2012 01
005 25905220 BRACKET, ENG MT DR35-69 (LF1, LLT, MX0) (EXPORT) 2010-2011 01
005 25905220 BRACKET, ENG MT DR (MN6) (EXPORT) 2011-2012 01
006 22783392 MOUNT, ENG D35-47-69 (LF1, LLT, MN6, MX0) 2011-2011 02
007 11516078 NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ENG MT FRM SI) 2008-2013 02
008 15234764 MOUNT, TRANS RR (INCLS 9, 10) D47-69 (LLT, MV7) 2011-2011 01
008 20945772 MOUNT, TRANS RR (INCLS 9, 10) DM (LF1, MV7) 2011-2011 01
008 20945771 MOUNT, TRANS RR (INCLS 9, 10) DM (LF1, MX0) 2010-2011 01
008 20945771 MOUNT, TRANS RR (INCLS 9, 10) DM (LLT, MX0) 2010-2011 01
008 20945772 MOUNT, TRANS RR (INCLS 9, 10) DR (LF1, MV7) (EXPORT) 2011-2011 01
008 20945771 MOUNT, TRANS RR (INCLS 9, 10) DR (LF1, MX0) (EXPORT) 2010-2011 01
008 20945771 MOUNT, TRANS RR (INCLS 9, 10) DR (LLT, MX0) (EXPORT) 2010-2011 01
009 25843484 INSULATOR, TRANS RR MT SPR (PART OF 8) DM (LLT, LF1, MX0) 2010-2011 02
009 25843484 INSULATOR, TRANS RR MT SPR (PART OF 8) DR (LLT, LF1, MX0) (EXPORT) 2010-2011 02
010 MOUNT, TRANS RR (PART OF 8) 2011-2013
011 11516078 NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ENG MT FRM SI) 2008-2013 04
012 11589169 BOLT ASM - HEX HD W/CONICAL WASHER, M10X1.50X50, GMW25 (10.9) STL, GMW33559 (TRANS RR MT BRKT) 2008-2013 04
013 11588741 BOLT, HFH M10X.15X45 (TRANS MT) (2.042) 2009-2013 02
