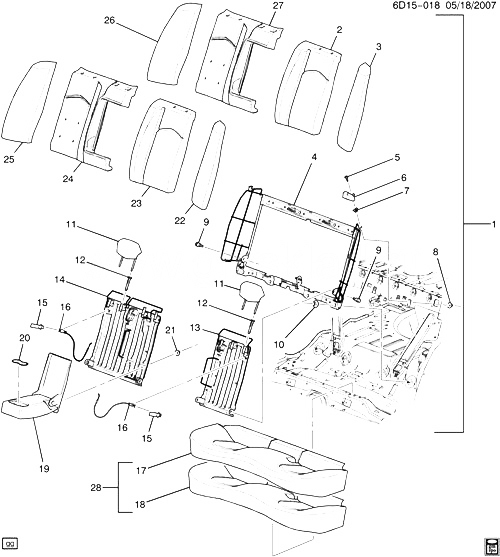

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15860394 |
CUSHION, R/SEAT BK (INCLS 2-7, 9, 11-16, 19-27) (EBONY) |
DM69 (AM9, 01G) (EXC A82) |
2010-2010 |
01 |
| 001 |
15860396 |
CUSHION, R/SEAT BK (INCLS 2-7, 9, 11-16, 19-27) (CASHMERE) |
DM69 (AM9, 01D) (EXC A82) |
2010-2010 |
01 |
| 001 |
25905624 |
CUSHION, R/SEAT BK (INCLS 2-7, 9, 11-16, 19-27) (TITANIUM) |
DM69 (AM9, 01C) (EXC A82) |
2010-2010 |
01 |
| 004 |
25780733 |
РАМА, R/SEAT BK CUSH (ЧАСТЬ OF 1) |
DM69 (AM9) |
2010-2010 |
01 |
| 005 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 1) |
|
2008-2010 |
02 |
| 006 |
25780640 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (CASHMERE) |
DM (01D) |
2010-2010 |
01 |
| 006 |
25780640 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (CASHMERE) |
DR (01D) (EXPORT) |
2010-2010 |
01 |
| 006 |
25780642 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (EBONY) |
DM, DN69 (01G) |
2010-2010 |
01 |
| 006 |
25780642 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (EBONY) |
DR69 (01G) (EXPORT) |
2010-2010 |
01 |
| 006 |
25780644 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (CASHMERE) |
DM, DN69 (01D) |
2010-2010 |
01 |
| 006 |
25780644 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (01D) (EXPORT) |
2010-2010 |
01 |
| 006 |
25780646 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (EBONY) |
DM, DN69 (01G) |
2010-2010 |
01 |
| 006 |
25780646 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (EBONY) |
DR69 (01G) (EXPORT) |
2010-2010 |
01 |
| 006 |
25909205 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (TITANIUM) |
DM, DN69 (01C) |
2010-2010 |
01 |
| 006 |
25909205 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (TITANIUM) |
DR69 (01C) (EXPORT) |
2010-2010 |
01 |
| 006 |
25909206 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (TITANIUM) |
DM, DN (01C) |
2010-2010 |
01 |
| 006 |
25909206 |
BEZEL, R/SEAT SHLDR BELT OPG (ЧАСТЬ OF 1) (TITANIUM) |
DR69 (01C) (EXPORT) |
2010-2010 |
01 |
| 007 |
11517068 |
NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (ЧАСТЬ OF 1) |
|
2008-2010 |
04 |
| 008 |
11508388 |
ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (R/SEAT) (8.915) |
|
2008-2010 |
04 |
| 009 |
88952646 |
БОЛТ, R/SEAT (ЧАСТЬ OF 1) (11.628) |
DM, DN |
2009-2010 |
02 |
| 009 |
88952646 |
БОЛТ, R/SEAT (ЧАСТЬ OF 1) (11.628) |
DR (EXPORT) |
2009-2010 |
02 |
| 010 |
11515552 |
ГАЙКА, HEX W/CON WA, M10X1.5X13.5, 31.75 OD, 9, ZF (R/SEAT BK CUSH BRKT) |
|
2008-2010 |
04 |
| 011 |
25780629 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (01D) |
2010-2010 |
02 |
| 011 |
25780629 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (01D) (EXPORT) |
2010-2010 |
02 |
| 011 |
25780631 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (EBONY) |
DM69 (EBS, 01G) |
2010-2010 |
02 |
| 011 |
25780631 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (EBONY) |
DN (01D, 01G) |
2010-2010 |
02 |
| 011 |
25780631 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (EBONY) |
DR69 (EBS, 01G) (EXPORT) |
2010-2010 |
02 |
| 011 |
25780634 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (EBONY) |
DM69 (EAM, 01G) |
2010-2010 |
02 |
| 011 |
25780634 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (EBONY) |
DR69 (EAM, 01G) (EXPORT) |
2010-2010 |
02 |
| 011 |
25909204 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (EAM, 01C) |
2010-2010 |
02 |
| 011 |
25909204 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (TITANIUM) |
DR69 (01C) (EXPORT) |
2010-2010 |
02 |
| 011 |
25957673 |
RESTRAINT, R/SEAT HD (ЧАСТЬ OF 1) (TITANIUM) |
D69 (ECH, 01C) |
2010-2010 |
02 |
| 012 |
15216387 |
GUIDE, R/SEAT H/RST (ЧАСТЬ OF 1) (MOLDED IN BLACK) |
D69 |
2008-2010 |
01 |
| 015 |
25891462 |
STRAP, R/SEAT PULL (ЧАСТЬ OF 1) (EBONY) |
D69 (01G) |
2010-2010 |
02 |
| 015 |
25891462 |
STRAP, R/SEAT PULL (ЧАСТЬ OF 1) (EBONY) |
DN69 (01D) |
2010-2010 |
02 |
| 015 |
25891463 |
STRAP, R/SEAT PULL (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (01D) |
2010-2010 |
02 |
| 015 |
25891463 |
STRAP, R/SEAT PULL (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (01D) (EXPORT) |
2010-2010 |
02 |
| 015 |
25909232 |
STRAP, R/SEAT PULL (ЧАСТЬ OF 1) (TITANIUM) |
D69 (01C) |
2010-2010 |
02 |
| 016 |
25780738 |
LOCK, R/SEAT BK CUSH (ЧАСТЬ OF 1) |
DM |
2008-2010 |
01 |
| 016 |
25780738 |
LOCK, R/SEAT BK CUSH (ЧАСТЬ OF 1) |
DN |
2009-2010 |
01 |
| 016 |
25780738 |
LOCK, R/SEAT BK CUSH (ЧАСТЬ OF 1) |
DR (EXPORT) |
2009-2010 |
01 |
| 017 |
15898719 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (EBONY) |
DM69 (EAM, 01G) |
2010-2010 |
01 |
| 017 |
15898719 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (EBONY) |
DR69 (EAM, 01G) (EXPORT) |
2010-2010 |
01 |
| 017 |
15898724 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (CASHMERE) |
DM69 (01D) |
2010-2010 |
01 |
| 017 |
15898724 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (CASHMERE) |
DR69 (01D) (EXPORT) |
2010-2010 |
01 |
| 017 |
15898726 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (EBONY)
| DM69 (EBS, 01G) |
2010-2010 |
01 |
|
| 017 |
15898726 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (EBONY)
| DR69 (EBS, 01G) (EXPORT) |
2010-2010 |
01 |
|
| 017 |
25909188 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (TITANIUM) |
DM69 (EAM, 01C) |
2010-2010 |
01 |
| 017 |
25909188 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (TITANIUM) |
DR69 (EAM, 01C) (EXPORT) |
2010-2010 |
01 |
| 017 |
25909190 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (EBONY) |
DN (01G) |
2010-2010 |
01 |
| 017 |
25909191 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (CASHMERE) |
DN (01D) |
2010-2010 |
01 |
| 017 |
25909192 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (TITANIUM) |
DN (01C) |
2010-2010 |
01 |
| 017 |
25909199 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (TITANIUM) |
DM69 (EBS, 01C) |
2010-2010 |
01 |
| 017 |
25909199 |
COVER, R/SEAT CUSH (ЧАСТЬ OF 28) (TITANIUM) |
DR69 (EBS, 01C) (EXPORT) |
2010-2010 |
01 |
| 018 |
25777064 |
PAD, R/SEAT CUSH (ЧАСТЬ OF 28) |
D69 |
2008-2010 |
01 |
| 019 |
25778000 |
ARMREST, R/SEAT (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (AM9, 01D) |
2010-2010 |
01 |
| 019 |
25778000 |
ARMREST, R/SEAT (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (AM9, 01D) (EXPORT) |
2010-2010 |
01 |
| 019 |
25778002 |
ARMREST, R/SEAT (ЧАСТЬ OF 1) (EBONY) |
DM69 (AM9, 01G) |
2010-2010 |
01 |
| 019 |
25909225 |
ARMREST, R/SEAT (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (AM9, 01C) |
2010-2010 |
01 |
| 020 |
25780739 |
LINER, R/SEAT A/RST CUP HLDR (ЧАСТЬ OF 1) |
D69 |
2008-2010 |
01 |
| 021 |
11517068 |
NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (ЧАСТЬ OF 1) |
|
2008-2010 |
04 |
| 022 |
15898755 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (AM9, 01D) |
2010-2010 |
01 |
| 022 |
15898755 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (AM9, 01D) (EXPORT) |
2010-2010 |
01 |
| 022 |
15898757 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DM69 (AM9, 01G) |
2010-2010 |
01 |
| 022 |
15898757 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DN (AM9, 01D, 01G) |
2010-2010 |
01 |
| 022 |
15898757 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DR69 (AM9, EBS, 01G) (EXPORT) |
2010-2010 |
01 |
| 022 |
25909228 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (AM9, 01C) |
2010-2010 |
01 |
| 023 |
15898747 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (AM9, 01D) |
2010-2010 |
01 |
| 023 |
15898749 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (EBONY) |
DM69 (AM9, 01G) |
2010-2010 |
01 |
| 023 |
25909227 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (AM9, EBS, 01C) |
2010-2010 |
01 |
| 024 |
15898743 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (AM9, 01D) |
2010-2010 |
01 |
| 024 |
15898745 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (EBONY) |
DM69 (AM9, 01G) |
2010-2010 |
01 |
| 024 |
25909226 |
COVER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (AM9, EBS, 01C) (EXC A82) |
2010-2010 |
01 |
| 025 |
15898759 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DM69 (AM9, 01D) |
2010-2010 |
01 |
| 025 |
15898759 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (CASHMERE) |
DR69 (AM9, 01D) (EXPORT) |
2010-2010 |
01 |
| 025 |
15898761 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DM69 (AM9, 01G) |
2010-2010 |
01 |
| 025 |
15898761 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DN (AM9, 01D, 01G) |
2010-2010 |
01 |
| 025 |
15898761 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (EBONY) |
DR69 (AM9, EBS, 01G) (EXPORT) |
2010-2010 |
01 |
| 025 |
25909229 |
COVER, R/SEAT BK SI CUSH (ЧАСТЬ OF 1) (TITANIUM) |
DM69 (AM9, 01C) |
2010-2010 |
01 |
| 028 |
15860381 |
CUSHION, R/SEAT (INCLS 17, 18) (EBONY) |
DM69 (EAM, 01G) |
2010-2010 |
01 |
| 028 |
15860381 |
CUSHION, R/SEAT (INCLS 17, 18) (EBONY) |
DR69 (EAM, 01G) (EXPORT) |
2010-2010 |
01 |
| 028 |
15860383 |
CUSHION, R/SEAT (INCLS 17, 18) (EBONY) |
DM69 (EBS, 01G) |
2010-2010 |
01 |
| 028 |
15860383 |
CUSHION, R/SEAT (INCLS 17, 18) (EBONY) |
DR69 (EBS, 01G) (EXPORT) |
2010-2010 |
01 |
| 028 |
15860385 |
CUSHION, R/SEAT (INCLS 17, 18) (CASHMERE) |
DM69 (01D) |
2010-2010 |
01 |
| 028 |
15860385 |
CUSHION, R/SEAT (INCLS 17, 18) (CASHMERE) |
DR69 (01D) (EXPORT) |
2010-2010 |
01 |
| 028 |
25817228 |
CUSHION, R/SEAT (INCLS 17, 18) (EBONY) |
DN69 (01G) |
2010-2010 |
01 |
| 028 |
25817230 |
CUSHION, R/SEAT (INCLS 17, 18) (CASHMERE) |
DN69 (01D) |
2010-2010 |
01 |
| 028 |
25905612 |
CUSHION, R/SEAT (INCLS 17, 18) (TITANIUM) |
DM69 (EAM, 01C) |
2010-2010 |
01 |
| 028 |
25905612 |
CUSHION, R/SEAT (INCLS 17, 18) (TITANIUM) |
DR69 (EAM, 01C) (EXPORT) |
2010-2010 |
01 |
| 028 |
25905613 |
CUSHION, R/SEAT (INCLS 17, 18) (TITANIUM) |
DM69 (EBS, 01C) |
2010-2010 |
01 |
| 028 |
25905613 |
CUSHION, R/SEAT (INCLS 17, 18) (TITANIUM) |
DR69 (EBS, 01C) (EXPORT) |
2010-2010 |
01 |
| 028 |
25905614 |
CUSHION, R/SEAT (INCLS 17, 18) (TITANIUM) |
DN69 (01C) |
2010-2010 |
01 |
