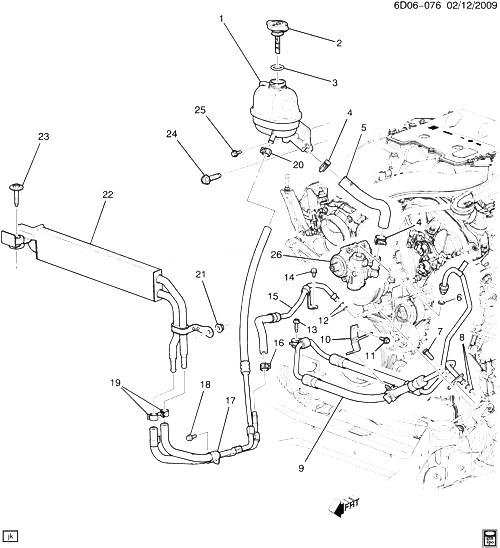

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20774507 |
RESERVOIR, P/S FLUID |
DM (LF1, LLT) |
2010-2010 |
01 |
| 002 |
25830754 |
CAP, P/S FLUID RSVR (INCLS 3) |
DM |
2010-2010 |
01 |
| 003 |
|
SEAL, P/S FLUID RSVR CAP (O RING) (ЧАСТЬ OF 2) |
|
2010-2010 |
|
| 004 |
11516222 |
CЛАМПА, ПРУЖИНАBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (ЧАСТЬ OF 5)
|
2010-2010 |
01 |
|
| 005 |
25821309 |
HOSE, P/S FLUID RSVR OTLT (INCLS 4)
| DM (LF1, LLT) |
2010-2010 |
01 |
|
| 006 |
25948283 |
SEAL, P/S GR INL HOSE (ЧАСТЬ OF 9) (NATURAL) (PRESSURE BACKING RING) |
DM (LF1, LLT, MN6, MX0) (EXC XFE) |
2010-2010 |
01 |
| 007 |
11517937 |
БОЛТ, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT)
|
2010-2010 |
01 |
|
| 008 |
|
SEAL, P/S GR INL HOSE (O RING) (ЧАСТЬ OF 9) |
|
2010-2010 |
|
| 009 |
25909674 |
HOSE, P/S GR INL (INCLS 6, 8)
| DM (LF1, LLT, MN6, MX0) (EXC XFE) |
2010-2010 |
01 |
|
| 010 |
25940656 |
BRACKET, P/S GR INL PIPE CLIP |
DM (LF1, LLT, MN6, MX0) |
2010-2010 |
01 |
| 011 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR INL HOSE BRKT) |
|
2010-2010 |
01 |
| 012 |
25948284 |
SEAL, P/S GR INL HOSE (O RING) (ЧАСТЬ OF 15) |
DM |
2010-2010 |
01 |
| 013 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (P/S GR INL HOSE BRKT)
|
2010-2010 |
01 |
|
| 014 |
11518061 |
БОЛТ/SCREW, МАСЛЯНЫЙ ПОДДОН (P/S GR OTLT HOSE BRKT) |
|
2010-2010 |
01 |
| 015 |
25821305 |
HOSE, P/S GR OTLT (INCLS 12, 16)
| DM (MN6, MX0) |
2010-2010 |
01 |
|
| 016 |
11517127 |
CЛАМПА, ПРУЖИНА, 17MM-NOM, BLK (ЧАСТЬ OF 15) |
|
2010-2010 |
01 |
| 017 |
25904079 |
HOSE, P/S FLUID CLR OTLT (INCLS 19, 20) |
DM (LF1, LLT) |
2010-2010 |
01 |
| 018 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (P/S FLUID CLR BRKT) |
|
2010-2010 |
01 |
| 019 |
11517127 |
CЛАМПА, ПРУЖИНА, 17MM-NOM, BLK (ЧАСТЬ OF 17) |
|
2010-2010 |
01 |
| 020 |
25878706 |
CЛАМПА, P/S FLUID RSVR INL HOSE (ЧАСТЬ OF 17) |
DM |
2010-2010 |
01 |
| 021 |
11517397 |
ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) |
|
2010-2010 |
08 |
| 022 |
25821303 |
COOLER, P/S FLUID
| DM |
2010-2010 |
01 |
|
| 023 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) |
|
2010-2010 |
01 |
| 024 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (P/S FLUID RSVR)
|
2010-2010 |
01 |
|
| 025 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) |
|
2010-2010 |
01 |
| 026 |
25914590 |
PUMP, P/S (СМ. ГРУППУ 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ КРЕПЛЕНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА)
| DM (LF1, LLT, MN6, MX0) (EXC XFE) |
2010-2010 |
01 |
|
