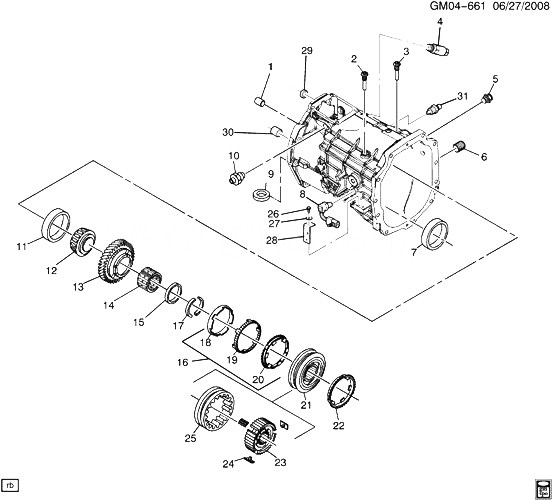

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12523068 |
PIN, TRANS CASE LOC (0.685) |
D (MG9) |
2009-2010 |
02 |
| 002 |
12523243 |
БОЛТ, SHFT GDE DTNT PLT (4.303) |
D (MG9) |
2009-2010 |
02 |
| 003 |
12523243 |
БОЛТ, SHFT GDE DTNT PLT (4.303) |
D (MG9) |
2009-2010 |
02 |
| 004 |
19178667 |
SOLENOID, M/TRNS 2ND 3RD GR BLOCKOUT |
D (MG9) |
2009-2010 |
01 |
| 005 |
19180517 |
CONNECTOR, TRANS FLUID PMP INL PIPE (4.128) (ACDelco #19180517) |
DN69 (LSA, MG9) |
2009-2010 |
01 |
| 006 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRANS OIL FIL) (ACDelco #25522466)
|
2009-2010 |
01 |
|
| 007 |
|
CUP, CNTR GR RR BRG (СМ. ГРУППУ 04.000 РУЧНАЯ ТРАНСМИССИЯ ЧАСТЬ 2 GEARS SHAFTS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2009-2010 |
|
| 008 |
89059441 |
SWITCH, B/U LP (ACDelco #D2299C) |
DN (LSA, MG9, JJB) |
2010-2010 |
01 |
| 009 |
12386078 |
MAGNET, TRANS (ACDelco #12386078) |
D (MG9) |
2009-2010 |
02 |
| 010 |
89059430 |
DETENT, SHFT INTLK |
D (MG9) |
2009-2010 |
01 |
| 011 |
|
CUP, MAIN SHF BRG (ЧАСТЬ OF 12) |
|
2009-2010 |
|
| 012 |
19206219 |
BEARING, MAIN SHF CTR (INCLS 11) |
DN (MG9) |
2009-2010 |
01 |
| 013 |
19178686 |
GEAR, 1ST |
D (MG9) |
2009-2010 |
01 |
| 014 |
12523188 |
BEARING, 1ST GR (4.383) |
D (MG9) |
2009-2010 |
01 |
| 015 |
89059975 |
RING, 1ST 2ND GR SYN RET |
D (MG9) |
2009-2010 |
01 |
| 016 |
19178696 |
RING, 1ST 2ND GR BLOCKING (INCLS 18-20) |
D (MG9) |
2009-2010 |
01 |
| 017 |
89059974 |
WASHER, 1ST GR THR |
D (MG9) |
2009-2010 |
02 |
| 018 |
|
CONE, 2ND GR SYN INR (ЧАСТЬ OF 16) |
|
2009-2010 |
|
| 019 |
|
CONE, 2ND GR SYN OTR (ЧАСТЬ OF 16) |
|
2009-2010 |
|
| 020 |
|
RING, 1ST 2ND GR OTR BLOCKING (ЧАСТЬ OF 16) |
|
2009-2010 |
|
| 021 |
19256164 |
SYNCHRONIZER, 1ST 2ND GR (INCLS 23-25) |
D (MG9) |
2009-2010 |
01 |
| 022 |
|
RING, 1ST 2ND GR OTR BLOCKING |
|
2009-2010 |
|
| 023 |
|
HUB, 1ST 2ND GR SYN (ЧАСТЬ OF 21) |
|
2009-2010 |
|
| 024 |
19178693 |
INSERT, 1ST 2ND GR SYN (ЧАСТЬ OF 21) |
D (MG9) |
2009-2010 |
03 |
| 025 |
|
SLEEVE, 1ST 2ND GR SYN (ЧАСТЬ OF 21) |
|
2009-2010 |
|
| 026 |
89059444 |
БОЛТ, B/U LP SW BRKT |
DN (LSA, MG9, JJB) |
2010-2010 |
01 |
| 027 |
89059443 |
WASHER, B/U LP SW |
DN (LSA, MG9, JJB) |
2010-2010 |
01 |
| 028 |
19206215 |
BRACKET, B/U LP SW |
DN (LSA, MG9, JJB) |
2010-2010 |
01 |
| 029 |
89060023 |
SEAL, TRANS FLUID PMP INL PIPE (O RING) |
DN69 (LSA, MG9) |
2009-2010 |
01 |
| 030 |
89059427 |
BUSHING, SHFT SHF DTNT (4.307) |
D (MG9) |
2009-2010 |
02 |
| 031 |
12458118 |
SENSOR, M/TRNS FLUID TEMP (ACDelco #12458118) |
DN (LSA, MG9) |
2010-2010 |
01 |
