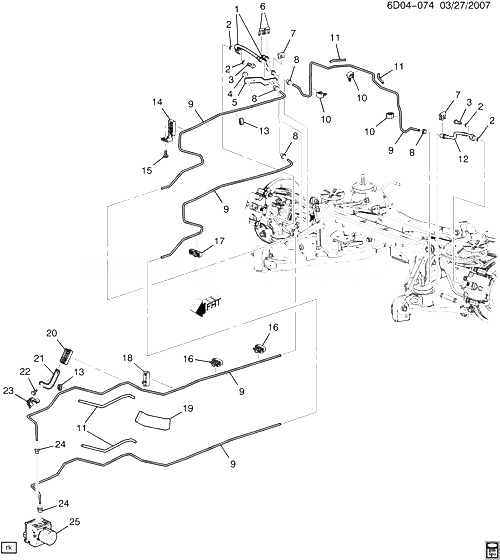

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15818185 |
HOSE, RR BRK (INCLS 2, 3, 5, 6)
| DM |
2010-2010 |
01 |
|
| 001 |
15818185 |
HOSE, RR BRK (INCLS 2, 3, 5, 6)
| DR (EXPORT) |
2010-2010 |
01 |
|
| 001 |
20772533 |
HOSE, RR BRK (INCLS 2, 3, 5, 6) |
DN |
2010-2010 |
01 |
| 002 |
21012386 |
WASHER, RR BRK HOSE (ЧАСТЬ OF 1, 12) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| D |
2008-2010 |
AR |
|
| 003 |
|
БОЛТ, RR BRK HOSE (ЧАСТЬ OF 1, 12) |
|
2009-2010 |
|
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BRK HOSE BRKT)
|
2008-2010 |
02 |
|
| 005 |
|
BRACKET, RR BRK HOSE (ЧАСТЬ OF 1) |
|
2009-2010 |
|
| 006 |
11569742 |
RETAINER, RR BRK HOSE (ЧАСТЬ OF 1) (1 SIDED RETAINER)
| D |
2008-2010 |
02 |
|
| 007 |
11569742 |
RETAINER, RR BRK HOSE (ЧАСТЬ OF 1) (1 SIDED RETAINER)
| D |
2008-2010 |
02 |
|
| 008 |
11569751 |
ГАЙКА, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK PIPE)
|
2008-2010 |
04 |
|
| 009 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| D |
2008-2010 |
AR |
|
| 010 |
15194329 |
CLIP, RR BRK PIPE (27X35X15) |
D |
2008-2010 |
03 |
| 011 |
88964150 |
PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) |
D |
2008-2010 |
AR |
| 012 |
15818186 |
HOSE, RR BRK (INCLS 2, 3) |
DN |
2009-2010 |
01 |
| 012 |
15818187 |
HOSE, RR BRK (INCLS 2, 3)
| DM |
2010-2010 |
01 |
|
| 012 |
15818187 |
HOSE, RR BRK (INCLS 2, 3)
| DR (EXPORT) |
2010-2010 |
01 |
|
| 014 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) |
D |
2008-2010 |
01 |
| 014 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) (3.162) |
D |
2008-2010 |
01 |
| 015 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT)
|
2008-2010 |
01 |
|
| 016 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) |
D |
2008-2010 |
02 |
| 016 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) |
D |
2008-2010 |
02 |
| 017 |
15223304 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) |
DM35-69 |
2010-2010 |
01 |
| 017 |
15223304 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) |
DR35-69 |
2010-2010 |
01 |
| 018 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) |
D |
2008-2010 |
01 |
| 018 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (3.162) |
D |
2008-2010 |
01 |
| 019 |
88964150 |
PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) |
D |
2008-2010 |
AR |
| 020 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) |
D |
2008-2010 |
01 |
| 020 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) (3.162) |
D |
2008-2010 |
01 |
| 021 |
25761218 |
BRACKET, FUEL PIPE |
D |
2008-2010 |
01 |
| 022 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) |
|
2008-2010 |
01 |
| 023 |
25957289 |
RETAINER, FRT BRK PIPE (4 TUBE W/TREE) |
DM (MN6, MX0) |
2008-2010 |
01 |
| 023 |
25957289 |
RETAINER, FRT BRK PIPE (4 TUBE W/TREE) |
DN (LSA) |
2009-2010 |
01 |
| 023 |
25957289 |
RETAINER, FRT BRK PIPE (4 TUBE W/TREE) |
DR (MN6, MX0) |
2009-2010 |
01 |
| 024 |
11569750 |
ГАЙКА, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (FRT BRK PIPE)
|
2008-2010 |
02 |
|
| 025 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (СМ. ГРУППУ 04.000 КЛАПАН РЕГУЛИРОВКИ ДАВЛЕНИЯ В ТОРМОЗНОЙ СИСТЕМЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
