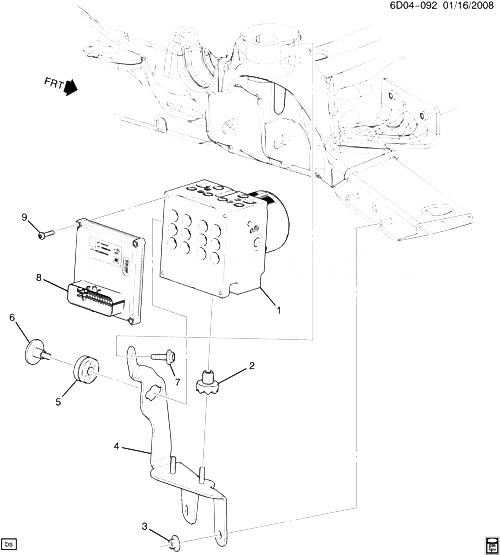

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15298281 |
VALVE, BRK PRESS MOD
| D69 |
2009-2010 |
01 |
|
| 002 |
|
INSULATOR, BRK PRESS MOD VLV |
|
2009-2010 |
|
| 003 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (P/S FLUID RSVR BRKT)
|
2009-2010 |
02 |
|
| 004 |
25818513 |
BRACKET, ELEK BRK CONT MDL (INCLS 5) |
DN |
2009-2010 |
01 |
| 005 |
|
INSULATOR, BRK PRESS MOD VLV BRKT (ЧАСТЬ OF 4) |
|
2009-2010 |
|
| 006 |
|
БОЛТ, ELEK BRK CONT MDL BRKT |
|
2009-2010 |
|
| 007 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (P/S GR INL OTLT PIPE CLIP BRKT) |
|
2009-2010 |
01 |
| 008 |
20803608 |
МОДУЛЬ, ELEK BRK TRACT CONT |
DN |
2009-2010 |
01 |
| 009 |
25854972 |
БОЛТ, ELEK BRK CONT MDL (ECU TO HCU ATTACH) (M4X0.7X19.5, 10THD) |
D |
2009-2010 |
04 |
