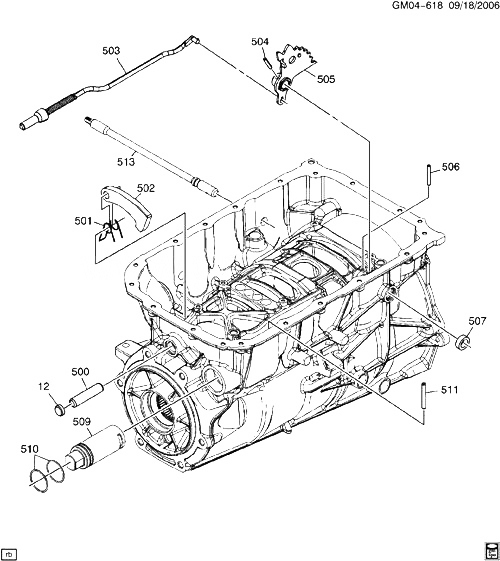

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 012 |
|
PLUG, PARK PAWL SHF HOLE |
|
2010-2010 |
|
| 500 |
|
SHAFT, PARK PAWL |
|
2010-2010 |
|
| 501 |
|
ПРУЖИНА, PARK PAWL |
|
2010-2010 |
|
| 502 |
|
PAWL, PARK |
|
2010-2010 |
|
| 503 |
|
ACTUATOR, PARK PAWL |
|
2010-2010 |
|
| 504 |
24227077 |
PIN, MAN SHFT DTNT LVR HUB (ЧАСТЬ OF 505) |
DM (MYA) |
2010-2010 |
01 |
| 504 |
24227077 |
PIN, MAN SHFT DTNT LVR HUB (ЧАСТЬ OF 505) |
DR (MYA) (EXPORT) |
2010-2010 |
01 |
| 505 |
24234562 |
LEVER, MAN SHFT DTNT (INCLS 504) (ACDelco #24234562) |
DM (MYA) |
2010-2010 |
01 |
| 505 |
24234562 |
LEVER, MAN SHFT DTNT (INCLS 504) (ACDelco #24234562) |
DR69 (MYA) (EXPORT) |
2010-2010 |
01 |
| 506 |
24225792 |
PIN, MAN SHFT SHF (ACDelco #24225792) |
DM (MYA) |
2010-2010 |
01 |
| 506 |
24225792 |
PIN, MAN SHFT SHF (ACDelco #24225792) |
DR (MYA) (EXPORT) |
2010-2010 |
01 |
| 507 |
24235861 |
SEAL, MAN SHFT SHF (*KIT1) (ACDelco #24235861)
| DM (MYA) |
2010-2010 |
01 |
|
| 507 |
24235861 |
SEAL, MAN SHFT SHF (*KIT1) (ACDelco #24235861)
| DR (MYA) (EXPORT) |
2010-2010 |
01 |
|
| 509 |
24244361 |
GUIDE, PARK PAWL ACTR (INCLS 510) (ACDelco #24244361) |
DR (MYA) (EXPORT) |
2010-2010 |
01 |
| 510 |
24224350 |
SEAL, PARK PAWL ACTR GDE (O RING) (ЧАСТЬ OF 509) (*KIT1) (ACDelco #24224350) |
DM (MYA) |
2010-2010 |
02 |
| 510 |
24224350 |
SEAL, PARK PAWL ACTR GDE (O RING) (ЧАСТЬ OF 509) (*KIT1) (ACDelco #24224350) |
DR (MYA) (EXPORT) |
2010-2010 |
02 |
| 511 |
24226102 |
PIN, PARK PAWL ACTR GDE |
DM (MYA) |
2010-2010 |
01 |
| 511 |
24226102 |
PIN, PARK PAWL ACTR GDE |
DR (MYA) (EXPORT) |
2010-2010 |
01 |
| 513 |
24228969 |
SHAFT, MAN SHFT (ACDelco #24228969) |
DM (MYA, MX0) |
2010-2010 |
01 |
| 513 |
24228969 |
SHAFT, MAN SHFT (ACDelco #24228969) |
DR (MYA, MX0) (EXPORT) |
2010-2010 |
01 |
| K01 |
24238913 |
SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 507, 510) (CONTROL VLV SOL ASM) (ACDelco #24238913)
| DM (MYA) |
2010-2010 |
01 |
|
| K01 |
24238913 |
SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 507, 510) (CONTROL VLV SOL ASM) (ACDelco #24238913)
| DR (MYA) |
2010-2010 |
01 |
|
