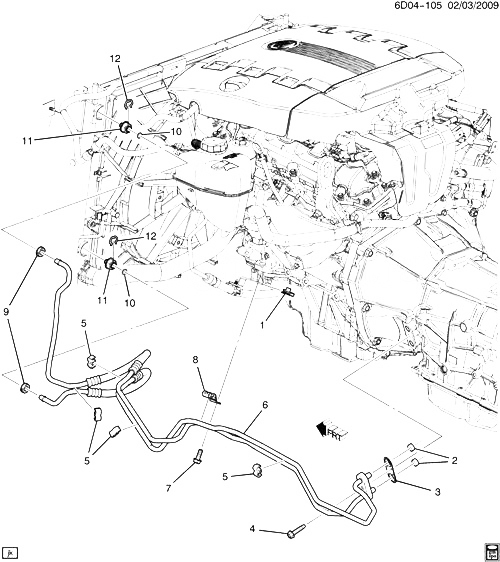

(6D04-105) - 2010 DM,DR35-69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (MYA,MYB, ЗАДНИЙ КОЛЕСО DRIVE MX0, EXC EXTRA CAPACITY V03) CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (TRANS FLUID CLR HOSE CLIP BRKT) 2010-2010 01
002 24237658 SEAL, TRANS FLUID CLR PIPE FTG (SEALS ONE PIPE) D 2010-2010 02
003 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 6) (SEALS TWO ТРУБКИ) DM 2010-2010 01
003 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 6) (SEALS TWO ТРУБКИ) DR (EXPORT) 2010-2010 01
004 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2010-2010 01
005 10405874 CLIP, TRANS FLUID CLR HOSE (ЧАСТЬ OF 6) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DM, DN 2010-2010 01
005 10405874 CLIP, TRANS FLUID CLR HOSE (ЧАСТЬ OF 6) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DR (EXPORT) 2010-2010 01
006 25840026 HOSE, TRANS FLUID CLR (INCLS 3, 5, 8, 9) DM (LF1, LLT, MYA, MYB, JJB, MX0) (EXC V03) 2010-2010 01
006 25840026 HOSE, TRANS FLUID CLR (INCLS 3, 5, 8, 9) DR (LF1, LLT, MYA, MYB, JJB, MX0) (EXC V03) (EXPORT) 2010-2010 01
007 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2010-2010 01
008 BRACKET, TRANS OIL CLR INL OTLT PIPE (ЧАСТЬ OF 6) 2010-2010
009 15052228 CAP, TRANS FLUID CLR PIPE CONN (ЧАСТЬ OF 6) (PLASTIC RETAINER) (ACDelco #15052228) DM 2010-2010 02
009 15052228 CAP, TRANS FLUID CLR PIPE CONN (ЧАСТЬ OF 6) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2010-2010 02
010 SEAL, TRANS FLUID CLR INL PIPE FTG (O RING) 2010-2010
011 FITTING, TRANS FLUID CLR PIPE 2010-2010
012 RETAINER, TRANS FLUID CLR PIPE FTG 2010-2010
