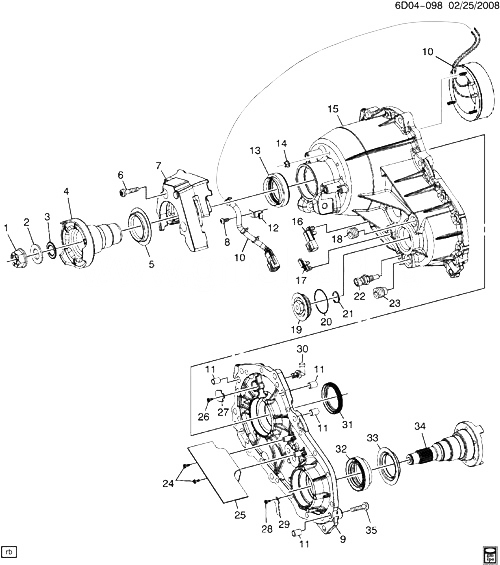

(6D04-098) - 2010 DM35-69 КОРПУС КП ЧАСТЬ 1 CASE COMPONENTS (ПОЛНОПРИВОДНЫЙ MX7) CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059523 ГАЙКА, TRFER CASE RR ВЫХОДНОЙ SHF FLG (4.520) DM (MYA, MYB, JJB, MX7) 2010-2010 01
002 15580315 WASHER, TRFER CASE RR ВЫХОДНОЙ SHF THR (FLAT) (PL, STL) (7/8 I.D. X 1 39/64 O.D., 1/8 THK) (4.510) DM (MYA, MYB, JJB, MX7) 2010-2010 01
003 15635532 SEAL, TRFER CASE RR ВЫХОДНОЙ SHF FLG (O RING) (4.412) DM (MYA, MYB, JJB, MX7) 2010-2010 01
004 19179018 FLANGE, TRFER CASE RR ВЫХОДНОЙ SHF DM (MYA, MYB, JJB, MX7) 2010-2010 01
005 88996681 DEFLECTOR, TRFER CASE RR ВЫХОДНОЙ SHF SEAL DIRT (5.555) DM (MYA, MYB, MX7) 2010-2010 01
006 19180065 БОЛТ, TRFER CASE VIB DPNR DM (MYA, MYB, JJB, MX7) 2010-2010 03
007 19179016 DAMPENER, TRFER CASE VIB (AT RR OF CASE) DM (MYA, MYB, JJB, MX7) 2010-2010 01
008 БОЛТ, WRG HARN BRKT 2008-2010
009 19208066 CASE, TRFER (FRT HALF) DM 2008-2010 01
010 19208080 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, TRFER CASE TWO/FOUR WHL DRV CLU DM (MYA, MYB, JJB, MX7) 2010-2010 01
011 88984499 PIN, TRFER CASE HALF LOC DM69 (MX7) 2008-2010 02
012 BRACKET, WRG HARN 2008-2010
012 24408884 BRACKET, WRG HARN DM, DN (K14) 2010-2010 01
013 88996657 SEAL, TRFER CASE RR ВЫХОДНОЙ SHF DM 2010-2010 01
014 19208081 ГАЙКА, TRFER CASE TWO/FOUR WHL DRV CLU РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ DM (MYA, MYB, JJB, MX7) 2010-2010 03
015 19208077 CASE, TRFER (RR HALF) DM (MYA, MYB, JJB, MX7) 2010-2010 01
016 19206436 RESISTOR, (115 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206437 RESISTOR, (225 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206438 RESISTOR, (453 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206439 RESISTOR, (715 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206440 RESISTOR, (1150 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206441 RESISTOR, (1820 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206442 RESISTOR, (3160 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206443 RESISTOR, (7320 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
016 19206444 RESISTOR, (12700 OHMS) DM (MYA, MYB, JJB, MX7) 2010-2010 AR
018 25522466 PLUG, 1/2-14 X 39/64 (TRFER CASE OIL FILL) (ACDelco #25522466) 2008-2010 01
019 19179015 PLUG, TRFER CASE FRT ВЫХОДНОЙ SHF HOLE (INCLS 20) DM (MYA, MYB, JJB, MX7) 2010-2010 01
020 SEAL, TRFER CASE ACC HOLE PLUG (O RING) (ЧАСТЬ OF 19) 2010-2010
021 19208087 RING, TRFER CASE FRT ВЫХОДНОЙ SHF BRG RET DM (MYA, MYB, JJB, MX7) 2010-2010 01
022 19179158 SENSOR, TRFER CASE FLUID TEMP DM (MYA, MYB, JJB, MX7) 2010-2010 01
023 19179014 PLUG, TRFER CASE OIL DRN DM (MYA, MYB, JJB, MX7) 2010-2010 01
024 88996680 БОЛТ, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN SNBR (M5X0.8X16) DM (MYA, MYB, MX7) 2010-2010 01
025 88996679 SNUBBER, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN D 2008-2010 01
026 88996680 БОЛТ, TRFER CASE VENT BFL (M5X0.8X16) (4.535) DM (MYA, MYB, JJB, MX7) 2010-2010 01
027 88996658 BAFFLE, TRFER CASE VENT DM (MYA, MYB, JJB, MX7) 2008-2010 01
028 БОЛТ, TRFER CASE MT BAR INSL CLA 2008-2010
029 CЛАМПА, TRFER CASE MT BAR INSL 2008-2010
030 19180066 VENT, TRFER CASE DM (MYA, MYB, JJB, MX7) 2010-2010 01
031 88996657 SEAL, TRFER CASE FRT ВЫХОДНОЙ SHF DM (MYA, MYB, JJB, MX7) 2010-2010 01
032 88996656 SEAL, TRFER CASE INPUT SHF D 2008-2010 01
033 88996681 DEFLECTOR, TRFER CASE FRT ВЫХОДНОЙ SHF SEAL DIRT DM (MYA, MYB, JJB, MX7) 2010-2010 01
034 19208069 SHAFT, TRFER CASE FRT ВЫХОДНОЙ DM (MYA, MYB, JJB, MX7) 2010-2010 01
035 89048123 БОЛТ, TRFER CASE HALF (M8X1.25X30) D69 (MX7) 2008-2010 17
035 89048123 БОЛТ, TRFER CASE HALF (M8X1.25X30) DM (MYA, MYB, JJB, MX7) 2010-2010 17
