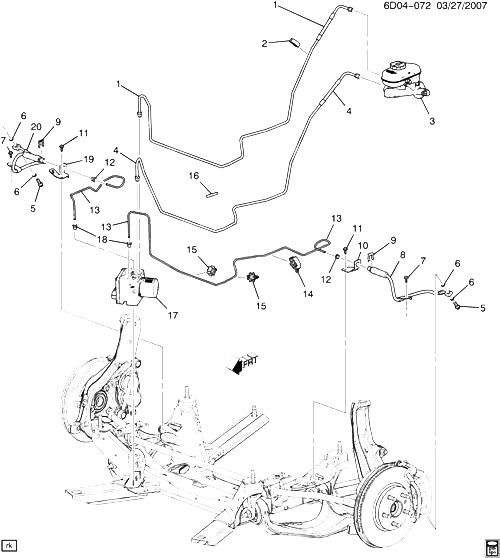

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25882809 |
PIPE, BRK PRESS MOD VLV FRT |
DM35-69 (LF1, LLT, MN6, MX0) |
2010-2010 |
01 |
| 002 |
15904915 |
SPACER, FRT BRK PIPE |
DM |
2008-2010 |
02 |
| 003 |
|
CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДРР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
| 004 |
20779883 |
PIPE, BRK PRESS MOD VLV RR |
DM35-69 (LF1, LLT, MN6, MX0) |
2010-2010 |
01 |
| 005 |
|
БОЛТ, FRT BRK HOSE (ЧАСТЬ OF 8, 20) |
|
2010-2010 |
|
| 006 |
21012386 |
WASHER, FRT BRK HOSE (ЧАСТЬ OF 8, 20) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| D |
2008-2010 |
AR |
|
| 007 |
11516546 |
БОЛТ, HFL, M8X1.25X50, 37.2 THD, 18 OD, 10.9, PZO 7114M (FRT S/ABS) |
|
2008-2010 |
02 |
| 008 |
15818105 |
HOSE, FRT BRK (INCLS 5, 6, 9, 10)
| DM (MN6, MX0) |
2008-2010 |
01 |
|
| 009 |
11569742 |
RETAINER, FRT BRK HOSE (ЧАСТЬ OF 8, 20) (1 SIDED RETAINER)
| D |
2008-2010 |
02 |
|
| 010 |
|
BRACKET, FRT BRK HOSE (ЧАСТЬ OF 8) |
|
2010-2010 |
|
| 011 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (FRT BRK HOSE) |
|
2008-2010 |
02 |
| 012 |
11569751 |
ГАЙКА, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (FRT BRK PIPE)
|
2008-2010 |
02 |
|
| 013 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| D |
2008-2010 |
AR |
|
| 014 |
25957289 |
RETAINER, FRT BRK PIPE (4 TUBE W/TREE) |
DM (MN6, MX0) |
2008-2010 |
01 |
| 015 |
15904901 |
RETAINER, FRT BRK PIPE (STAR SHAPED 3 TUBE W/TREE)
| DM (MN6, MX0) |
2008-2010 |
02 |
|
| 016 |
12477665 |
PROTECTOR, FRT BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) |
DM |
2008-2010 |
AR |
| 017 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (СМ. ГРУППУ 04.000 КЛАПАН РЕГУЛИРОВКИ ДАВЛЕНИЯ В ТОРМОЗНОЙ СИСТЕМЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
| 018 |
11569750 |
ГАЙКА, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (FRT BRK PIPE)
|
2008-2010 |
02 |
|
| 019 |
|
BRACKET, FRT BRK HOSE (ЧАСТЬ OF 20) |
|
2010-2010 |
|
| 020 |
15818106 |
HOSE, FRT BRK (INCLS 5, 6, 9, 19)
| DM (MN6, MX0) |
2008-2010 |
01 |
|
